Fiber-optic aptX Low Latencywireless CSR8670 aptX LL Bluetooth Audio transmitter Transceiver for TV

Fiber-optic aptX Low Latency Dual Stream wireless CSR8670 aptX LL Bluetooth Audio Transceiver for TV

1. Enables any audio device to transmit and receiver HD sound wirelessly

2. RX mode: stream high quality audio wirelessly from any Bluetooth enabled Smartphone, computer or tablet to any music system or powered speakers

3. TX mode: seamlessly stream Hi-Fi digital audio wirelessly from your TV or wired music system to your favorite pair of Bluetooth headphones or speakers

4. 33 feet (10 m) operating range allows freedom of movement

5. Conveniently draws power from the included micro USB charging cable that can be plugged into any powered USB port such as USB wall adapter, computer, or recent TVs and sound systems

6. Bluetooth 4.1 with aptX® aptX® LOW LATENCY and AAC codecs gives you uncompromising wireless sound, delivering full-range dynamic sound with crystal clarity

7. Features both digital and analog audio Inputs and outputs for the widest compatibility to a wide variety of devices (eg. old and new TVs, stereo systems, etc. )

8. Stream real-time audio to two Bluetooth headphones or speakers simultaneously without disturbing other people in the room

9. Small enough to adhere to your TV or home audio system with included sticky gel pad

Specification

1.Bluetooth version: 4.1 with aptX Low Latency

2.Bluetooth chipset: CSR 8670

3.Supported codecs: aptX, aptX Low Latency, AAC, SBC

4.Bluetooth range: up to 10 meters, 33 feet

5.Bluetooth profile: A2DP

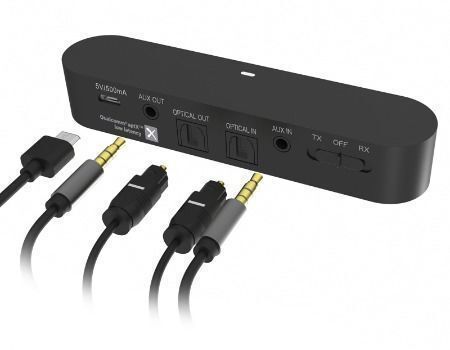

6.Output: TOSLINK Digital Optical Input & output

3.5mm AUX Input & Output

7.Input power: 5V DC, 500mA

8.Latency: ~ 40 milliseconds (ms)

9.Mounting options: sticky gel mounting strips

10.Included accessories:

TOSLINK digital optical audio cable

3.5mm AUX audio cable

3.5mm - RCA adapter

USB-Micro USB cable

USB power adapter

Sticky gel mounting strips

User guide

BTR02 operates either as a transmitter or a receiver. Switch easily between transmitter mode (TX) and receiver mode (RX) with the flick of a button located at the back of the device.

Transmitter Mode (TX)

In TX mode, BTR02 can wirelessly stream audio from a non-Bluetooth device (HDTV / Computer) to any Bluetooth audio receiver that supports the A2DP Bluetooth profile, such as a Bluetooth headphone, Bluetooth speaker, or dedicated A2DP receiver.

Receiver Mode (RX)

In RX mode, BTR02 enables wireless audio streaming from any Bluetooth enabled Smartphone, computer or tablet to any non-Bluetooth music system or powered speakers.

Included accessories:

• TOSLINK digital optical audio cable
• 3.5mm AUX audio cable
• 3.5mm - RCA adapter
• USB-Micro USB cable
• USB power adapter
• Sticky gel mounting strips
• User guide
