Fiber-optic Qualcomm aptX HD Bluetooth Transmitter And Receiver TV Adapter With PCM5102A DAC

Fiber-optic Qualcomm CSR8675 aptX HD Bluetooth Transmitter And Receiver TV Adapter With PCM5102A DAC

• BTR12HD is a portable adapter can be used as either transmitter or receiver, powered by the latest Bluetooth 5.0, can pair with two headphones/speakers at once.
• Bluetooth 5.0
  Featuring the latest Bluetooth 5.0 (CSR8675) and support for Qualcomm aptX HD, pick up any kind of music for you lossless and wireless. Simple switch to alternate between HD and low latency priority If your device supports both codecs.
• Audiophile Grade DAC
  Features the best in class true Hi-Fi 384kHz/32bit up-sampling audiophile DAC - PCM5102A by TI that sports a high SNR of 112dB and is well regarded for its impressive low noise and low distortion characteristics. In short, this means that the sound you hear is crystal clear, rich and retains a wonderfully full dynamic range.
• Optical + RCA
  Enables you get maximum flexibility with support for both RCA and optical digital, both input and output are supported
• High Definition Audio
  Supports Qualcomm aptX HD which is an enhanced audio codec that allows you to receive 48KHz/24-bit audio via Bluetooth and has been engineered to improve the signal-to-noise ratio, resulting in lower background noise. It preserves sound data through the audio transmission, resulting in a 'better-than-CD' listening experience
• Extended Long Range
  Utilizing latest Bluetooth technology and designed with dual antennas, BTR12HD Bluetooth transmitter receiver can achieve a range of up to 116ft-132ft (35-40m) indoors.
• Dual Link No Delay
  Qualcomm aptX Low Latency technology eliminates Bluetooth audio delay, so you can watch TV / Movie / Video in perfect synchronization.
  Dual link feature of BTR12HD Bluetooth adapter also enables simultaneous streaming to 2 headphones or speakers.

Main features:

• Transmitter + ReceiverOne portable adapter to use as either transmitter or receiver, powered by the latest Bluetooth 5.0, can pair with two headphones/speakers at once.
• Bluetooth 5.0Featuring the latest Bluetooth 5.0 (CSR8675) and support for Qualcomm aptX HD, pick up any kind of music for you lossless and wirelessly. Simple switch to alternate between HD and low latency priority If your device supports both codecs.
• Audiophile Grade DACFeatures the best in class true Hi-Fi 384kHz/32bit up-sampling audiophile DAC - PCM5102A by TI that sports a high SNR of 112dB and is well regarded for its impressive low noise and low distortion characteristics. In short, this means that the sound you hear is crystal clear, rich and retains a wonderfully full dynamic range.

◎ Optical + RCA

Enables you get maximum flexibility with support for both RCA and optical digital, both input and output are supported.

◎ High Definition Audio

Supports Qualcomm aptX HD which is an enhanced audio codec that allows you to receive 48KHz/24-bit audio via Bluetooth and has been engineered to improve the signal-to-noise ratio, resulting in lower background noise. It preserves sound data through the audio transmission, resulting in a ‘better-than-CD’ listening experience

◎ Dual Link No Delay

Qualcomm aptX Low Latency technology eliminates Bluetooth audio delay, so you can watch TV / Movie / Video in perfect synchronization.

Dual link feature of BRX01 HD Dual Bluetooth adapter also enables simultaneous streaming to 2 headphones or speakers.

◎ Extended Long Range

Utilizing latest Bluetooth technology and designed with dual antennas, BRX01 HD Dual Bluetooth transmitter receiver can achieve a range of up to 116ft-132ft (35-40m) indoors.

◎ User Friendly Design

Easy setup, connects in seconds. No App or wireless router network required.

Works as Transmitter

Use BTR12HD as a Bluetooth Transmitter to Bluetooth-enable your TV, AV Receiver, Radio and other home audio source devices to stream music to your Bluetooth headphones or speakers.

Works as Receiver

BTR12HD is a premium Hi-Fi Bluetooth Receiver that streams the highest quality audio wirelessly from your phone, tablet or computer to any home stereo system. Easy setup, connects in seconds.

Specification

◎ Bluetooth version: Bluetooth V5.0

◎ Supported codec: aptX HD, aptX LL, aptX, AAC, SBC

◎ Bluetooth range: 40 meters, 132 feet

◎ Input: Bluetooth, Stereo Analog RCA, Digital optical (SPDIF)

◎ Outputs: Stereo Analog RCA, Digital optical (SPDIF)

◎ Input power: 5V,200 mA

◎ Output voltage: 2.1 Volts RMS

◎ Output impedance: 57 Ohms

◎ Digital to Analog Converter (DAC): PCM5102A

◎ Frequency response: 10Hz-20kHz(+/- 0.5dB)

◎ Signal to noise ratio: 112dB

◎ Total Harmonic distortion: -93dB

◎ PCM support: 384kHz/32bit

◎ Enclosure: Aluminum

◎ Included Accessories

RCA-RCA audio cable

3.5mm-RCA splitter cable

Type C charging cable

User manual

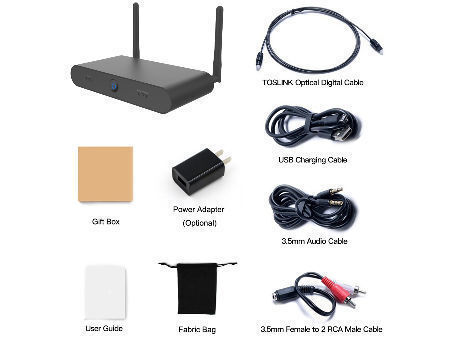

Contents

1. Bluetooth transceiver BTR12HD

2. Optical cable

3. RCA cable

4. Type C charging cable

5. Fabric bag

6. Power adapter (Optional)

7. User manual

8. Gift box

FQA:

Q: How does active noise cancellation work?

Our ANC headsets have built-in noise cancelling technology that precisely detects the ambient low frequency sound via microphones and generate a waveform that is the exact negative of the ambient sound to reduce (or in a way, cancel) the ambient noise.

Q: What benefit do I get if I wear active noise cancelling headphones?

Studies have found that noise does harm to our health by affecting our body hormones and structure of our blood vessels, which increased the risk for high blood pressure, heart attacks and stroke. Thus, noise control is a must for both mental and physical health.

Q: What's your payment term?

Welcome to place orders to us. Normally 30% T/T as depoist and balance against shipment.

Q: Are you a manufacturer or a trading company?

16-year history ISO9001:2015 certified manufacturer, located in Bao’an, Shenzhen China.

Our factory has been in the line of wireless & ANC audio products for over 10 years with plenty skilled workers.

Q: Can I customize the product, such as to print our own logo or make a new design?

Yes, we offer OEM/ODM service. Please contact us to check the details.

Q: How do you ship the goods?

We send the sample to you via DHL, UPS, FedEx, TNT, EMS, SF express and other ways required by you.

And we arrange the bulk shipment by sea or by air as required.

Q: What is the lead time of sample order and bulk order?

It depends on the quantity and your order requirements.Usually it takes 1 to 5 working days for sample order, 25-30 working days for initial bulk order

Q: What kind of packaging do you offer?

Our standard package for sample is white box or brown box. For mass production, customized package is available.

Q: What is your quality warranty?

12 months

Q:Can I visit your company and factory?

Sure. Welcome to visit our company and factory.

If you need more information about our products, please don’t hesitate to contact us.
