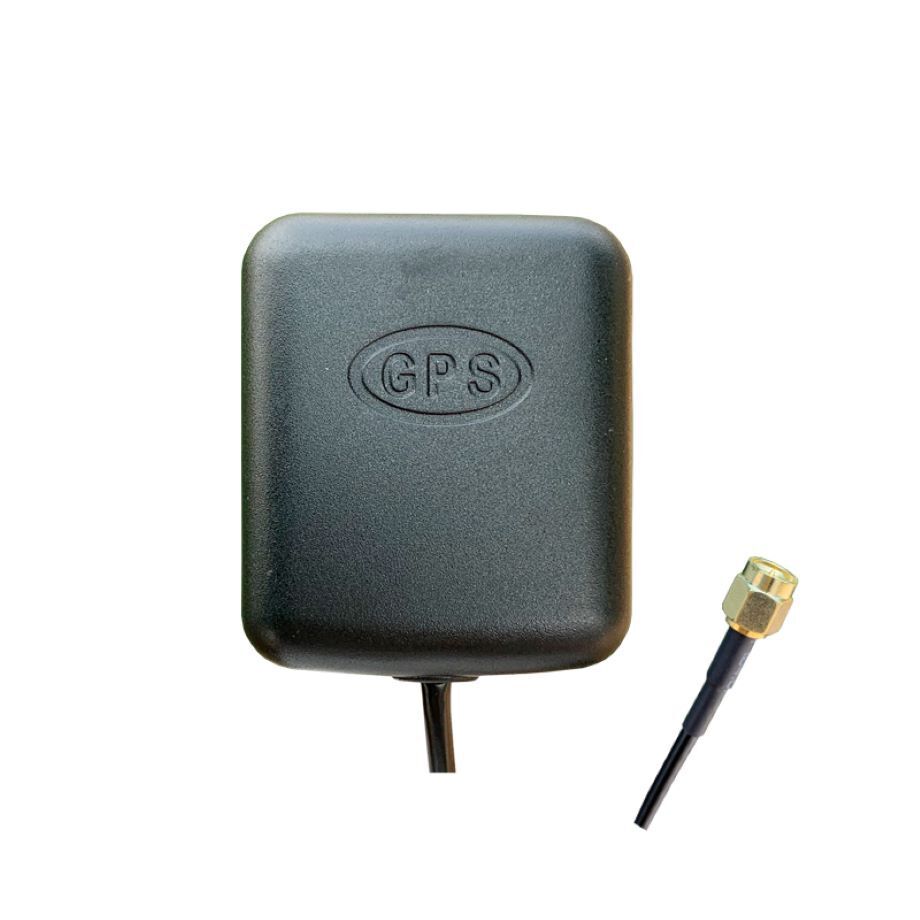

GPS Active External Magnetic Car Antenna With 3mts Cable
Product Information
Model Number
AC-GPS-07-2
Brand Name
AC
Origin
China
Small Orders
Accepted
Key Specifications/ Special Features
| Electrical | ||
| Antenna | Frequency Range | 1575.42MHz±3MHz |
| Band Width | CF±5MHz | |
| V.S.W.R | ＜1.5 | |
| Polarization Type | RHCP | |
| Gain | 2dBic(Zenith) | |
| Impedance | 50Ώ | |
| LNA | Axial Ratio | 3dB(max) |
| Dimension | 25*25*4mm | |
| Gain | 28±2 dB Typical | |
| Noise Figure | <1.5dB | |
| DC Voltage | 2.2-5.0V | |
| DC current | 5-15mA | |
| Mechanical | V.S.W.R | ＜2.0 |
| Housing | Black | |
| Cable | RG174 | |
| Length | 3M(Can be customized) | |
| Connector | SMA Male(Can be customized) | |
| Antenna Radome Material | ABS | |
| Mount way | Magnetic/Adhesive | |
| Environmental | Dimensions | 44x38x13mm |
| Weight | 46g | |
| Operating Temperature | -40℃~+80℃ | |
| Humidity | UP to 95% | |
| Waterproof | IP65-67 | |
| RoHS Compliant | YES |
| Electrical | ||
| Antenna | Frequency Range | 1575.42MHz±3MHz |
| Band Width | CF±5MHz | |
| V.S.W.R | ＜1.5 | |
| Polarization Type | RHCP | |
| Gain | 2dBic(Zenith) | |
| Impedance | 50Ώ | |
| LNA | Axial Ratio | 3dB(max) |
| Dimension | 25*25*4mm | |
| Gain | 28±2 dB Typical | |
| Noise Figure | <1.5dB | |
| DC Voltage | 2.2-5.0V | |
| DC current | 5-15mA | |
| Mechanical | V.S.W.R | ＜2.0 |
| Housing | Black | |
| Cable | RG174 | |
| Length | 3M(Can be customized) | |
| Connector | SMA Male(Can be customized) | |
| Antenna Radome Material | ABS | |
| Mount way | Magnetic/Adhesive | |
| Environmental | Dimensions | 44x38x13mm |
| Weight | 46g | |
| Operating Temperature | -40℃~+80℃ | |
| Humidity | UP to 95% | |
| Waterproof | IP65-67 | |
| RoHS Compliant | YES |
