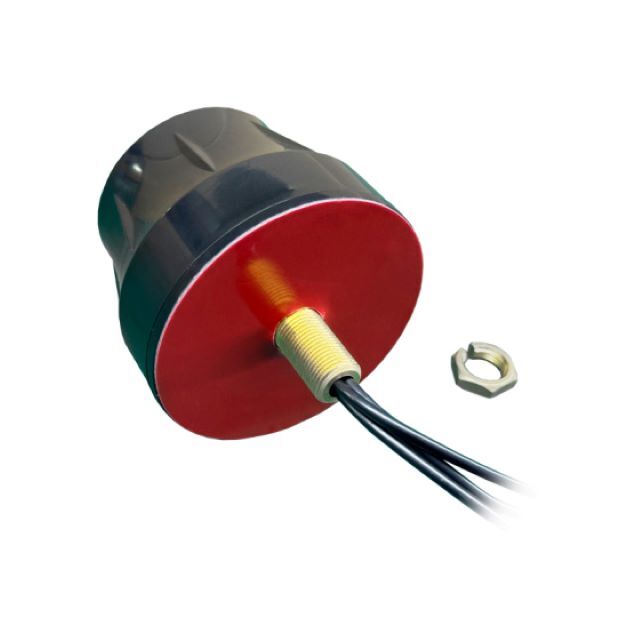

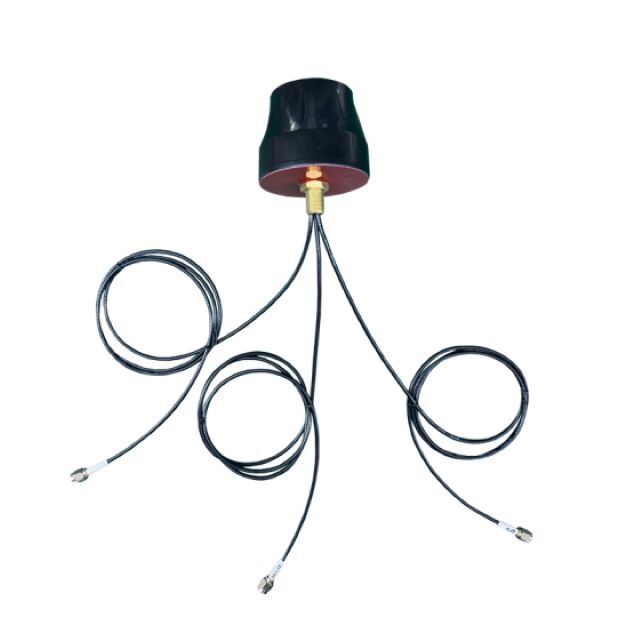

GPS GLONASS LTE 3 in 1 Combination Antenna IP67 Screw Mount
Product Information
Model Number
AC-GPS(GLONASS)/LTE2-DHB-1
Origin
China
Small Orders
Accepted
Key Specifications/ Special Features
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 3-3.5dBi | |
| V.S.W.R | <1.5 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| LTE Part: | Frequency range | 2x698-960/1710-2700MHz |
| V.S.W.R | <3.0 | |
| Gain | 2x3dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 3xRG174 | |
| Length | 3x3M or can be customization | |
| Connector | 3xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+85℃ | |
| Humidity | 65%-95%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw | |
| Antenna Dimension | Φ70x53mm | |
| Weight | 940g | |
| RoHS Compliant | YES | |
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 3-3.5dBi | |
| V.S.W.R | <1.5 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| LTE Part: | Frequency range | 2x698-960/1710-2700MHz |
| V.S.W.R | <3.0 | |
| Gain | 2x3dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 3xRG174 | |
| Length | 3x3M or can be customization | |
| Connector | 3xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+85℃ | |
| Humidity | 65%-95%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw | |
| Antenna Dimension | Φ70x53mm | |
| Weight | 940g | |
| RoHS Compliant | YES | |
