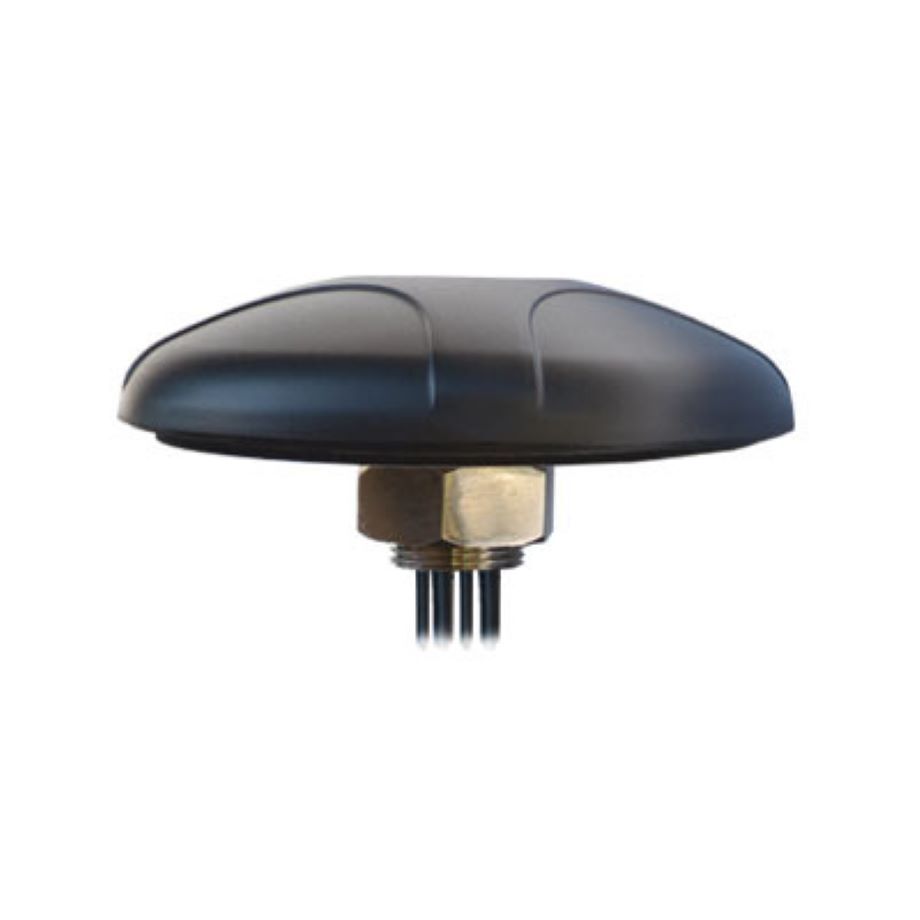

GPS Glonass LTE Wi-Fi 3-in-1 Combination Antenna

Electrical:

GPS (Glonass) part:

Frequency range: 1575.42 ±3MHz/1602-1610MHz

VSWR: 2.5

Polarization type: RHCP

Impedance: 50Ω

LNA gain: 28 ±2dB typical

Noise figure: 1.5dB

VSWR: <2.0

DC voltage: 2.2-5.0V

DC current: 5-15mA

Wi-Fi part:

Frequency range: 2.4/5GHz

VSWR: 2.5

Gain: 3dBi

Polarization: linear

Impendence: 50Ω

LTE part:

Frequency range: 698-960, 1710-2700MHz

VSWR: 2.0:1

Gain: 3dBi

Mechanical:

Housing: black

Cable: RG316/RG178/RG174/RG58U (can be customization)

Length: 3/5m (can be customization)

Connector: SMA male (can be customization)

Working temperature: -40 to +85°C

Humidity: 55-75%RH

Waterproof: IP67

Antenna radiomen material: ABS

Mount way: screw

Antenna dimensions: Ф143.6x65mm

Weight: 1.2kg
