Global Sources Hong Kong Shows/Product List/New 698-3800MHz 5G LTE Omni Directional MIMO Outdoor Antenna

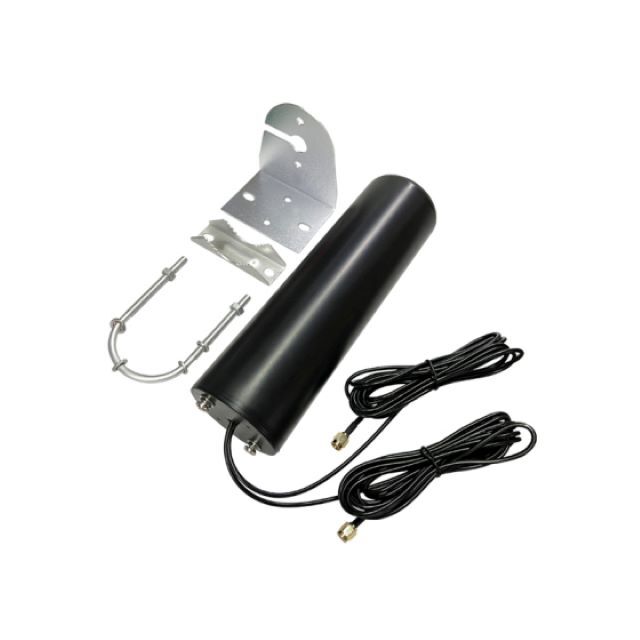

New 698-3800MHz 5G LTE Omni Directional MIMO Outdoor Antenna
Product Information
Model Number
AC-Q7038F03DBX2
Brand Name
AC
Origin
China
Small Orders
Accepted
Key Specifications/ Special Features
| Electrical | |
| Frequency Range | 698-960/1710-3800MHzX2 |
| Gain | 4/5dBi |
| V.S.W.R | ≤1.8@698-960;≤1.5@1710-3800MHz |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 18° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Cable Type | RG174 |
| Cable Length | 3Mts |
| Connector | SMA MaleX2 |
| Antenna Radome Material | ABS |
| Mounting way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ63x220mm |
| Weight | 330g |
| Operating Temperature | -40℃ to+80℃ |
| Rated wind velocity(m/s) | 60m/s |
| RoHS Compliant | YES |
| Electrical | |
| Frequency Range | 698-960/1710-3800MHzX2 |
| Gain | 4/5dBi |
| V.S.W.R | ≤1.8@698-960;≤1.5@1710-3800MHz |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 18° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Cable Type | RG174 |
| Cable Length | 3Mts |
| Connector | SMA MaleX2 |
| Antenna Radome Material | ABS |
| Mounting way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ63x220mm |
| Weight | 330g |
| Operating Temperature | -40℃ to+80℃ |
| Rated wind velocity(m/s) | 60m/s |
| RoHS Compliant | YES |
