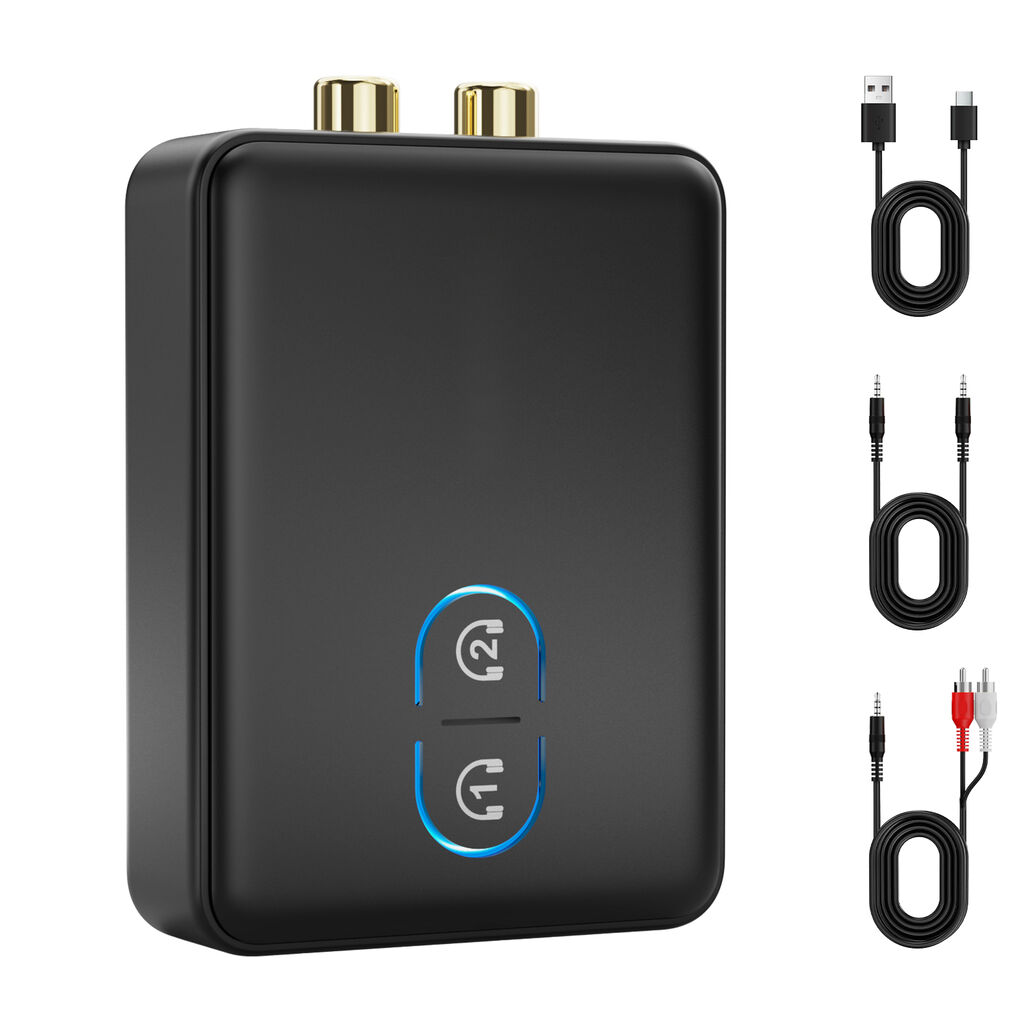

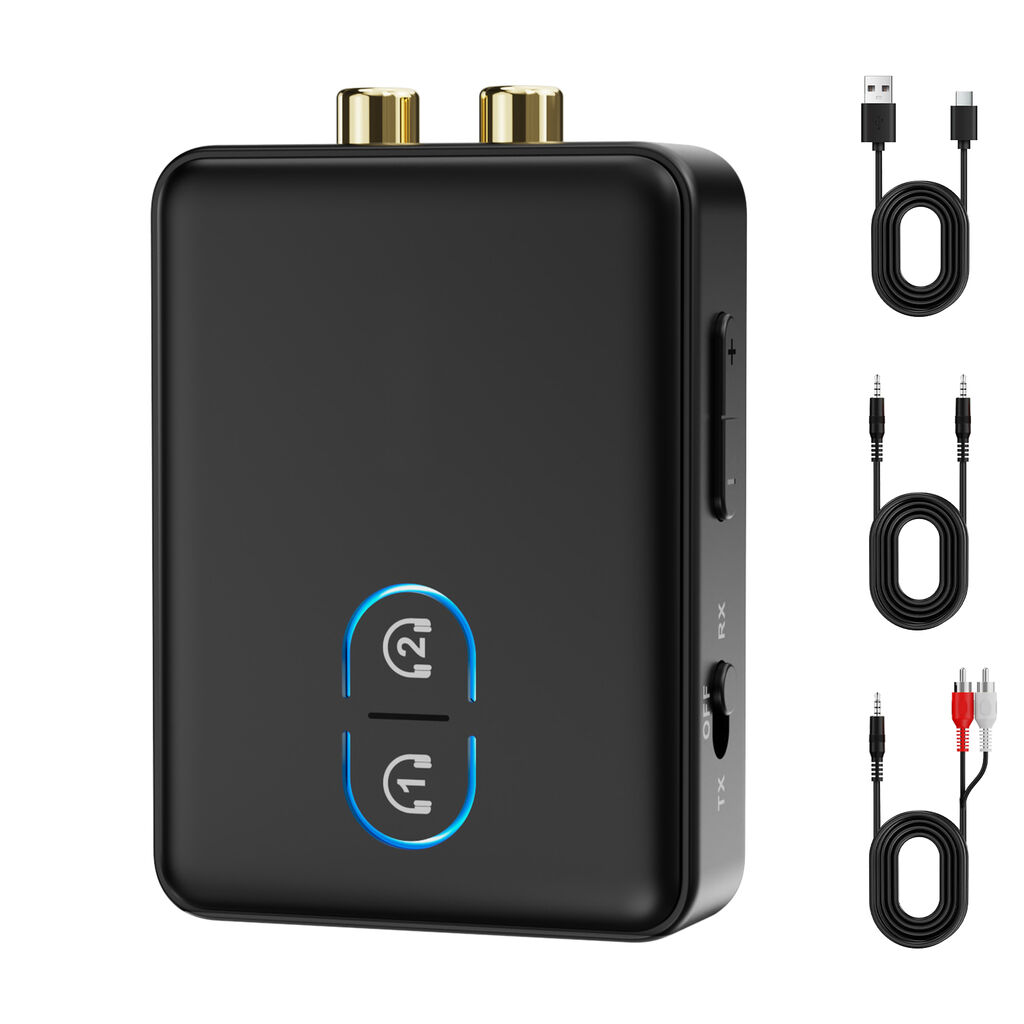

OEM/ODM ML302 Bluetooth Transceiver Bluetooth 5.2, supports 1-to-2 SBC/AAC/aptX/aptX-LL/aptx-HD For TVs, Audio Systems

Model: ML302

Main Chip: QCC3040

Bluetooth Version: Bluetooth 5.2

Max TX Input: 1Vrms

Max RX Output: 1Vrms

Frequency Response: 20Hz~20kHz

THD+N: 0.10%

SNR: ＞90dB

Battery Type: 502035-300mAh; wire length 30mm

Battery Capacity: 300mAh

Charging Current: 150mA

Charging Time: 2H

Working Time: ＞18H

Power Supply: Type-C

Operating Voltage: 5V

Operating Current: ＜200mA

Bluetooth Codec: SBC/AAC/aptX/aptX-LL/aptX-HD/aptX-AD

(LL not supported in RX mode; AAC not supported in TX mode)

Output Port: 3.5mm AUX

Input Port: 3.5mm AUX

Effective Range: ＞15m

Pairing Name: ML302

Certifications: CE, RoHS, FCC, KC

Operating Temperature: -10 ~ +40 ℃

Storage Temperature: -20 ~ 60 ℃

IN the box

USB A Male to Type-C Male Power Cable: 1pcs

3.5mm Male to 3.5mm Male Audio Cable: 1pcs

3.5mm Female to RCA Male Audio Cable: 1pcs

User Manual: 1pcs

3.5mm Male to 3.5mm Male: 1pcs
