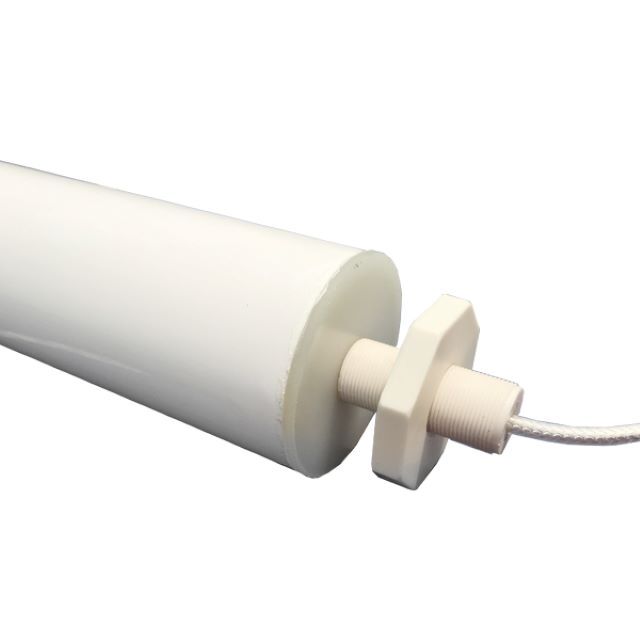

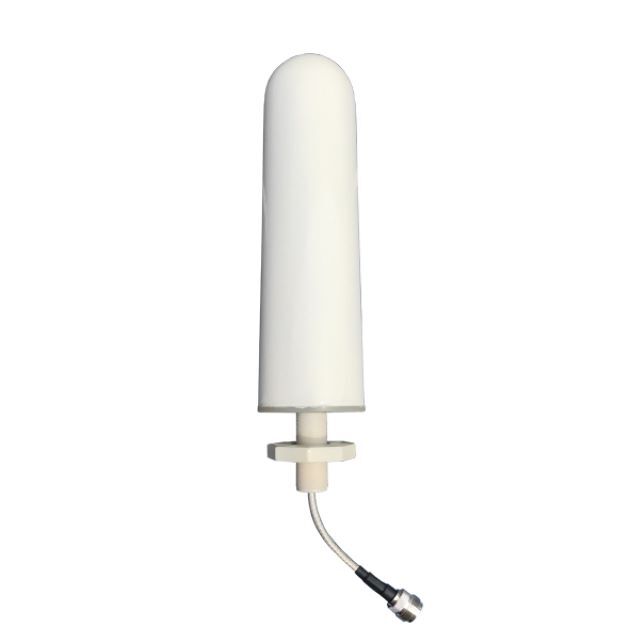

Omni fiberglass outdoor screw mounting 3G marine antenna
Product Information
Model Number
AC-Q8025F03A
Brand Name
AC
Origin
China
Small Orders
Accepted
Key Specifications/ Special Features
| Electrical | |
| Frequency Range | 800-960 / 1710-2500MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG142 |
| Cable Length | 30cm |
| Antenna Radome Material | Fiberglass |
| Mount way | Bracket Mounting |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ63x230mm |
| Weight | 500g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Electrical | |
| Frequency Range | 800-960 / 1710-2500MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG142 |
| Cable Length | 30cm |
| Antenna Radome Material | Fiberglass |
| Mount way | Bracket Mounting |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ63x230mm |
| Weight | 500g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
