Paintable Car Front Wireless Parking Assist 22mm Outer Plug in 4 Sensors GPS Speed Control Activated Below 15km/h LCD display
Product Information
Key Specifications/ Special Features
Paintable Car Front Wireless Parking Assist System 22mm Outer Plug in 4 Sensors GPS Speed Control Activated Below 15km/h Safe driving System

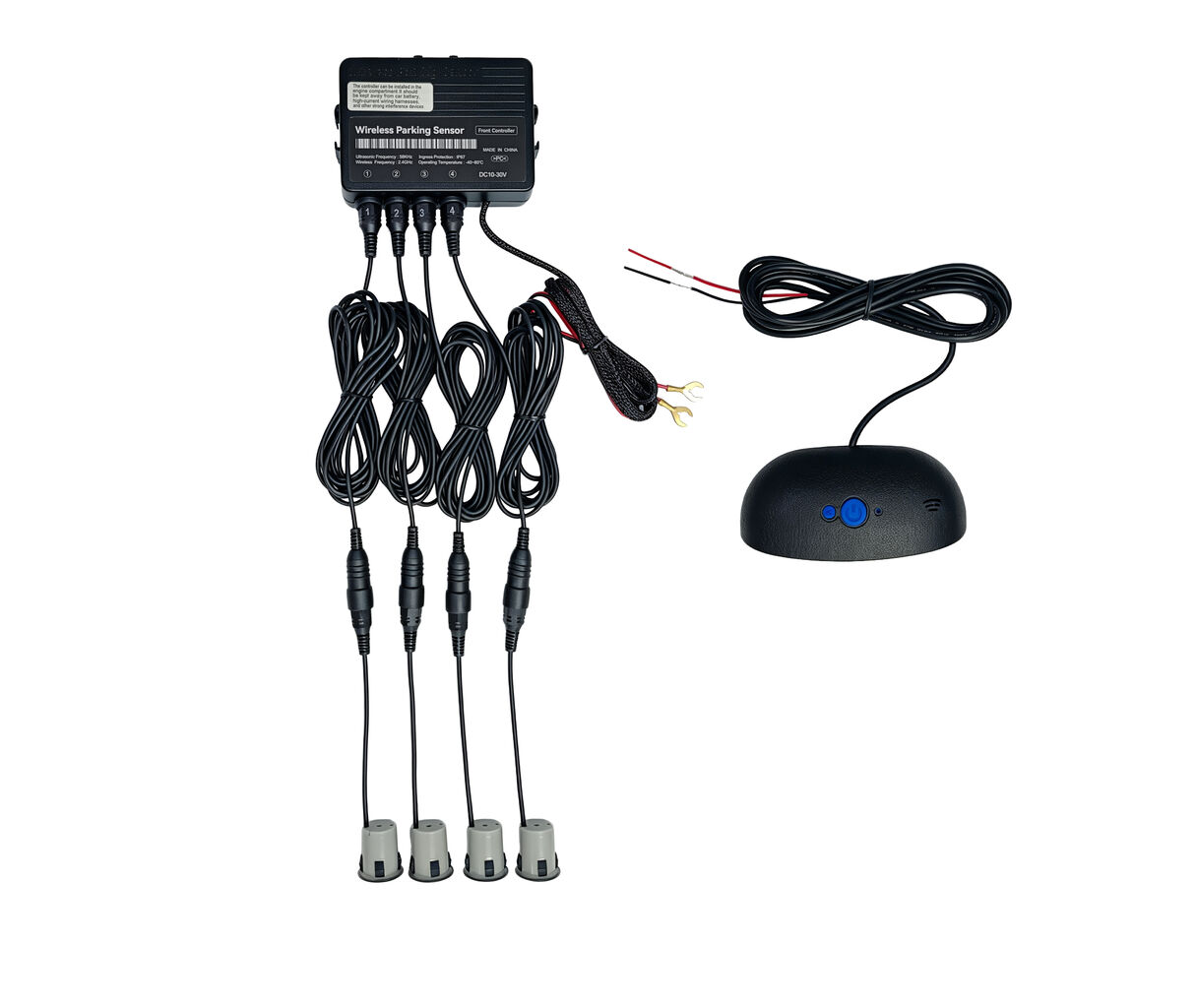

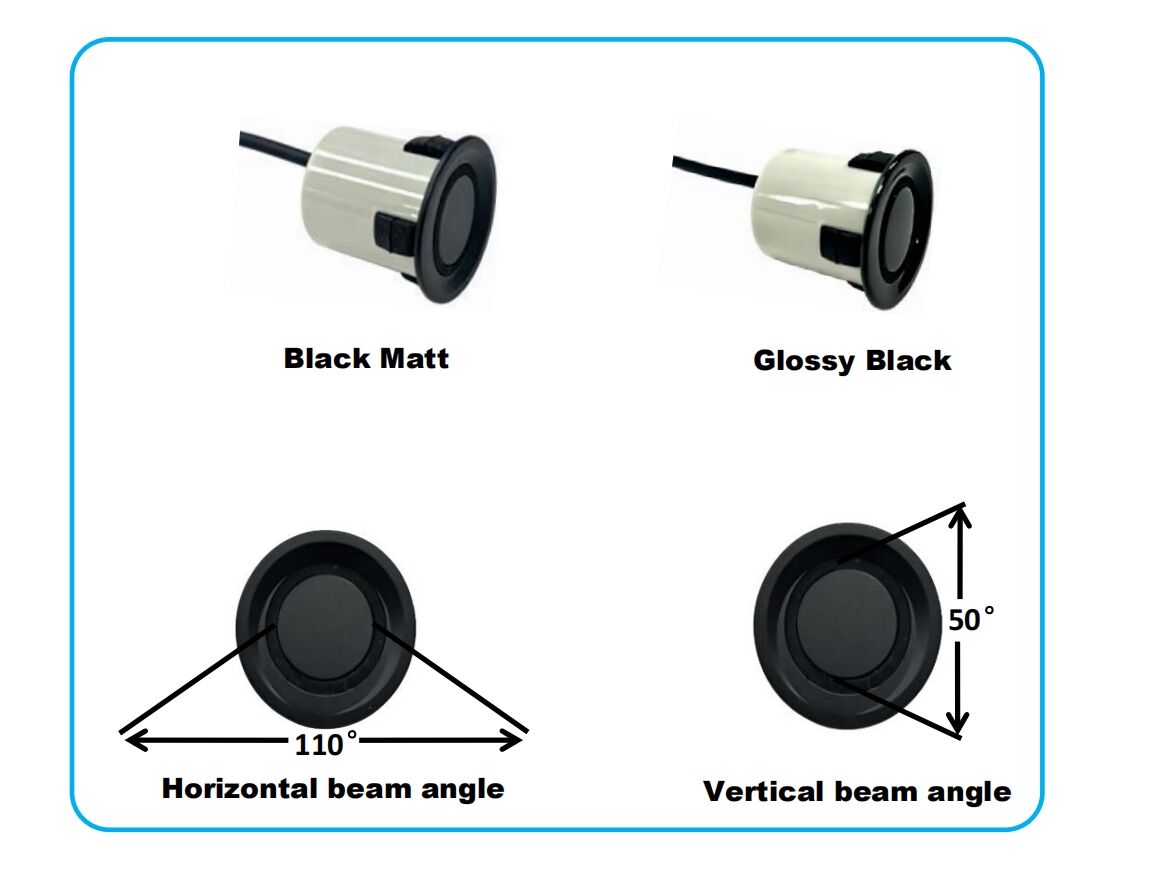

4 * Ф22mm Front Sensors (cable lenth: 0.15meter+2.4meters) + Front ECU Controller (waterproof and high temperature resistant) + LCD Display with built-in GPS module for GPS speed control (when speed below 15km/h, system start to work), with volume button for 0-8 levels volume adjustment, suppor mute.
Standby Current: 0.35mA

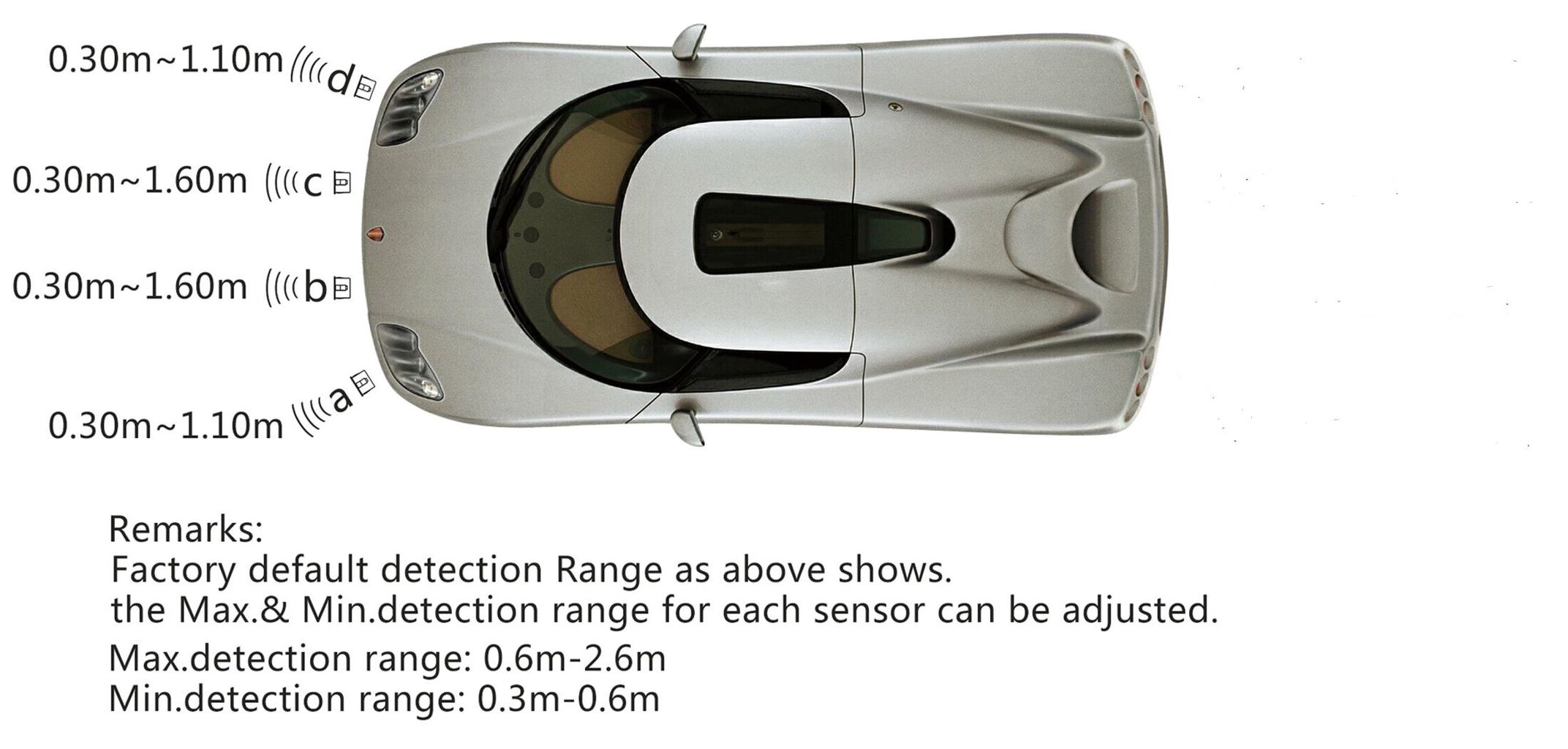

Detecting Distance: 0.30m-2.60m
Ultrasonic Frequency: 58KHz
Maximum power consumption: 3.5W
Operating Voltage: DC10-30V
working Ambient Temperature: -40°C ~ +80 °C

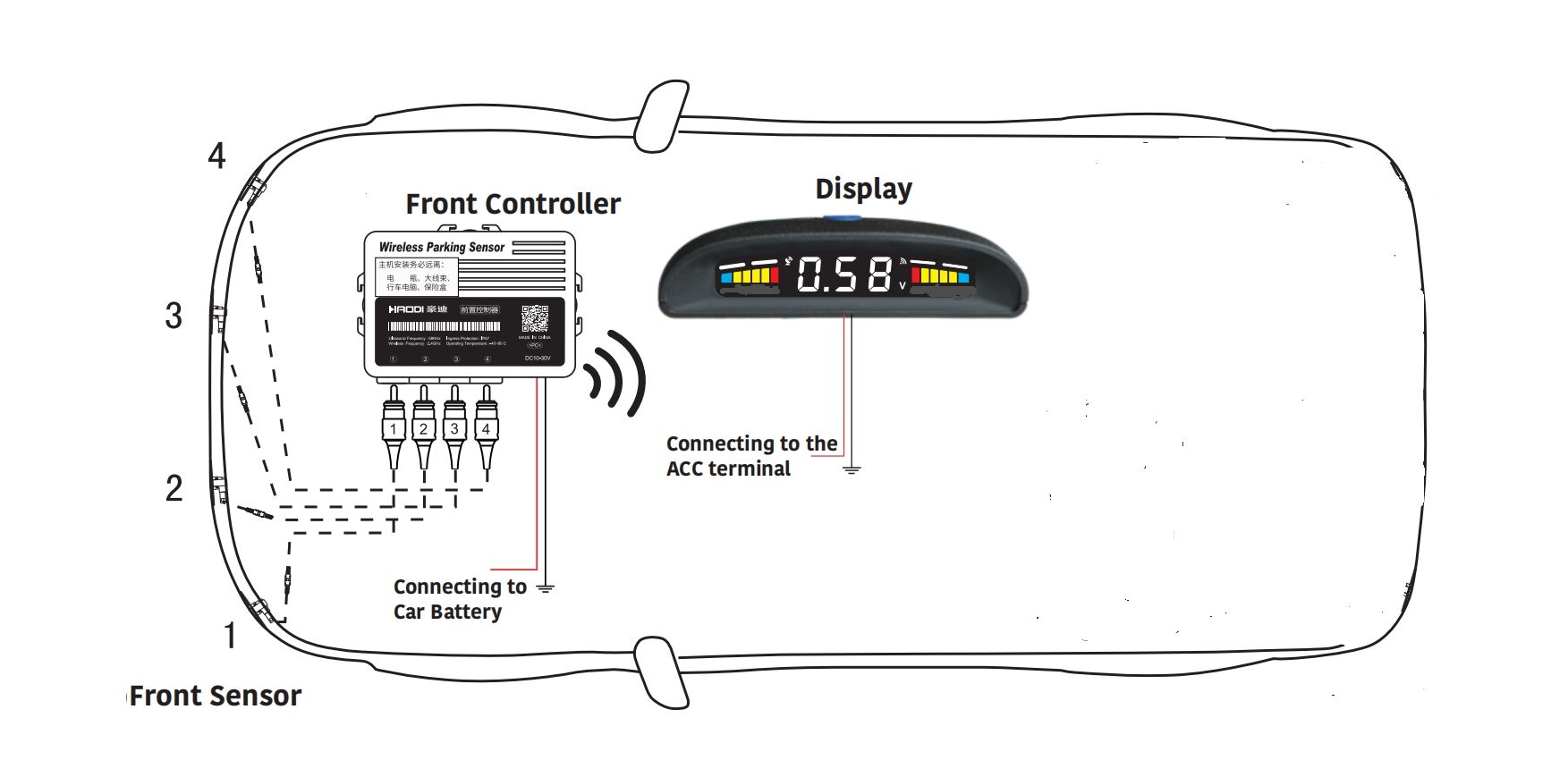

Our Wireless front parking sensor do not require cables to be run through the firewall, so the installation is much faster and easier with far less risk of grommet damage, the ECU is installed in the engine bay and the + & – power wires can be connected directly to the fuse box or the battery terminals, without looking for ACC, because the static current of the front controller is less than 0.35mA.

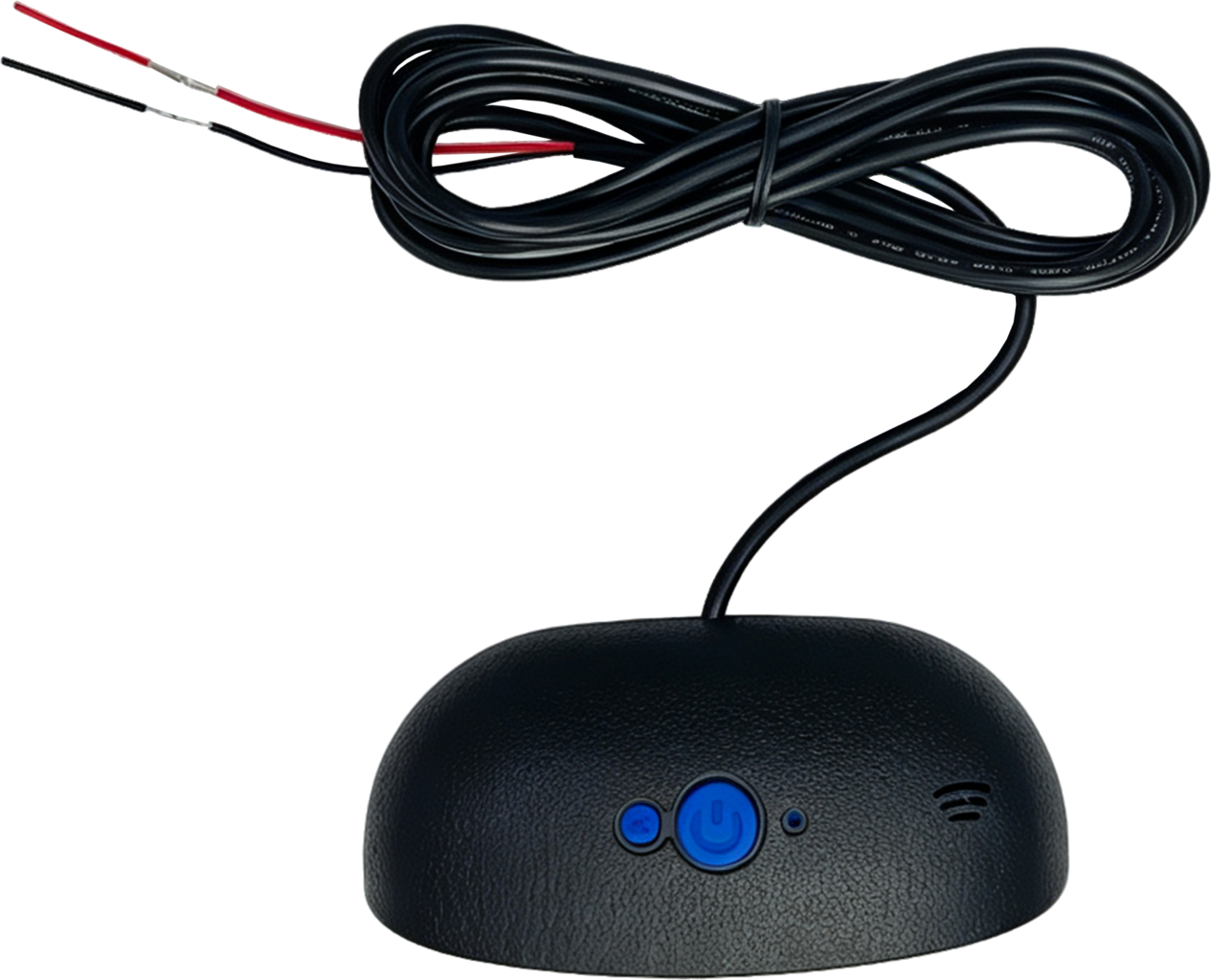

The dash mounted display features voltage, object, distance & direction, also features adjustable beeper volume.
And the farthest detection range we can reach 2.60 meters.
Paintable Car Front Wireless Parking Assist System 22mm Outer Plug in 4 Sensors GPS Speed Control Activated Below 15km/h Safe driving System
4 * Ф22mm Front Sensors (cable lenth: 0.15meter+2.4meters) + Front ECU Controller (waterproof and high temperature resistant) + LCD Display with built-in GPS module for GPS speed control (when speed below 15km/h, system start to work), with volume button for 0-8 levels volume adjustment, suppor mute.
Standby Current: 0.35mA
Detecting Distance: 0.30m-2.60m
Ultrasonic Frequency: 58KHz
Maximum power consumption: 3.5W
Operating Voltage: DC10-30V
working Ambient Temperature: -40°C ~ +80 °C
Our Wireless front parking sensor do not require cables to be run through the firewall, so the installation is much faster and easier with far less risk of grommet damage, the ECU is installed in the engine bay and the + & – power wires can be connected directly to the fuse box or the battery terminals, without looking for ACC, because the static current of the front controller is less than 0.35mA.
The dash mounted display features voltage, object, distance & direction, also features adjustable beeper volume.
And the farthest detection range we can reach 2.60 meters.
