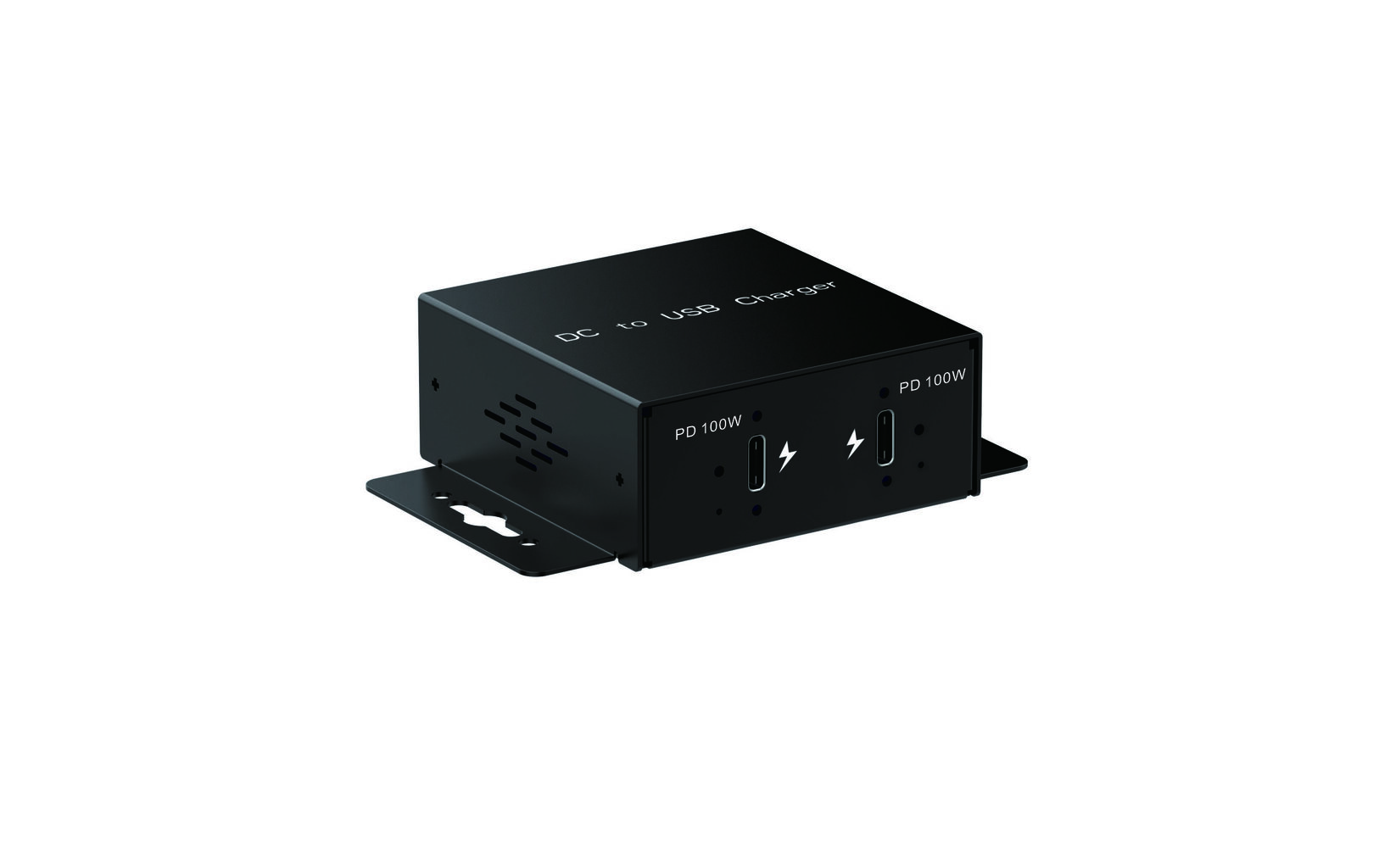

USB-C PD 2-Port Industrial Mini Charger, Total output 200W, ESD And Surge Protection
Product Information
Key Specifications/ Special Features
Product Name: USB-C PD 2-Port Industrial Mini Charger, Total output 200W
Model No.: AOK-PWR2C-200
Features:
1. Compact Industrial Design: Features a robust metal housing
2. Broad Application Range: Ideal for PC power adapters, portable chargers, car chargers and power banks.
3. Flexible Installation: Supports screw-fixed installation on walls, desktops, and other surfaces.
4. Advanced Compliance: Equipped with a highly integrated USB-C port controller compliant with the latest USB-C and Power Delivery (PD) standards.
5. Multiple output power options and available in multiple variants supporting 1-2 USB Type-C ports, and 1 USB Type-A and 1 Type-C PD charging port.
6. Wide Input & Safetty Protection: Accepts 9-24V DC input and includes over-current, over-voltage, and ESD protection.
7. Fast Charging Protocols: Supports USB PD 3.0 and QC 4.0 for rapid charging compatibility.
8. Secure Connection: Incorporates a USB-IF standard screw-lock mechanism to ensure a reliable, secure connection.
9. Versatile Power Input: Can be connected via a 2-pin connector to standard 12V automotive or 24V industrial power inputs, and also supports 12V-24V DC5525 input.
Note: The rated power of the DC power source must be higher than the total output power of the charger.
Package:
1. Charger
2. Instruction Manual
3. Mounting screws
4. The default version does not come with a power adapter (power adapter specification DC5.5*2.5mm 12V-24V, power input needs to be higher than the total power output)
Product Name: USB-C PD 2-Port Industrial Mini Charger, Total output 200W
Model No.: AOK-PWR2C-200
Features:
1. Compact Industrial Design: Features a robust metal housing
2. Broad Application Range: Ideal for PC power adapters, portable chargers, car chargers and power banks.
3. Flexible Installation: Supports screw-fixed installation on walls, desktops, and other surfaces.
4. Advanced Compliance: Equipped with a highly integrated USB-C port controller compliant with the latest USB-C and Power Delivery (PD) standards.
5. Multiple output power options and available in multiple variants supporting 1-2 USB Type-C ports, and 1 USB Type-A and 1 Type-C PD charging port.
6. Wide Input & Safetty Protection: Accepts 9-24V DC input and includes over-current, over-voltage, and ESD protection.
7. Fast Charging Protocols: Supports USB PD 3.0 and QC 4.0 for rapid charging compatibility.
8. Secure Connection: Incorporates a USB-IF standard screw-lock mechanism to ensure a reliable, secure connection.
9. Versatile Power Input: Can be connected via a 2-pin connector to standard 12V automotive or 24V industrial power inputs, and also supports 12V-24V DC5525 input.
Note: The rated power of the DC power source must be higher than the total output power of the charger.
Package:
1. Charger
2. Instruction Manual
3. Mounting screws
4. The default version does not come with a power adapter (power adapter specification DC5.5*2.5mm 12V-24V, power input needs to be higher than the total power output)
