Wholesale Wireless car Front and Rear 58KHz 8 Ultrasonic Parking Sensors System with Protocol box integrated into Android unit

Wireless car Front and Rear 58KHz 8 Ultrasonic frequency Parking Sensors Park Assist System with Protocol box integrated into Android unit

Features:

1. Front parking sensor with GPS Speed control, when speed below 15KM/h, it activate the system to work.

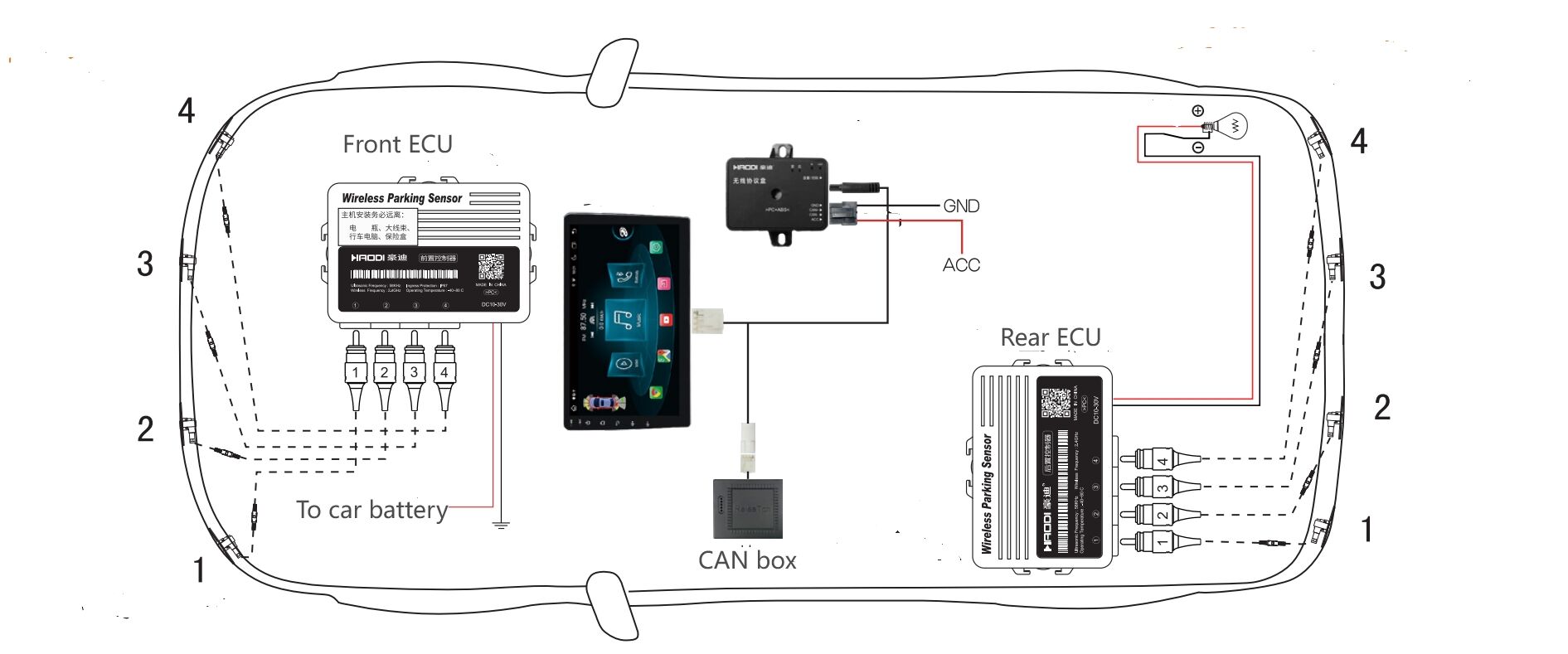

2. Protocol box with 2 x 8pin jack, 1 to Android unit, 1 to CAN box if have it

3. Protocol/Speaker with 0-8 levels volume setting.

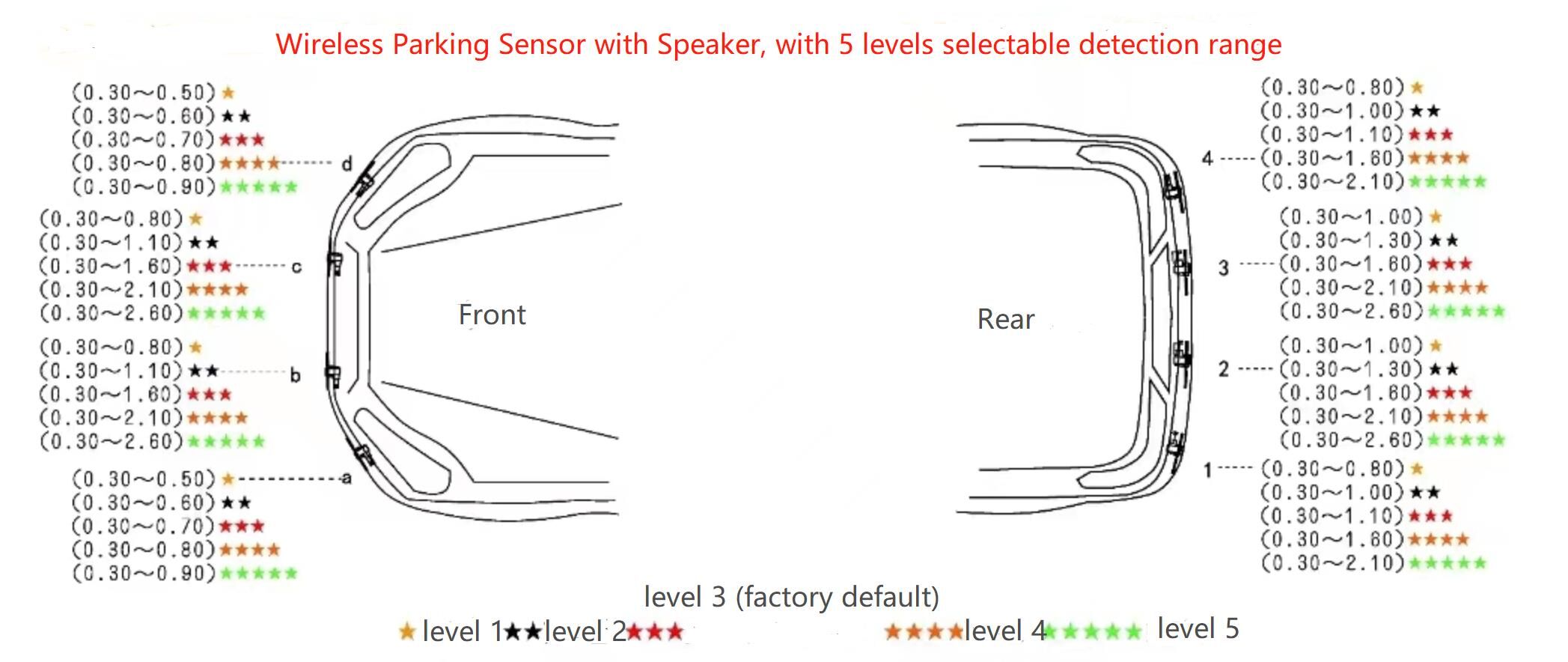

4. With 5 kinds of detection range for your choice.

Front Detecting Distance: 0.30m-2.60m

Rear Detection Distance: 0.30m-2.60m

5. Waterproof & high temperature resistant Front ECU main controller, can get power from car battery in engine cabin directly, because the static current of the front controller is less than 0.35mA.

6. Wireless transmission, No cable connection between the Speaker & ECU, easy installation, save labor cost for installation.

Technical Parameters:

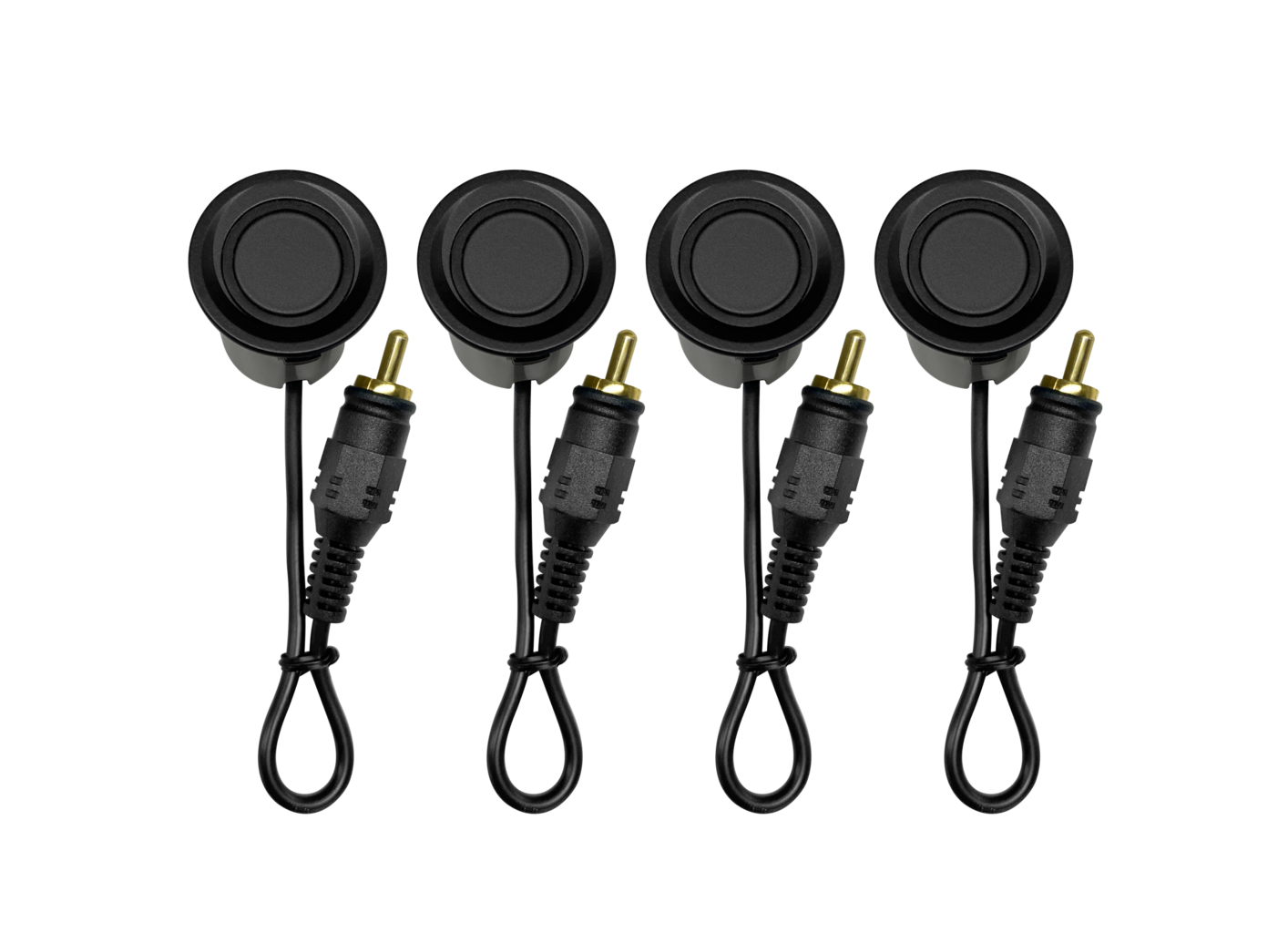

1. With 8 x Ф16.5mm 58KHz Sensors with waterproof cable & connectors (IP67)

2. Sensor cable length: 0.15meters+2.4meter

3. Wireless Frequency: 2.4GHz

4. Frong parking sensor standby current: 0.35mA

5. Detecting Distance: 0.30m-2.60meters

6. Ultrasonic Frequency: 58KHz

7. Maximum power consumption: 2W

8. Operating Voltage: DC10~30V

9. Working Ambient Temperature: -40°C ~ +80 °C
