Wireless Car Front 58KHz 4 outer plug-in Ultrasonic Parking Sensors Park Assist System with Speaker Buzzer Audible Alarm

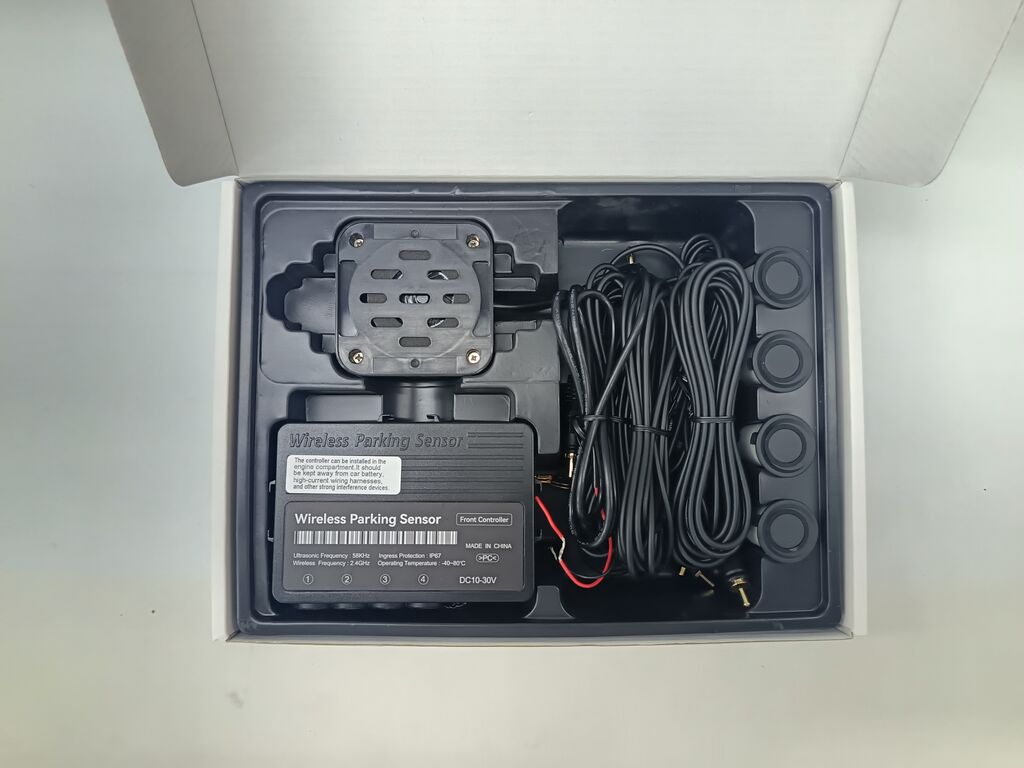

Wireless Car Front 58KHz 4 Outer plug in Ultrasonic Sensors Kit Parking Assist System with Speaker Audible Alarm front bumper

Features:

1. Front parking sensor with GPS Speed control, when speed below 15KM/h, it activate the system to work.

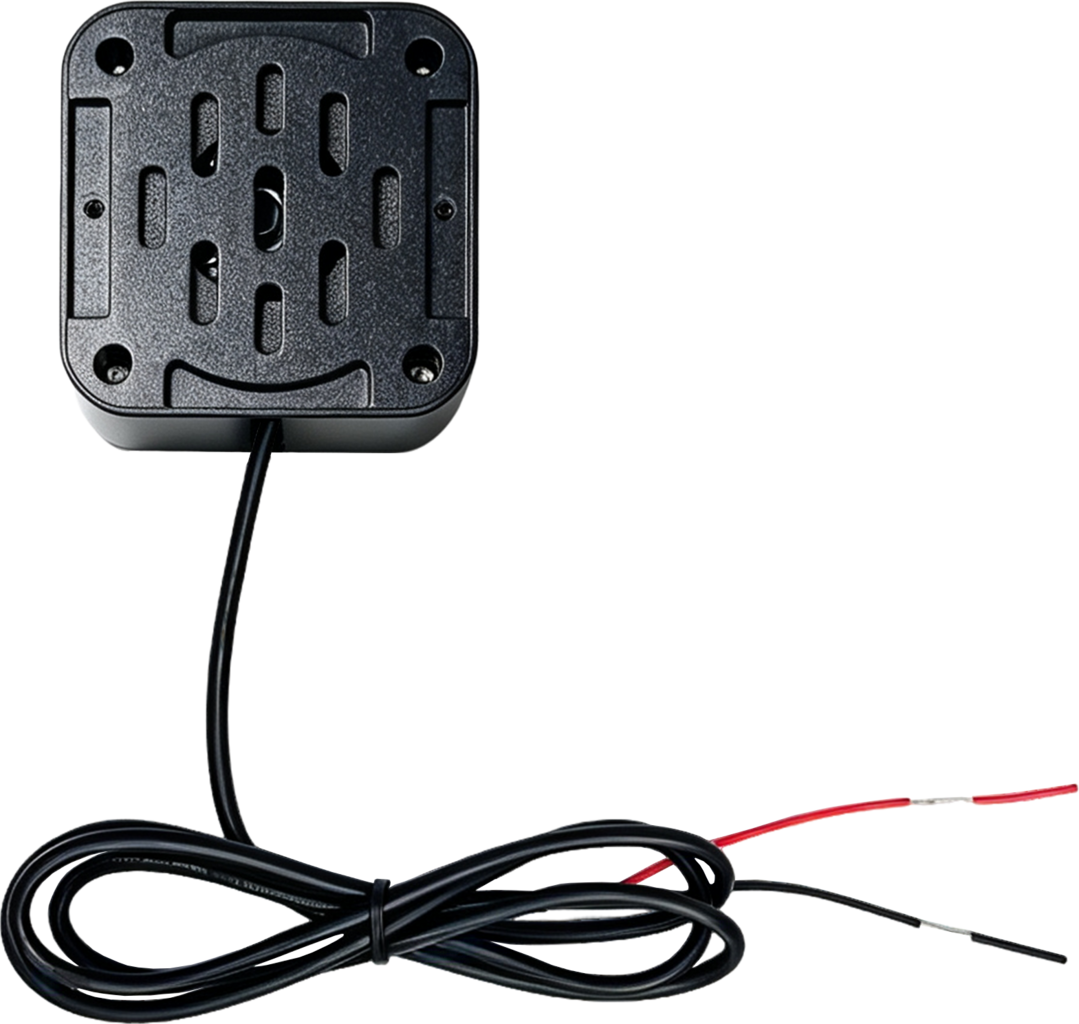

2. Speaker with 0-8 levels volume setting.

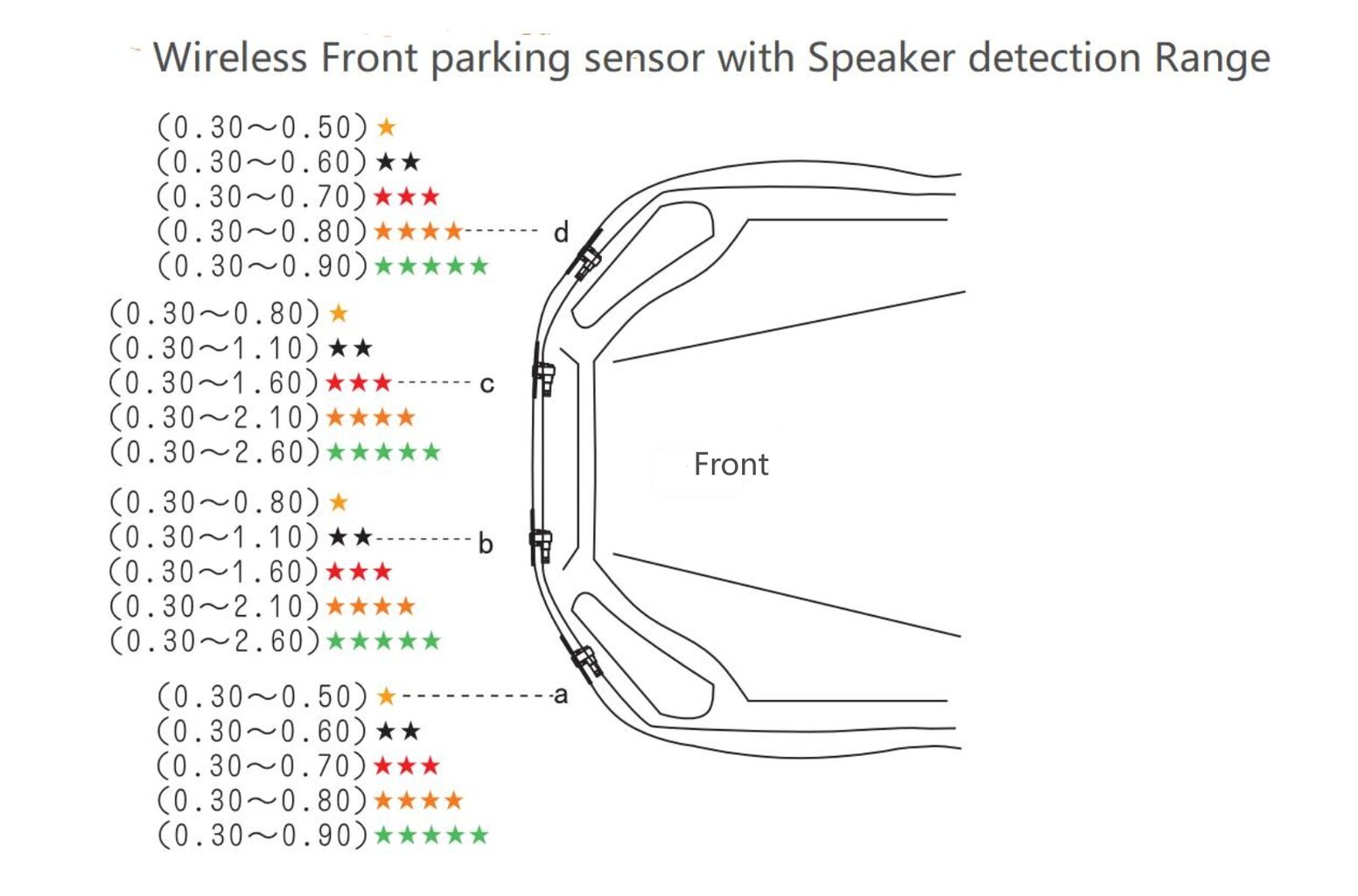

3. With 5 kinds of detection range for your choice.

Front Detecting Distance: 0.30m-2.60m

4. Waterproof & high temperature resistant Front ECU main controller, can get power from car battery in engine cabin directly, because the static current of the front controller is less than 0.35mA.

5. Wireless transmission, No cable connection between the Speaker & ECU, easy and safe installation, save labor cost for installation.

Technical Parameters:

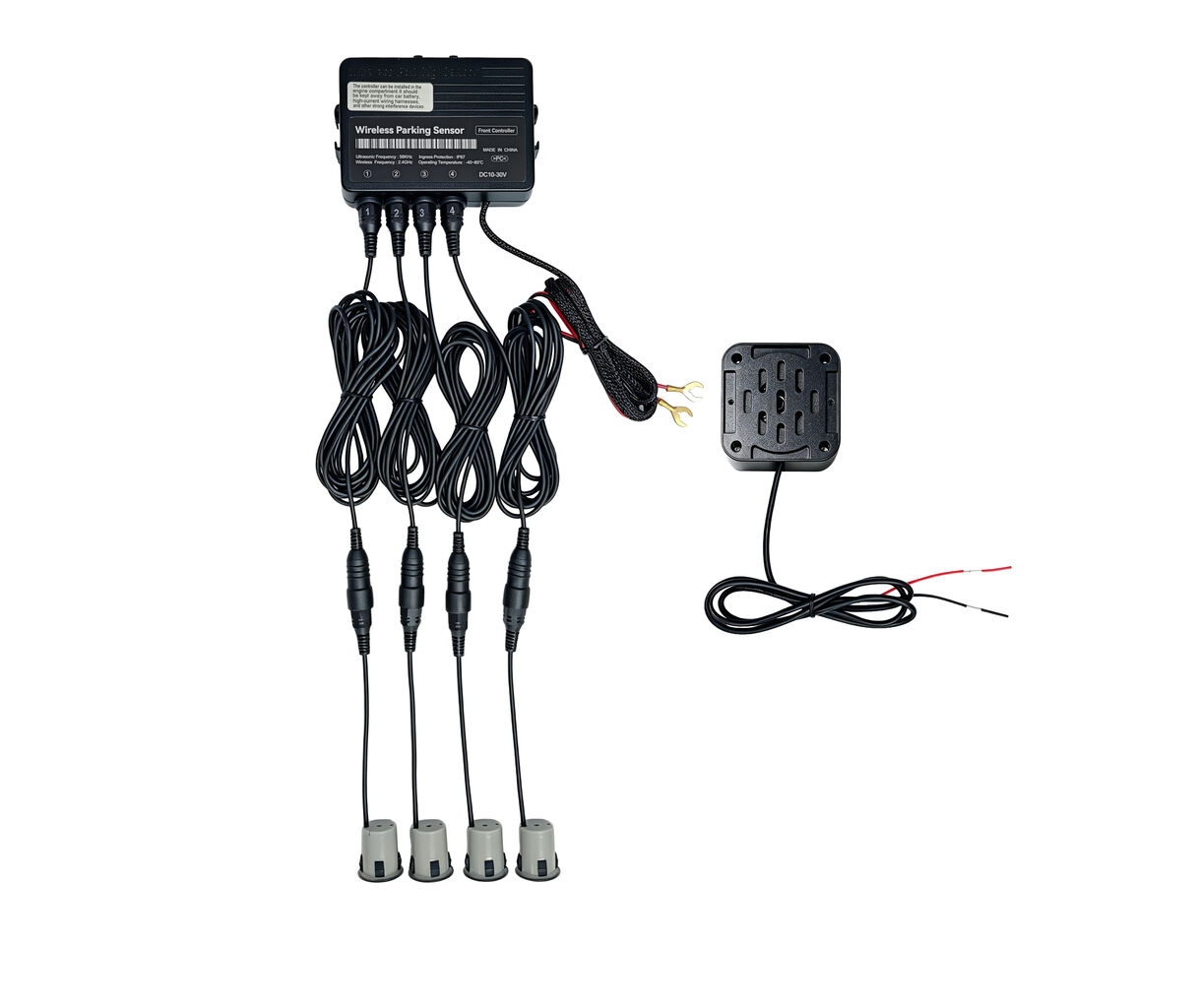

1. With 4 x Ф22mm 58KHz Sensors with waterproof cable & connectors (IP67)

2. Sensor cable length: 0.15meters+2.4meter

3. Wireless Frequency: 2.4GHz

4. Front parking sensor standby current: 0.35mA

5. Detecting Distance: 0.30m-2.60meters

6. Ultrasonic Frequency: 58KHz

7. Maximum power consumption: 3.5W

8. Operating Voltage: DC10~30V

9. Working Ambient Temperature: -40°C ~ +80 °C

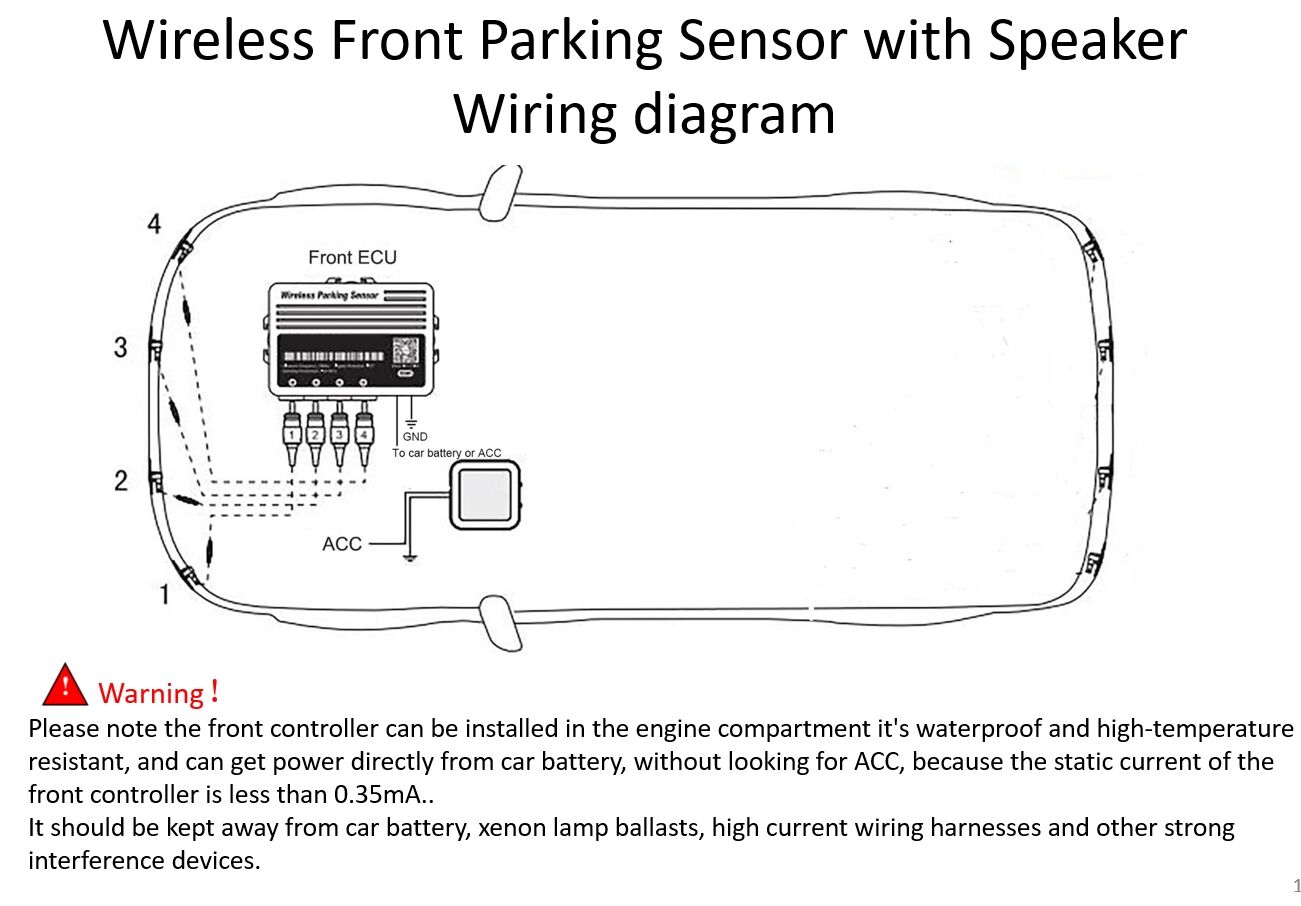

The Wireless front parking sensor do not require cables to be run through the firewall, so the installation is much faster and easier with far less risk of grommet damage, the ECU is installed in the engine bay and the + & – power wires can be connected directly to the fuse box or the battery terminals, without looking for ACC, because the static current of the front controller is less than 0.35mA.
