Wireless Rear Parking Assistant With colorful LCD Display 4 Rear Diameter 22mm 58KHz Ultrasonic Frequency Sensors Reversing System
Product Information
Key Specifications/ Special Features
Wireless Rear Parking Assistant System With colorful LCD Display 4 Rear Diameter 22mm 58KHz Ultrasonic Frequency Plug-in Sensors Reversing System
Features:

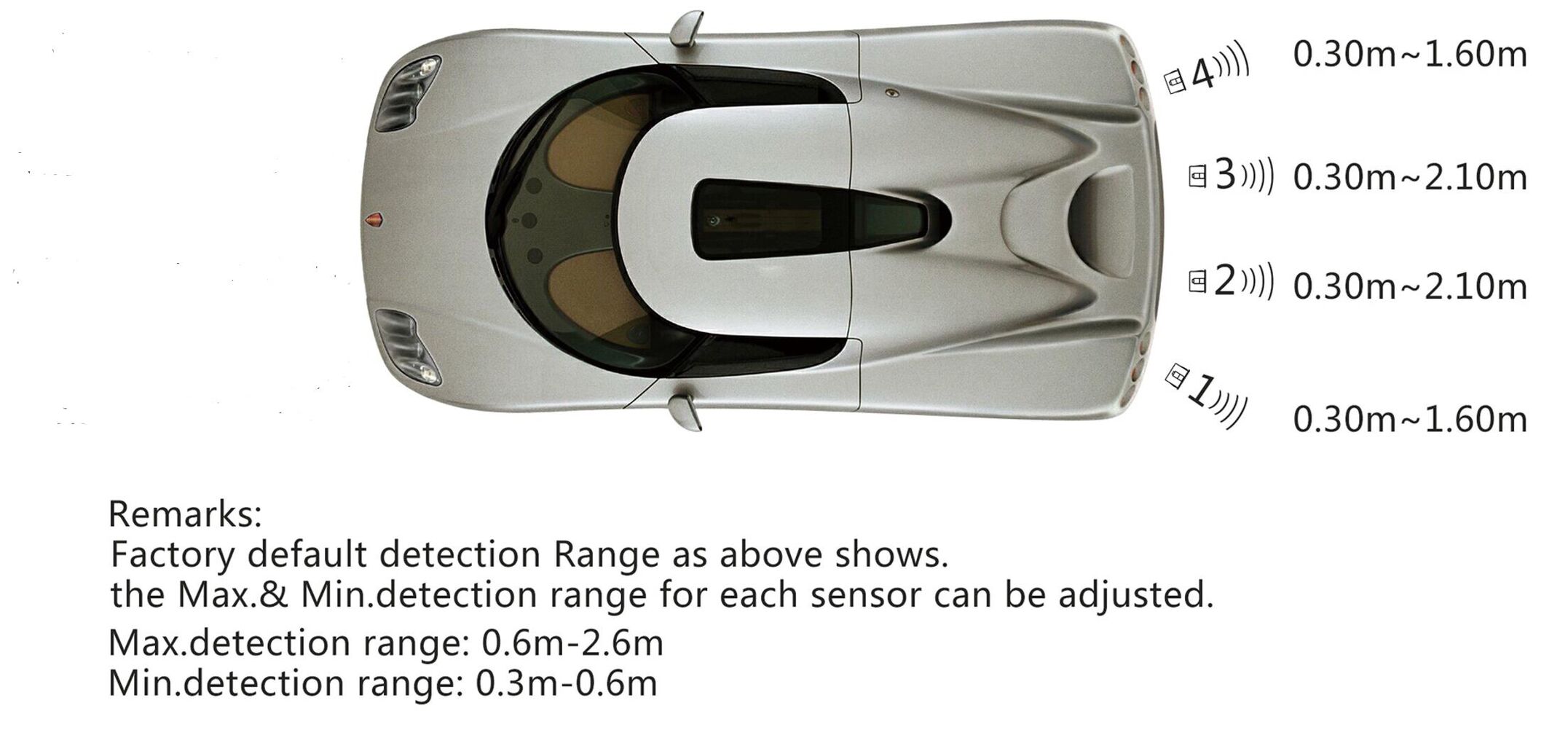

1. High sensitivity sensors, the detection range of each sensor's Min. & Max. distance can be set on the display, and with the Min. detection distance setting, it can avoid detecting spare tires, tow bars, pedals, and license plate holders.
2. with unique design & colorful display for Visible and Audible Alarm
3. Wireless means No cable connection between the Display & ECU, easy and safe installation, save labor cost for installation.
4. Ф16.5mm flush mount OE Style sensor for cars also available.
5. For metal bumper can also install with the Ф28mm rubber rings (optional).
6. If install for trucks/trailers, the rear ECU need to be waterproof and have extra cost, please consult before order
6. DC10-30V wide voltage, for car or for commercial vehicle.
Technical Parameters:

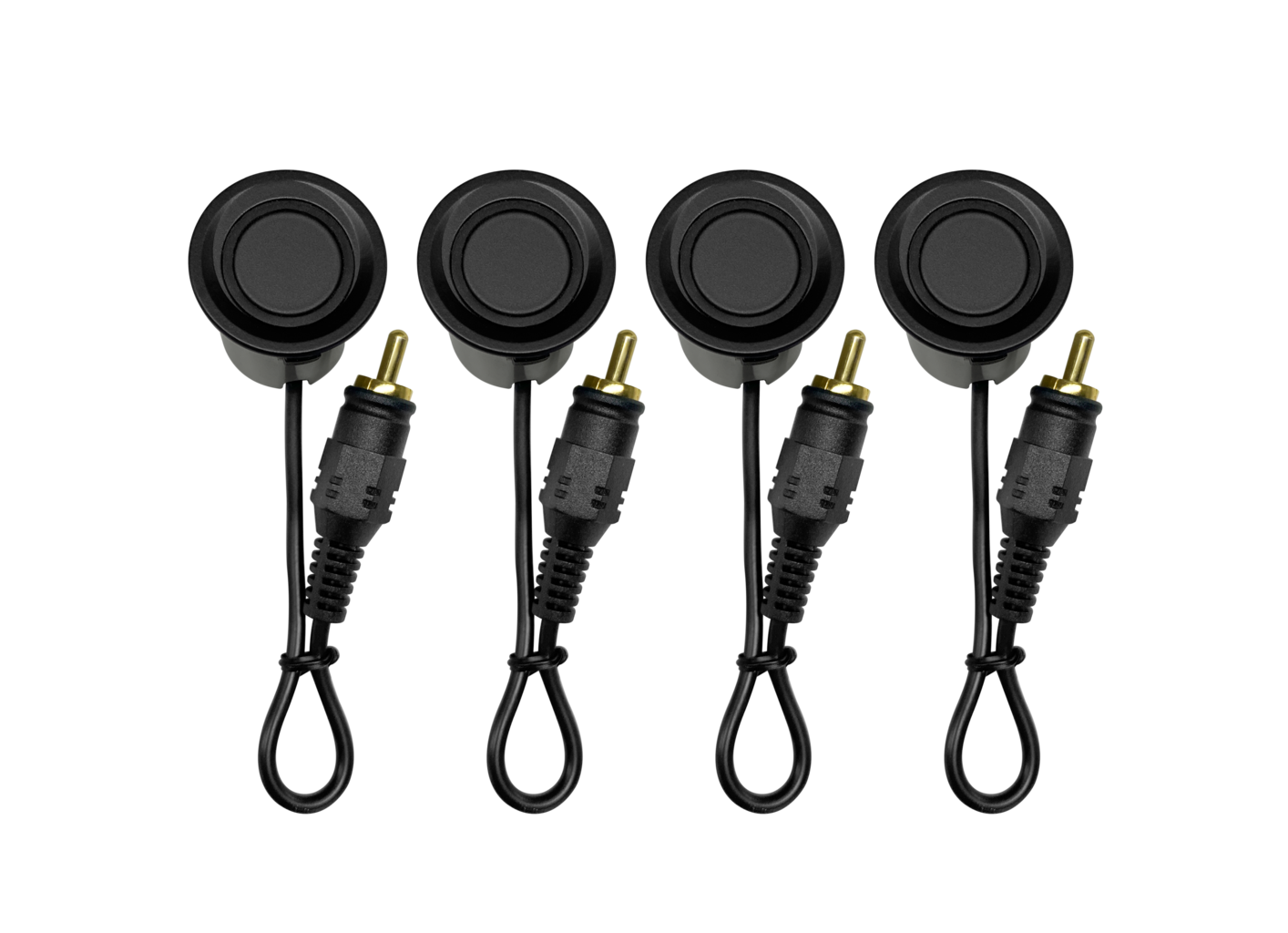

With 4 x Ф22mm 58KHz Sensors with waterproof cable & connectors (IP67)
Sensor cable length: 0.15meters+2.4meters
Wireless Frequency: 2.4GHz
Detecting Distance: 0.30m-2.60meters
Ultrasonic Frequency: 58KHz
Maximum power consumption: 1.5W
Operating Voltage: DC10~30V
Working Ambient Temperature: -40°C ~ +80 °C
Wireless Rear Parking Assistant System With colorful LCD Display 4 Rear Diameter 22mm 58KHz Ultrasonic Frequency Plug-in Sensors Reversing System
Features:
1. High sensitivity sensors, the detection range of each sensor's Min. & Max. distance can be set on the display, and with the Min. detection distance setting, it can avoid detecting spare tires, tow bars, pedals, and license plate holders.
2. with unique design & colorful display for Visible and Audible Alarm
3. Wireless means No cable connection between the Display & ECU, easy and safe installation, save labor cost for installation.
4. Ф16.5mm flush mount OE Style sensor for cars also available.
5. For metal bumper can also install with the Ф28mm rubber rings (optional).
6. If install for trucks/trailers, the rear ECU need to be waterproof and have extra cost, please consult before order
6. DC10-30V wide voltage, for car or for commercial vehicle.
Technical Parameters:
With 4 x Ф22mm 58KHz Sensors with waterproof cable & connectors (IP67)
Sensor cable length: 0.15meters+2.4meters
Wireless Frequency: 2.4GHz
Detecting Distance: 0.30m-2.60meters
Ultrasonic Frequency: 58KHz
Maximum power consumption: 1.5W
Operating Voltage: DC10~30V
Working Ambient Temperature: -40°C ~ +80 °C
