Customized brushless DC motor
US 8.00 / Piece
MOQ: 5000 Pieces
Model: W2815BL-4-001B
Lead Time: 30-45 days
Supplier Profile
Year Established: 1995
Export Markets: Asia,Eastern Europe,North America,Western Europe
Annual Sales: US$70,000,000 to 74,999,999
Total Staff: 1,500 to 1,999

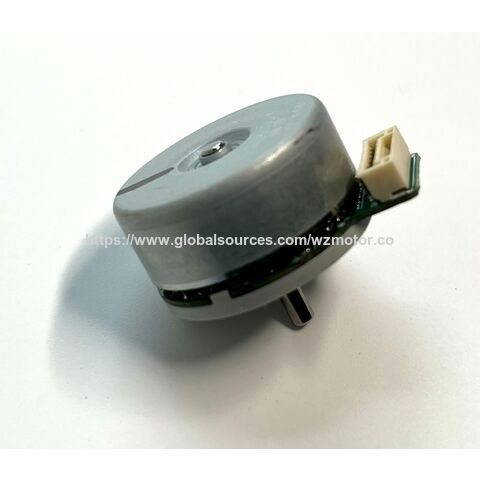

Shenzhen Weizhen Motor Development Co. Ltd’s W2815BL-4-001B is a brushless DC motor for smart automation applications, including drones used in aerial photography and other UAVs. It has speed ratings of 5,700rpm/min with no load and 4,950rpm/min with load while the starting torque is 31.37mN.m and the maximum mechanical noise level is 45dB.
This BLDC unit has 14.4VDC nominal voltage, 12 to 16.8VDC operating voltage range, 0.12 and 0.48A no-load and with-load current ratings, and 0.7A starting current. It is customizable. Motor weight is approximately 31g.
Shenzhen Weizhen’s selection of DC motors includes carbon and metal brushed, brushless and geared types. The company has ISO 14001:2015, 9001:2015 and IATF 16949:2016 certifications.
