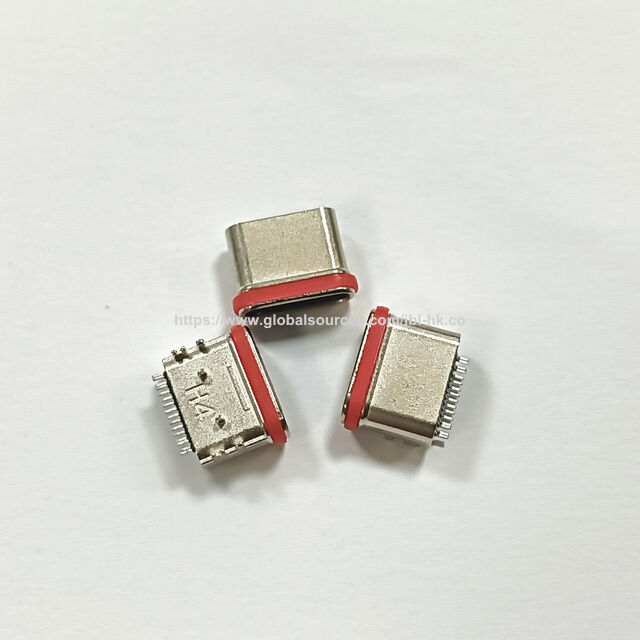

Dongguan Jinbaoli Electronics Co. Ltd offers model TYPE-C-16P-L7.5 SMT, a USB-C female connector with an IP67 rating and a 10,000-cycle life span. This 100V, 5A unit has 5 to 20N mating and 8 to 20N unmating force, and 1kgf minimum terminal retention. The maximum contact resistance is 40ohm, minimum insulation resistance 100Mohm, withstand voltage 500VAC/min and operating temperature range -30 to 85 C. The gold-plated contacts and the nickel-plated shell are made of C2680 alloy and the housing of LCP reinforced with 30 percent glass fiber.
ISO 9001-certified Dongguan Jinbaoli is involved in the R&D and production of electronic switches, sockets and connectors. Energizer, Samsung, Sony, Yaskawa and Newsmy Digital are among the company’s major customers.
