USB Type C Side Standing Connector

US 0.21 / Piece

MOQ: 1000 Pieces

Model: JSX-TC16FA-3013#

Lead Time: 14-21 days

Supplier Profile

Year Established: 2013

Export Markets: Asia,Western Europe,North America

Annual Sales: US$1,000,000 to 1,999,999

Total Staff: 150 to 199

Inquire Now

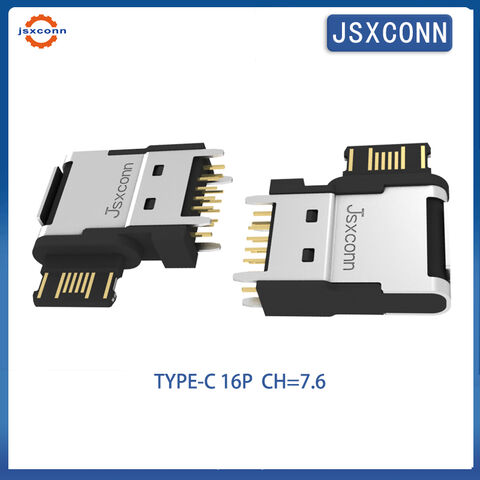

Guangdong Jinshengxin Industrial Co. Ltd offers the JSX-TC16FA-3013, a USB-C connector with C7025 terminals, SUS 304 midplate and shell, and UL94V-0-rated LCP housing and molding.

This 16-pin unit has 5A current rating, 40ohm maximum contact and 100mohm minimum insulation resistance, 100VAC dielectric withstand voltage and -40 to 85 C operating temperature. The mating force is 5 to 20N, unmating force 8 to 20N and durability 10,000 cycles.

Guangdong Jinshengxin has a 20,000sqm factory and accepts OEM projects. It has ISO 9001:2000 and 16949:2016 certifications.
