25x25x4mm Compact GPS Patch Antenna with IPEX Connector
Product Information
Key Specifications/ Special Features
| Item | Specification |
|---|---|
| Product Type | Active GPS Ceramic Patch Antenna |
| Center Frequency | 1575.42 ± 3 MHz |
| Bandwidth | CF ± 5 MHz |
| Polarization | RHCP |
| Antenna Gain (Zenith) | 5 dBic |
| Antenna VSWR | < 1.5 |
| Impedance | 50 Ω |
| Axial Ratio (Zenith) | 3 dB |
| Antenna Dimensions | 25 × 25 × 4 mm |
| LNA Gain | 28 ± 2 dB |
| LNA Noise Figure | < 1.5 dB |
| LNA Supply Voltage | 2.2–5 V DC |
| Current Consumption | 5–15 mA |
| LNA VSWR | < 2.0 |
| Cable | RF1.13 or Customized |
| Connector | IPEX or Customized |
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | Up to 75% |
| Vibration | 10–55 Hz, 1.5 mm Amplitude, 2 Hours |
| RoHS Compliance | Yes |
Product Advantages

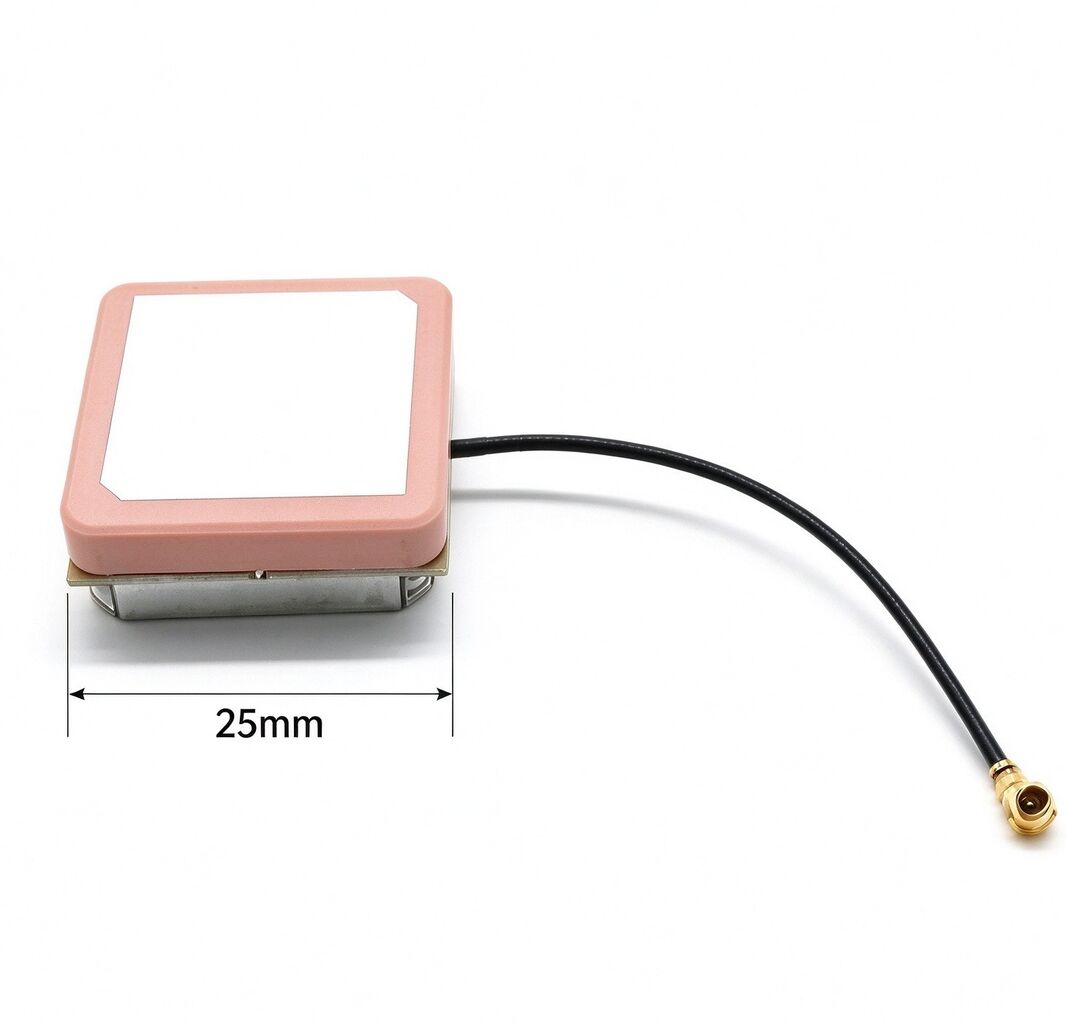

Compact Ceramic Patch Design
The 25 × 25 × 4 mm ceramic antenna element is suitable for space-constrained electronic designs. Its compact structure gives equipment manufacturers flexibility when planning antenna placement inside positioning devices and embedded systems.
Integrated LNA for GPS Signal Reception
The built-in low-noise amplifier provides 28 ± 2 dB gain with a noise figure below 1.5 dB. Combined with RHCP polarization, this configuration is designed for GPS L1 signal reception in compatible receiver systems. The antenna gain and LNA gain are specified separately to clarify the actual performance parameters.

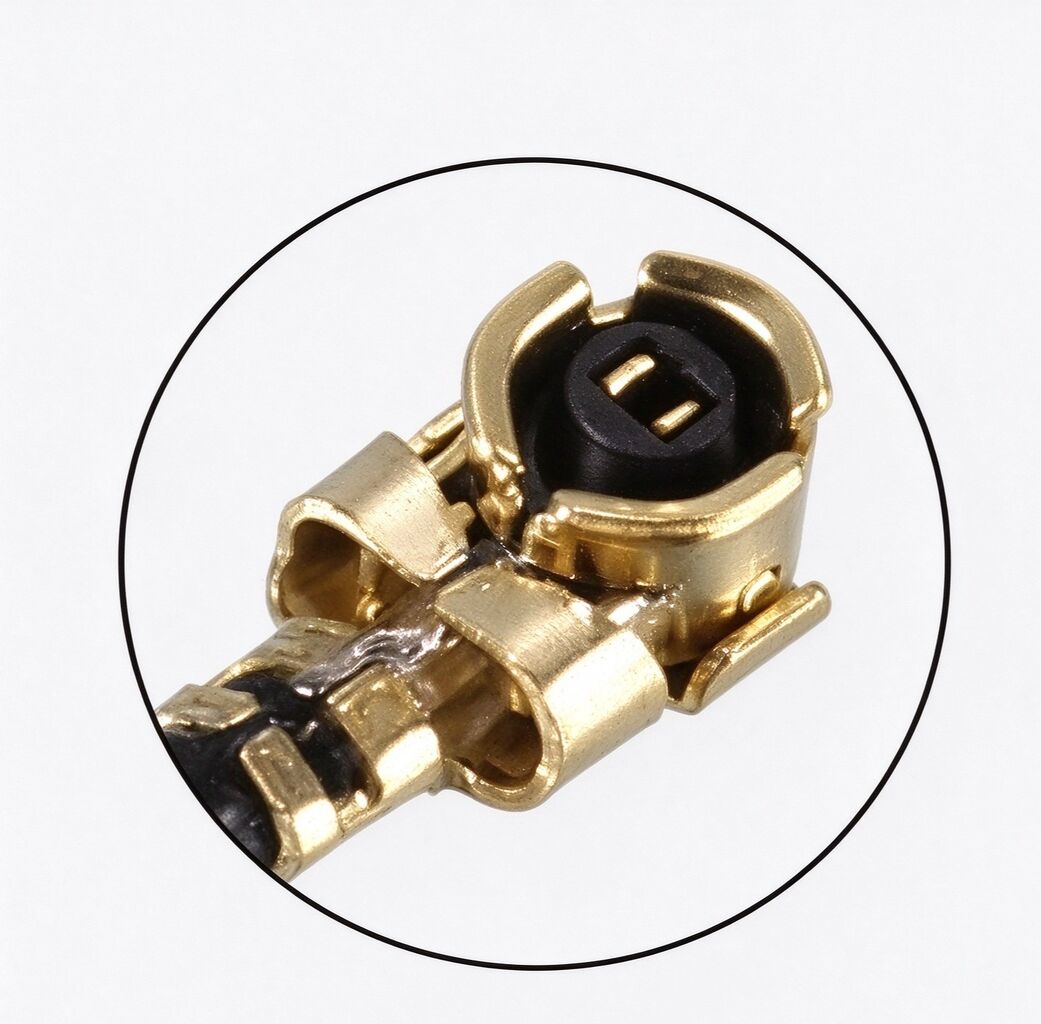

Flexible Cable and Connector Options
The antenna supports RF1.13 cable and IPEX connector configurations, with alternative options available for discussion. The 2.2–5 V DC operating range and compact dimensions allow engineers to evaluate the product against different equipment interfaces and installation requirements.
Core Applications
- GPS navigation and positioning equipment
- Vehicle tracking and telematics devices
- Embedded GPS receiver systems
- Portable positioning terminals
- GPS-enabled industrial electronics
Application suitability depends on the receiving module, antenna placement, power supply and overall system design.
Frequently Asked Questions
Q1: Is this an active or passive GPS antenna?
This is an active GPS antenna with a built-in low-noise amplifier. The LNA requires a 2.2–5 V DC power supply.
Q2: What frequency does this antenna support?
The specified center frequency is 1575.42 ± 3 MHz, corresponding to the GPS L1 frequency band. Compatibility with the target receiver should be confirmed before ordering.
Q3: Can the cable length and connector be customized?
The antenna supports RF1.13 cable and IPEX connector options. Please provide your required cable length and connector type for confirmation.
Q4: What should be considered when integrating this antenna into a device?
Engineers should check the available installation space, antenna orientation, ground plane requirements, receiver compatibility and DC power supply for the LNA.
Q5: Is this antenna suitable for industrial equipment?
The specified operating temperature range is -40°C to +85°C, and the product is RoHS compliant. Final suitability depends on the equipment design and the environmental requirements of the application.
