3.5G WIMAX 28dBi MIMO Dish

Product Detailed Description

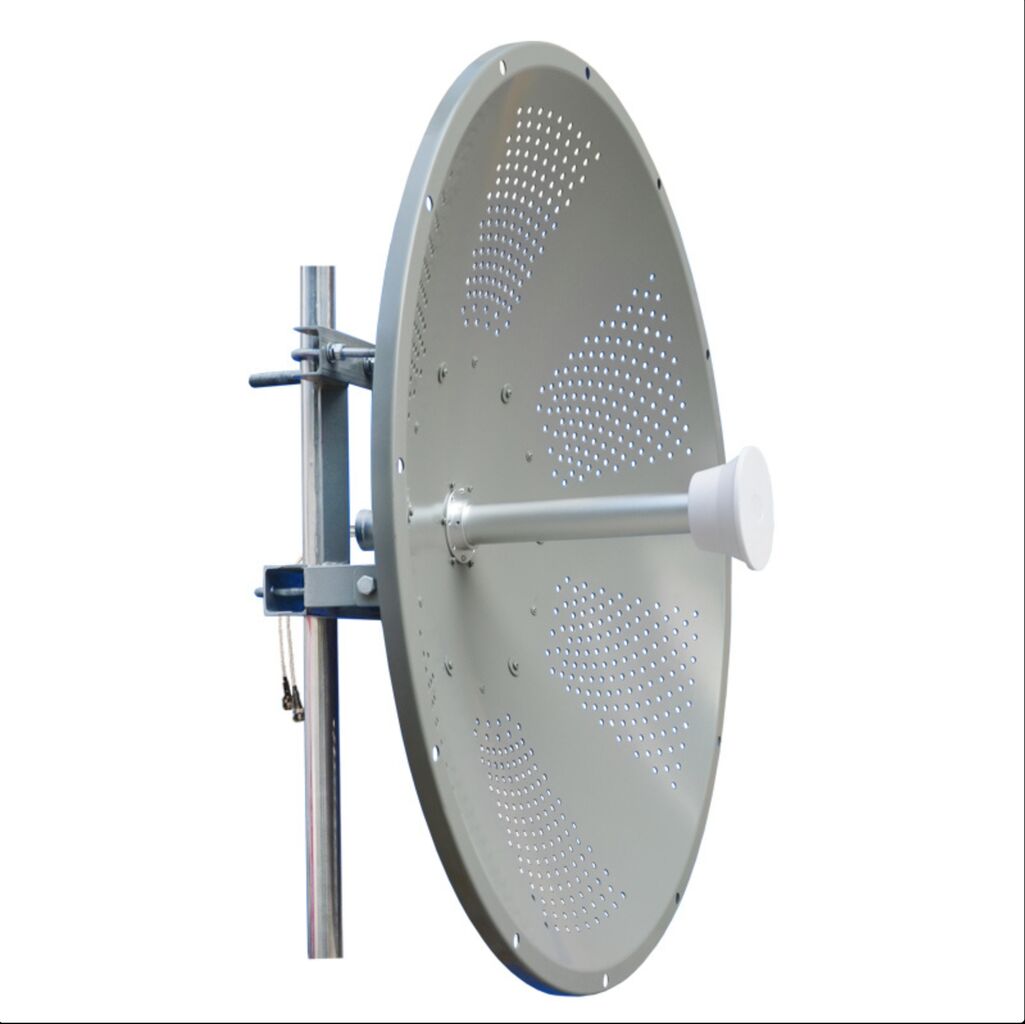

This is a directional 3.5G parabolic pole mount antenna, designed for long-distance point-to-point outdoor wireless communication.
Electrical Specifications
Frequency Range: 3300-3800MHz
F/B Ratio: >35dB
Gain: 2x28dBi
V.S.W.R: ≤1.5Type;Max 2.0
Radiation: Direction
Horizontal Beam width: 8°
Vertical Beam width: 9°
Polarization: Vertical and Horizontal
Lightning Protection: DC Grounded
Maximum Input Power: 100W
Impedance: 50Ω
Connector: 2xN Female
Cable Type: RG142
Cable Length: 30cm
Antenna Radome Material: Aluminium alloy
Mounting way: Pole Mount
Diameter of Installation Pole: Φ50-70mm
Mechanical & Environmental Specifications
Dimensions: Φ900mm
Weight: 7.5KG
Operating Temperature: -40℃ to+80℃
Rated Wind Velocity: 60m/s
RoHS Compliant: YES
This high-gain directional parabolic antenna supports dual polarization with ultra-high front-to-back ratio, featuring narrow beamwidth for precise long-range point-to-point transmission. Constructed with sturdy aluminium alloy material and DC grounded lightning protection, it can resist strong wind and work reliably under extreme outdoor temperature conditions for 3.5G broadband wireless links.
