4G 5G LTE MIMO Parabolic Dish Antenna 1700-4200Mhz High Gain Long Range Inquiry Contact Us
Product Information
Key Specifications/ Special Features
Product Detailed Description

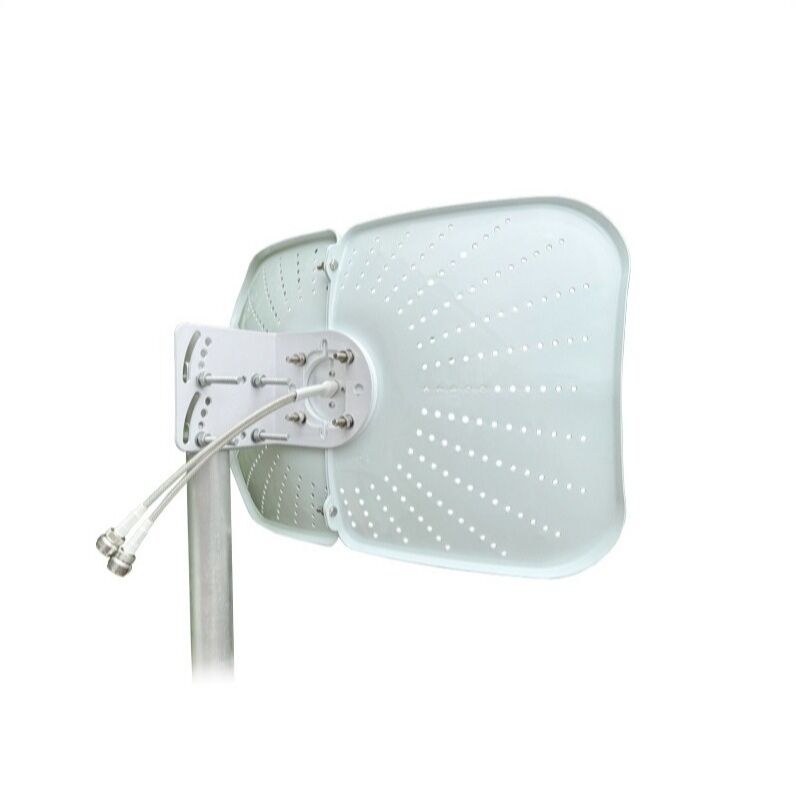

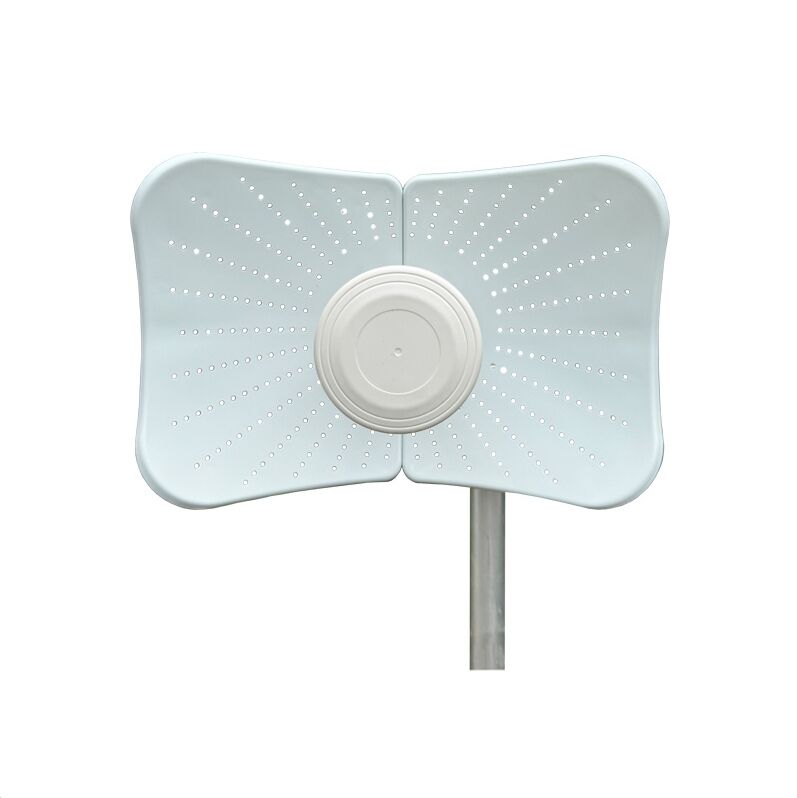

This is a directional dual-polarized high-gain panel pole mount antenna, designed for outdoor long-distance point-to-point wireless transmission.
Electrical Specifications
Frequency Range: 1700-4200MHz
F/B Ratio: ≥30dB
Gain: 2×15dBi
V.S.W.R: 1700MHz≤3.5;2700-4200 ≤1.8
Radiation: Direction
Horizontal Beam width: 12°
Vertical Beam width: 15°
Polarization: Vertical and Horizontal
Lightning Protection: DC Grounded
Maximum Input Power: 100W
Impedance: 50Ω
Cable Length: 20cm
Cable Type: RG142
Connector: 2×N Female
Antenna Radome Material: Aluminium alloy
Mounting way: Pole Mount
Diameter of Installation Pole: Ø30~Ø50mm
Mechanical & Environmental Specifications
Dimensions: 405×280mm
Weight: 1.1KG
Operating Temperature: -40℃ to +70℃
Rated Wind Velocity: 60m/s
RoHS Compliant: YES
Marketing Summary
This high gain directional dual polarized panel antenna delivers excellent front-to-back ratio and narrow beam coverage, ideal for long range outdoor point to point communication links. Its robust aluminum alloy housing supports pole mounting and works reliably under harsh outdoor weather conditions.
Product Detailed Description
This is a directional dual-polarized high-gain panel pole mount antenna, designed for outdoor long-distance point-to-point wireless transmission.
Electrical Specifications
Frequency Range: 1700-4200MHz
F/B Ratio: ≥30dB
Gain: 2×15dBi
V.S.W.R: 1700MHz≤3.5;2700-4200 ≤1.8
Radiation: Direction
Horizontal Beam width: 12°
Vertical Beam width: 15°
Polarization: Vertical and Horizontal
Lightning Protection: DC Grounded
Maximum Input Power: 100W
Impedance: 50Ω
Cable Length: 20cm
Cable Type: RG142
Connector: 2×N Female
Antenna Radome Material: Aluminium alloy
Mounting way: Pole Mount
Diameter of Installation Pole: Ø30~Ø50mm
Mechanical & Environmental Specifications
Dimensions: 405×280mm
Weight: 1.1KG
Operating Temperature: -40℃ to +70℃
Rated Wind Velocity: 60m/s
RoHS Compliant: YES
Marketing Summary
This high gain directional dual polarized panel antenna delivers excellent front-to-back ratio and narrow beam coverage, ideal for long range outdoor point to point communication links. Its robust aluminum alloy housing supports pole mounting and works reliably under harsh outdoor weather conditions.
