Product Detailed English Description

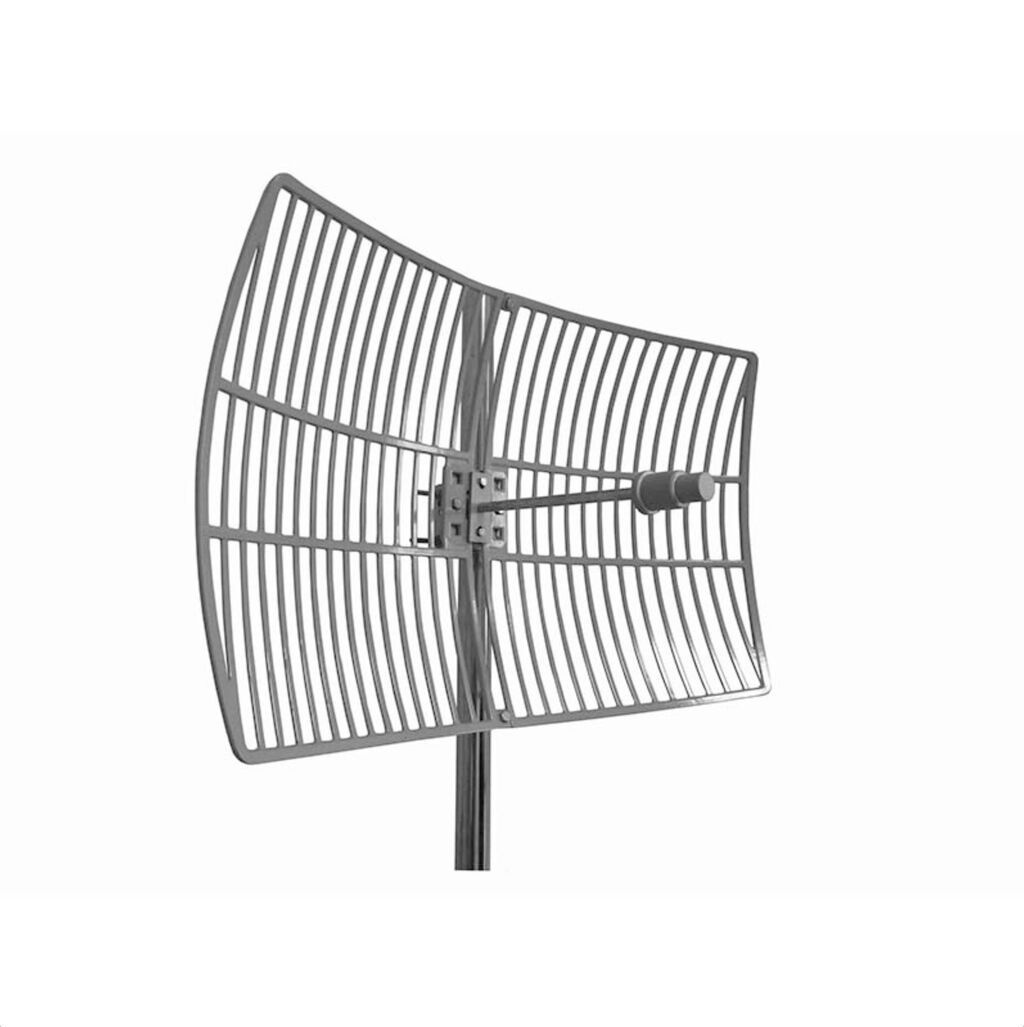

This is a high gain directional parabolic antenna for 5.8GHz, designed for long-distance point-to-point wireless transmission and outdoor bridge communication.
Electrical Specifications
Frequency Range: 5725-5850 MHz
F/B Ratio: ≥25dB
Gain: 29dBi
V.S.W.R: ≤1.5
Radiation: Direction
Horizontal Beam width: 4°
Vertical Beam width: 6°
Polarization: Vertical or Horizontal
Lightning Protection: DC Grounded
Maximum Input Power: 100W
Impedance: 50Ω
Connector: N Female
Antenna Radome Material: Aluminum Alloy
Mount way: Pole
Diameter of Installation Pole: Ø50~Ø70mm
Mechanical Specifications
Dimensions: 600x900mm
Weight: 2.5KG
Operating Temperature: -40℃ to +70℃
Rated Wind Velocity: 60m/s
RoHS Compliant: YES
This 5.8GHz parabolic antenna delivers high gain for stable long-distance point-to-point wireless links, suitable for outdoor wireless bridge applications.
