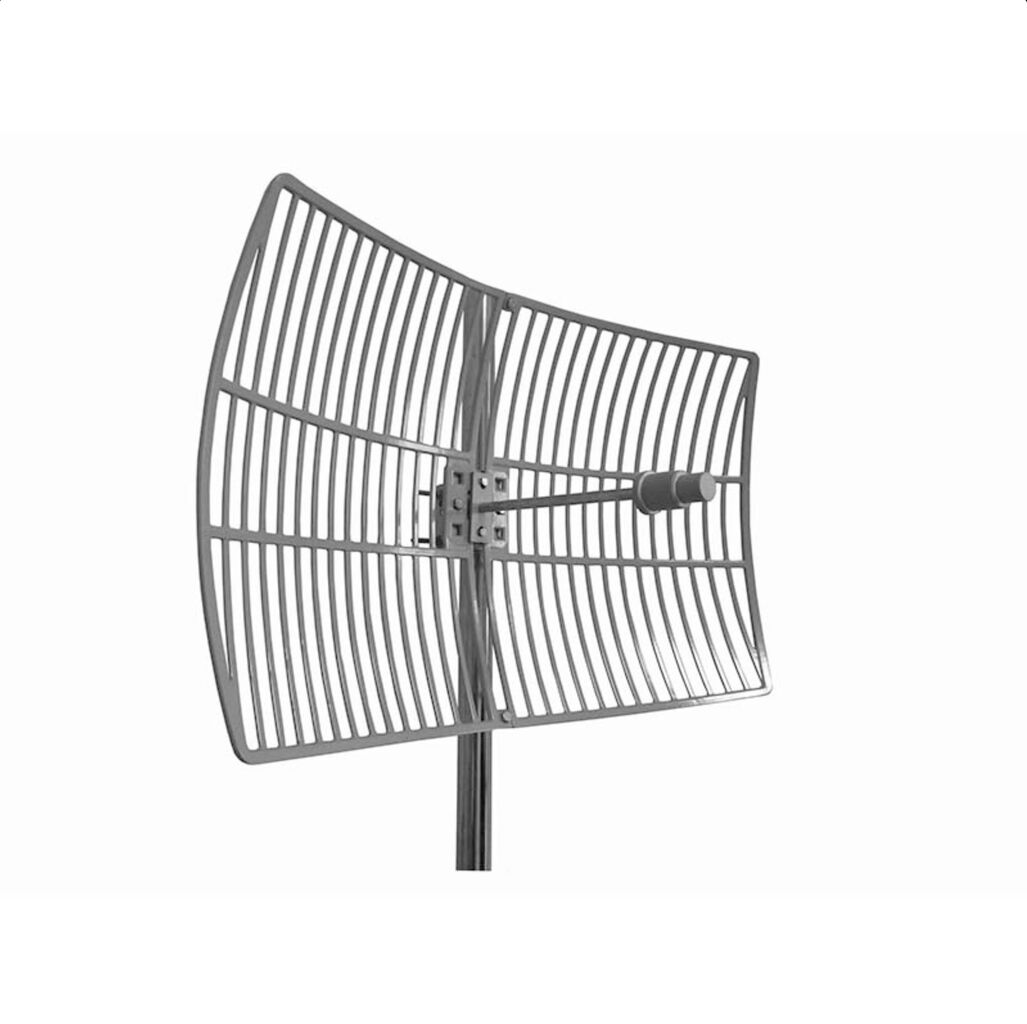

5.1-5.8GHz 30dBi Die Cast Grid Antenna

Product Detailed Description
This is a high gain directional parabolic antenna covering 5150-5850MHz, designed for outdoor point-to-point wireless bridge and long distance data transmission.
Electrical Specifications
Frequency Range: 5150-5850 MHz
F/B Ratio: ≥25dB
Gain: 30dBi
V.S.W.R: ≤2.0
Radiation: Direction
Horizontal Beam width: 4°
Vertical Beam width: 6°
Polarization: Vertical or Horizontal
Lightning Protection: DC Grounded
Maximum Input Power: 100W
Impedance: 50Ω
Connector: N Female
Antenna Radome Material: Aluminum Alloy
Diameter of Installation Pole: Ø50~Ø70mm
Mechanical Specifications
Dimensions: 600x900mm
Weight: 2.5KG
Operating Temperature: -40℃ to+70℃
Rated Wind Velocity: 60m/s
RoHS Compliant: YES
This directional parabolic antenna features high gain and stable performance, suitable for harsh outdoor environments and long-range wireless communication links.
