800-2700MHz MIMO Sector Antenna-1

Product Detailed Description

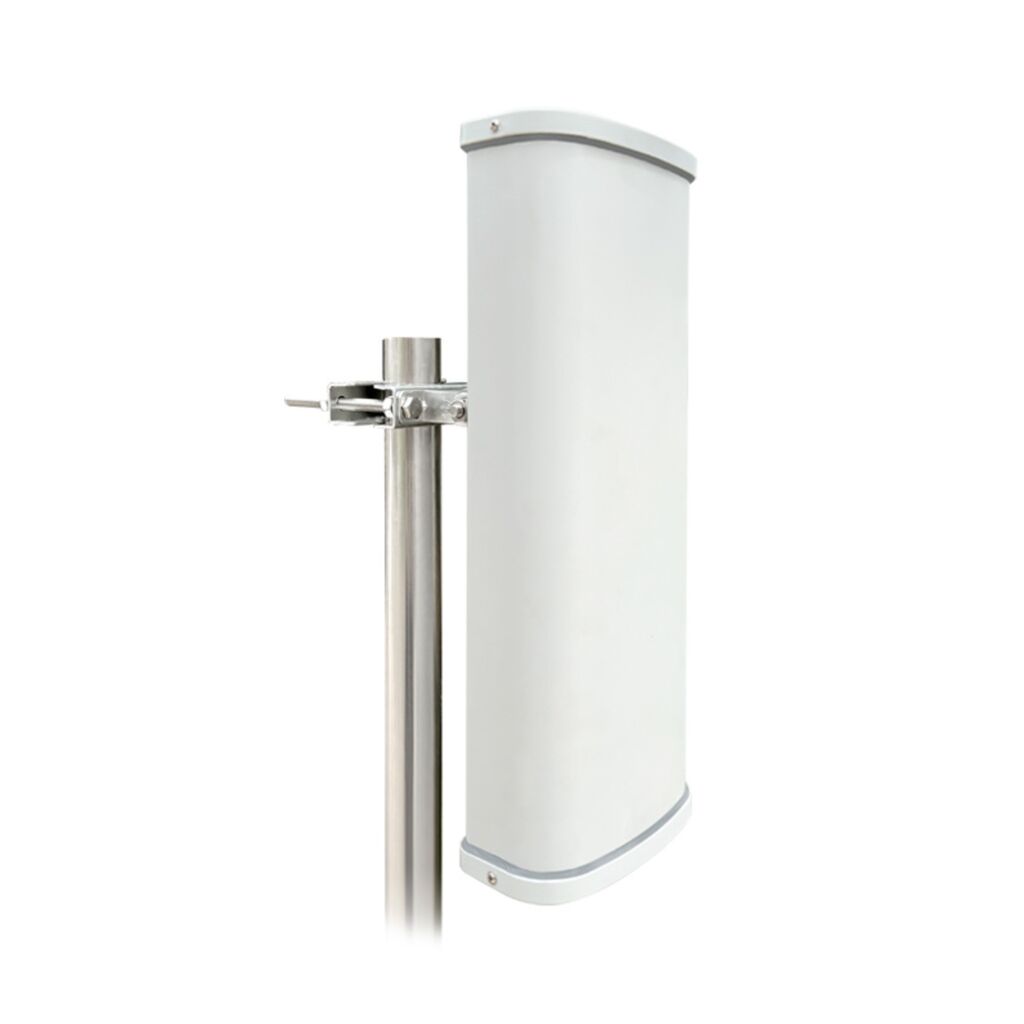

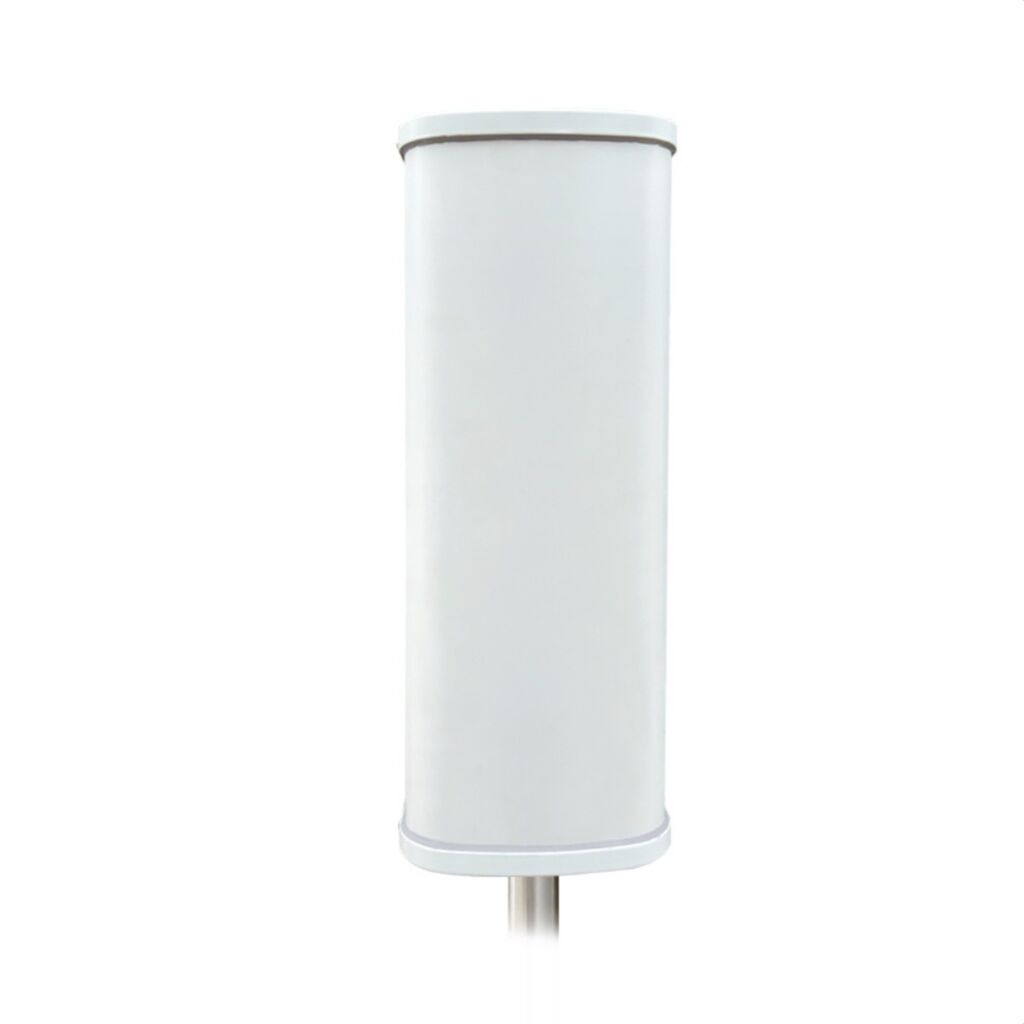

This is a dual-band directional panel pole mount antenna, designed for outdoor 4G cellular network signal coverage.
Electrical Specifications
Frequency Range: 806-960MHz / 1710-2700MHz
F/B Ratio: >12dB
Gain: 8/9dBi
V.S.W.R: ≤1.5
Radiation: Direction
Horizontal Beam width: 90°/80°
Vertical Beam width: 30°/28°
Polarization: Vertical and Horizontal
Lightning Protection: DC Grounded
Maximum Input Power: 100W
Impedance: 50Ω
Connector: 2xN Female
Antenna Radome Material: PVC
Mount way: Pole Mount
Diameter of Installation Pole: Φ30-50mm
Mechanical & Environmental Specifications
Dimensions: 450x180x90mm
Weight: 1.9KG
Operating Temperature: -40℃ to+60℃
Rated Wind Velocity: 60m/s
RoHS Compliant: YES
This dual-polarized directional panel antenna supports 806-960MHz and 1710-2700MHz dual frequency bands with stable gain and low VSWR. Equipped with DC grounded lightning protection and PVC protective housing, it features light weight and strong wind resistance, suitable for pole-mounted outdoor cellular signal distribution and coverage projects.
