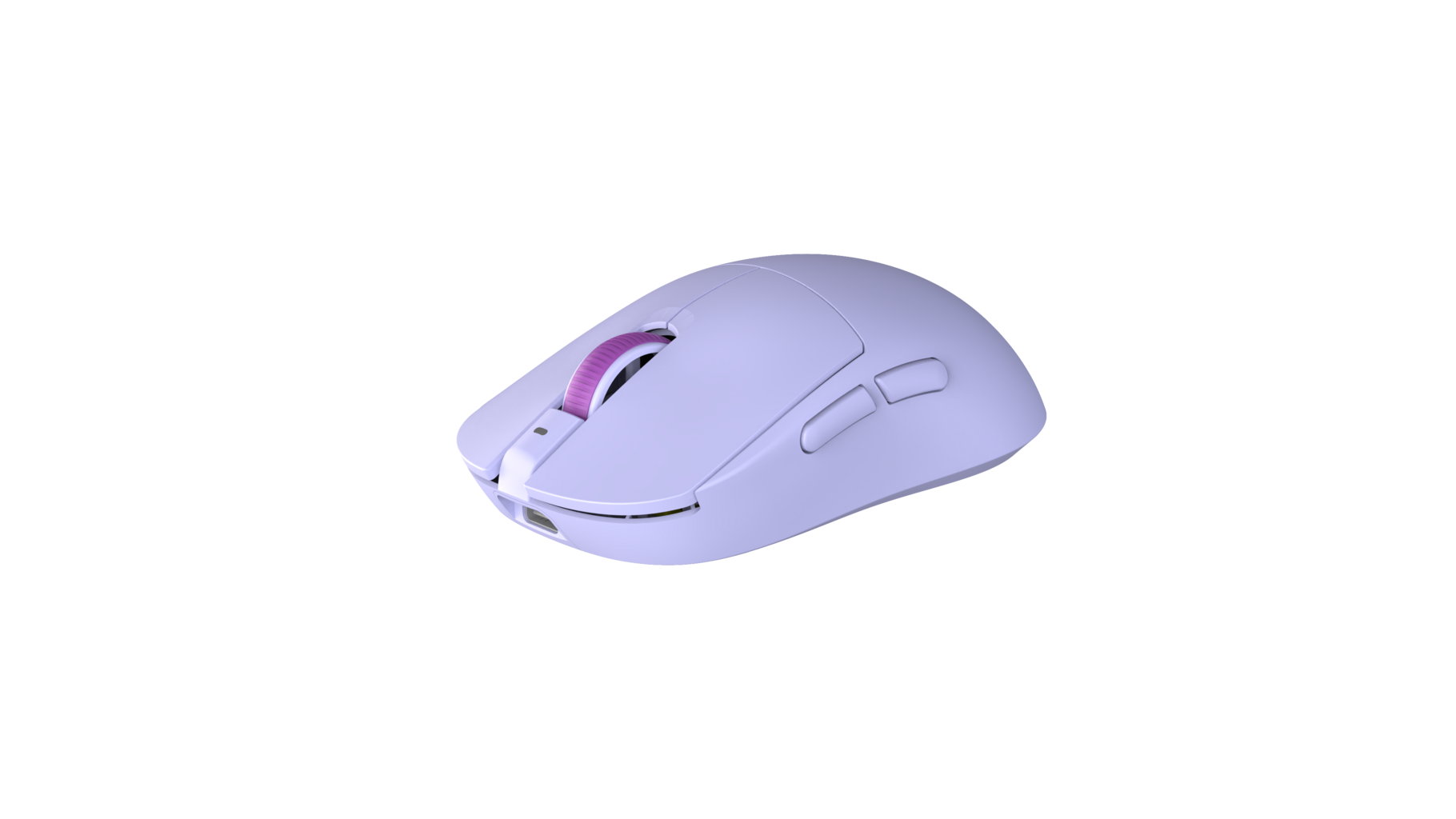

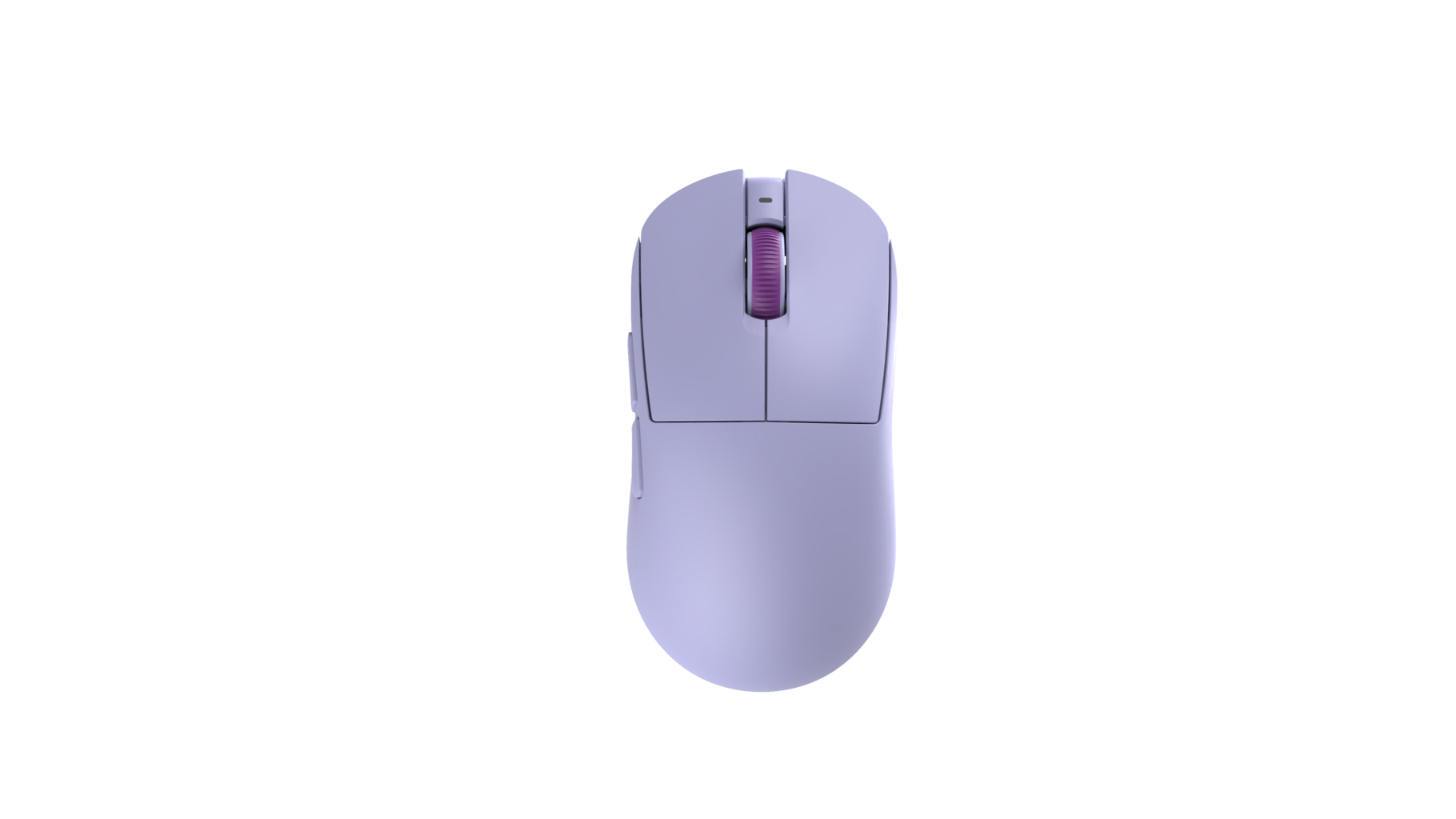

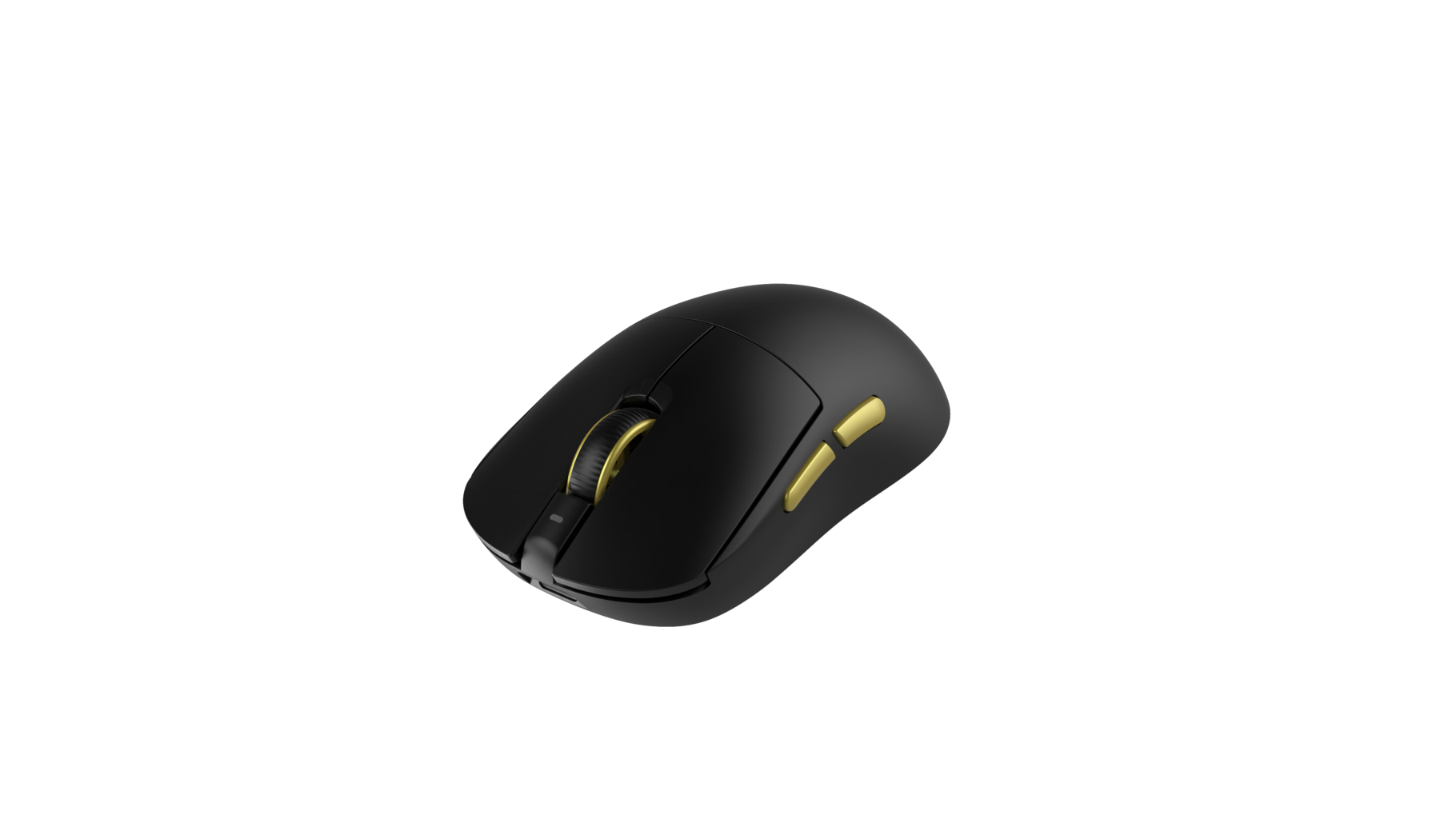

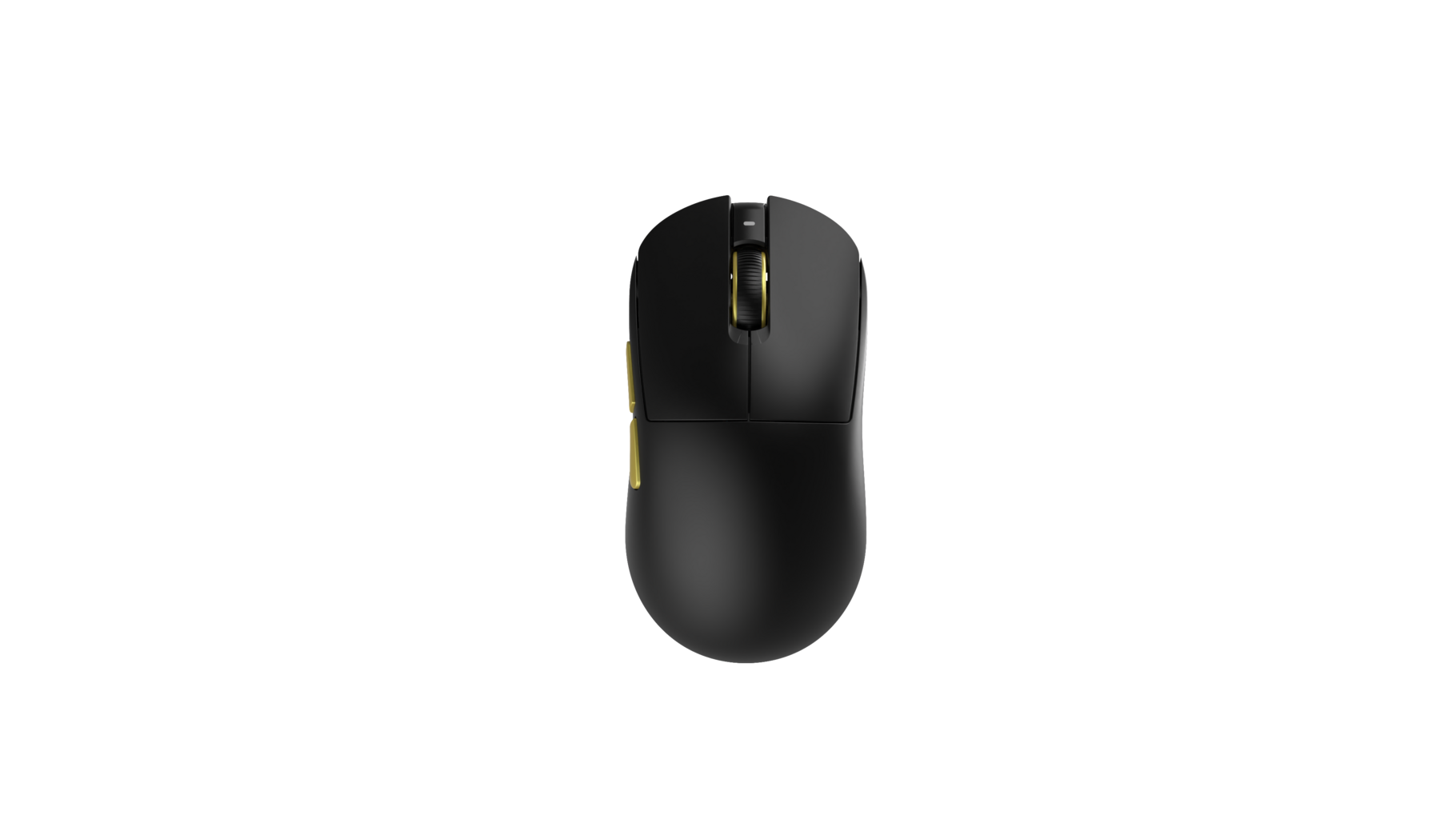

Custom optical sensor, PAW3311, 26000 DPI Tri-Mode Wireless Gaming Mouse with Ultra-Precise Sensor, 56g Weight,wired ,BT5.1

PX506 Mouse Manual

I. Electrical Parameter Specifications

1. Type: 2.4G wireless + Bluetooth + Type-C wired

2. Sensor: Custom optical sensor, PAW3311

3. MCU: Telink（68240P）

4. Polling Rate: Wireless 1K, Wired 1K, Bluetooth 125Hz

5. DPI/CPI (dots/count per inch): 400-800-1600-3200-6400-26000

DPI (default 1600)

6. Maximum Speed: 300 IPS (inches per second)

7. Acceleration: 60g

8. Left/Right Buttons: HUANNUO 20 million times micro-motion

9. Encoder: TTC pink wheel, 600,000 clicks

10. Cable: 1.5-meter paracord

11. Battery Capacity: 500mAh

Left button

Scroll wheel/Middle button

Right button

Forward

Back

Mode Switch

DIP Switch

Receiver storage

compartment,

LED Indicator12. Battery Life: 140 hours（1K）

13.Charging voltage/current: 5V/250mA. The charging time is

approximately 2.5 hours to fully charge. Fast charging is not

supported.

14.Rated Voltage/Current：DC 3.7V≤ 15mA

2.1 Structural Dimensions and Weight

2.1.1 Product Dimensions: 117 (Length) × 61.4 (Width) × 38

(Height) ± 0.2 mm

2.1.2 Product Weight: Approximately 55 ± 2 grams (excluding

receiver)
