GSM PCB Antenna With FPC Material
Product Information
Key Specifications/ Special Features
Product Detailed Description

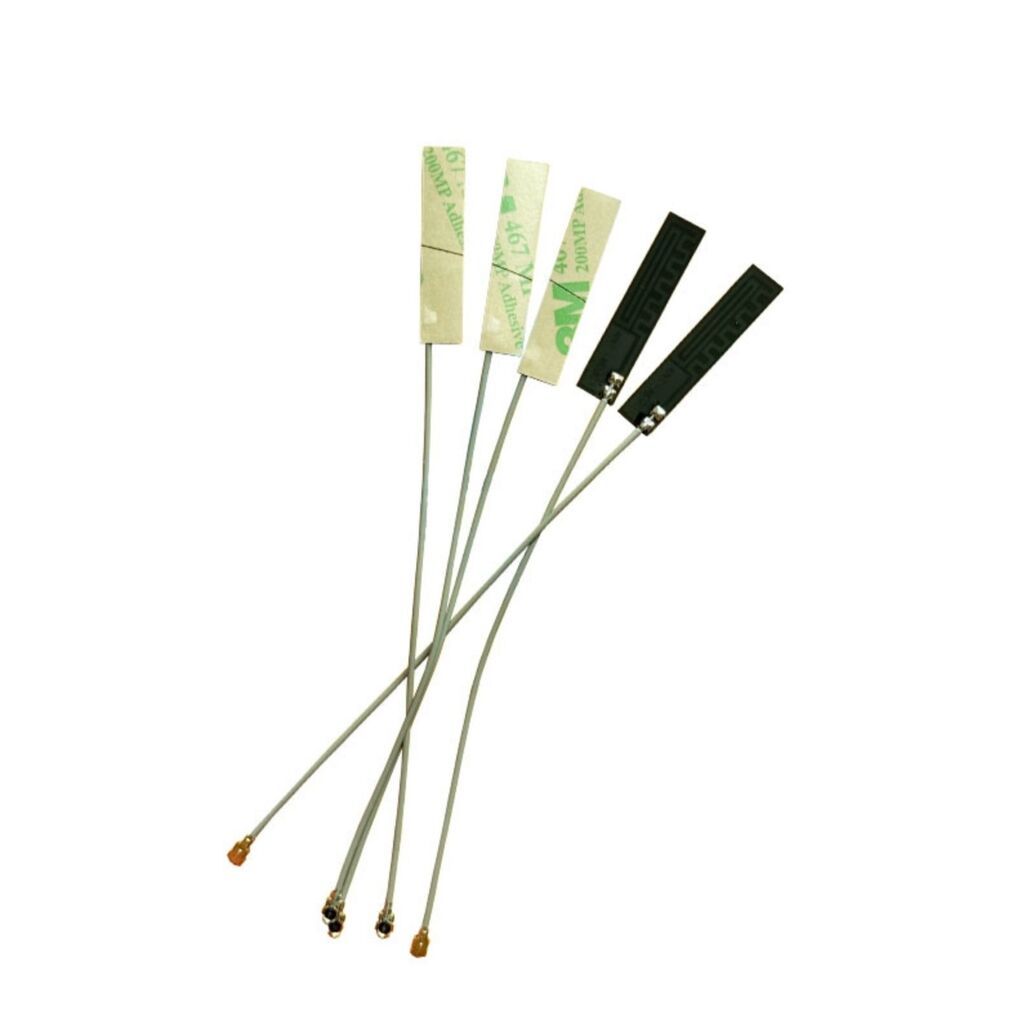

This is a flexible FPC GSM antenna for GSM wireless signal reception and transmission.
Frequency Range: 824-896/880-960/1710-1880/1850-1990MHz
Gain: 2.15dBi
V.S.W.R: ≤2.0
Polarization: Vertical
Maximum Input Power: 50W
Impedance: 50Ω
Connector: IPEX
Cable Type: 1.13
Cable Length: 10cm
Antenna Radome Material: FPC
Dimensions: 33×8×0.2mm
Weight: 5g
Operating Temperature: -40℃ to +70℃
RoHS Compliant: YES

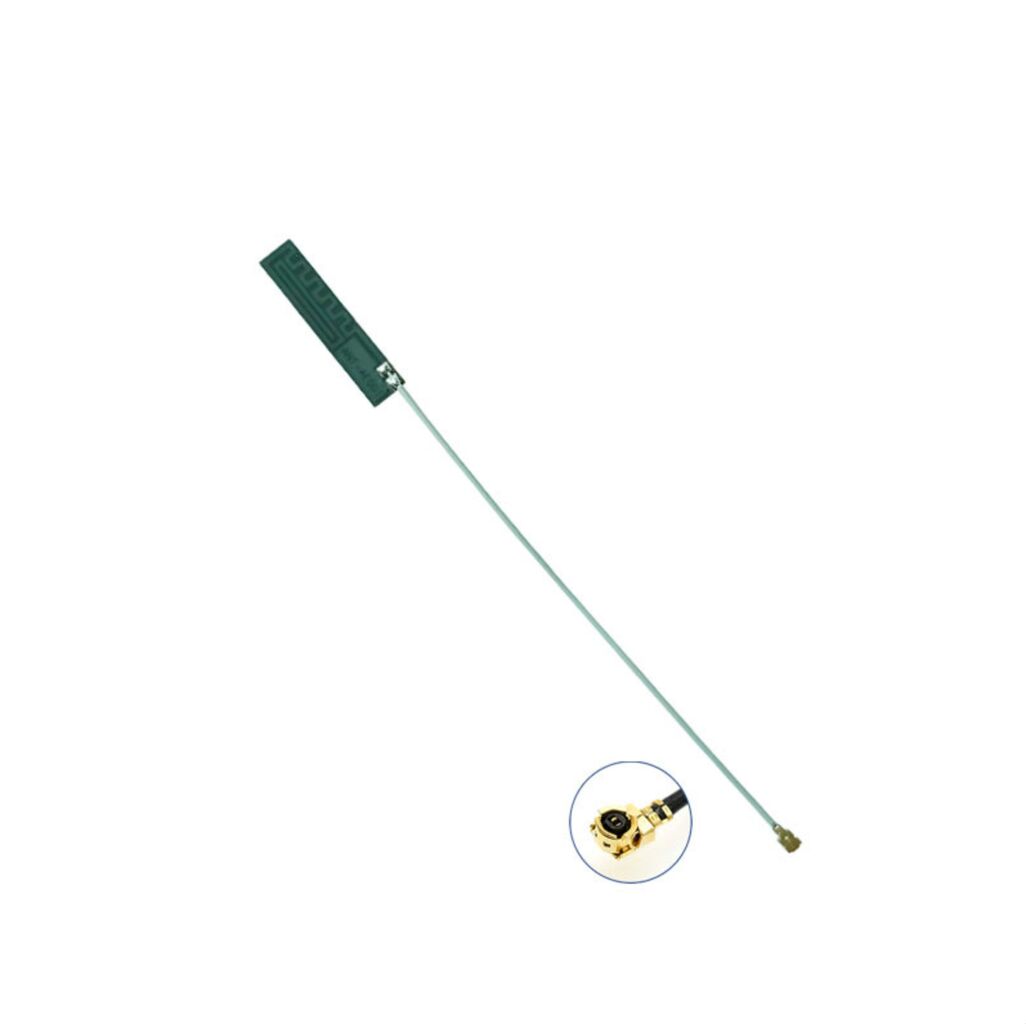

This ultra-thin, lightweight vertical polarized FPC antenna comes with short 1.13 cable and IPEX connector. It is flexible for internal embedding installation and widely used in compact GSM communication devices.
Product Detailed Description
This is a flexible FPC GSM antenna for GSM wireless signal reception and transmission.
Frequency Range: 824-896/880-960/1710-1880/1850-1990MHz
Gain: 2.15dBi
V.S.W.R: ≤2.0
Polarization: Vertical
Maximum Input Power: 50W
Impedance: 50Ω
Connector: IPEX
Cable Type: 1.13
Cable Length: 10cm
Antenna Radome Material: FPC
Dimensions: 33×8×0.2mm
Weight: 5g
Operating Temperature: -40℃ to +70℃
RoHS Compliant: YES
This ultra-thin, lightweight vertical polarized FPC antenna comes with short 1.13 cable and IPEX connector. It is flexible for internal embedding installation and widely used in compact GSM communication devices.
