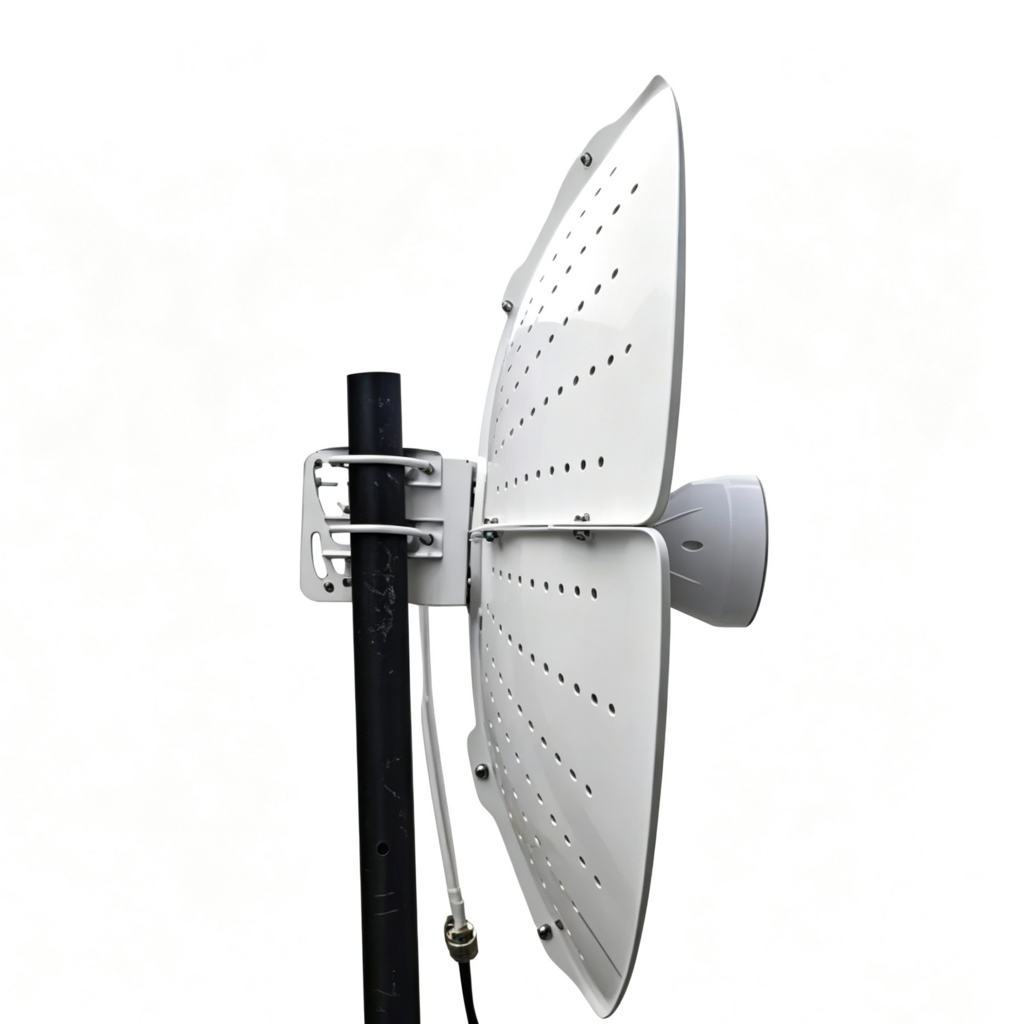

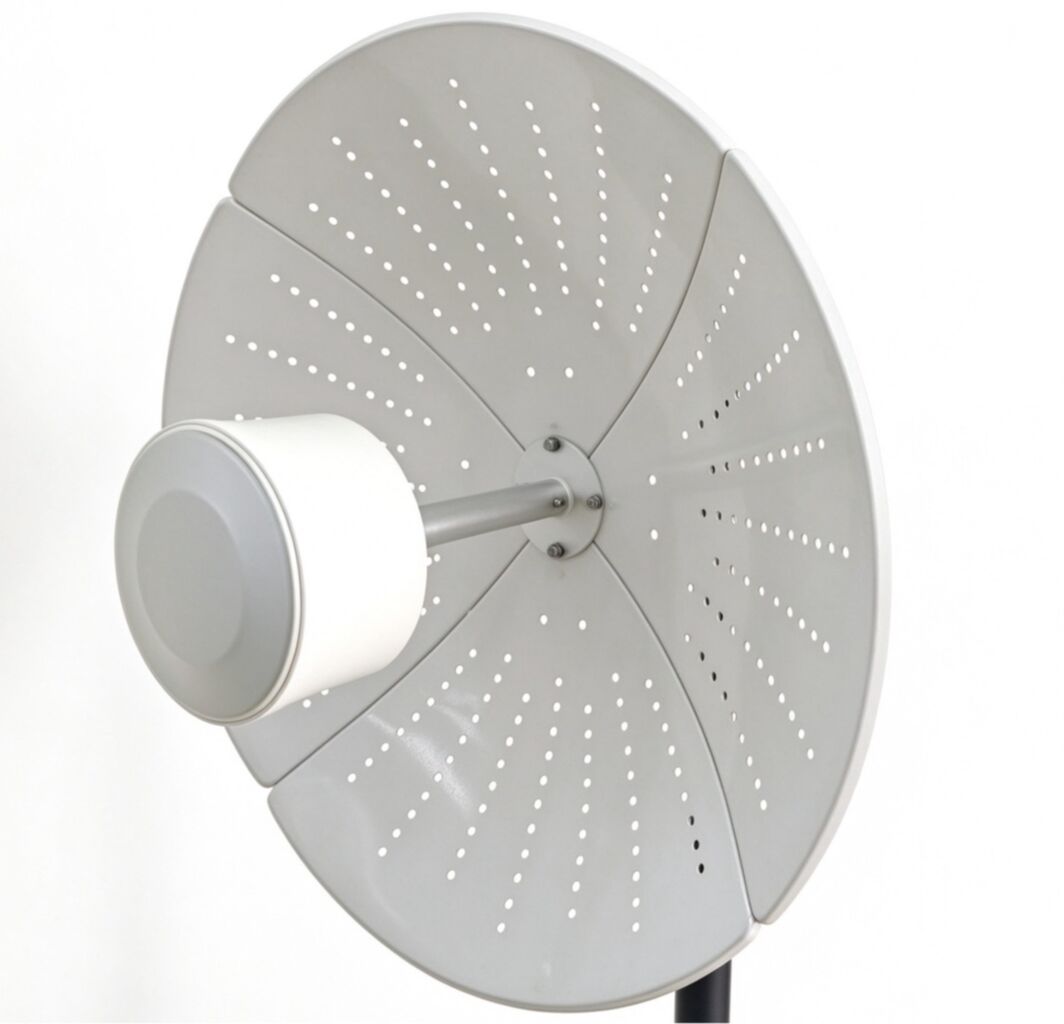

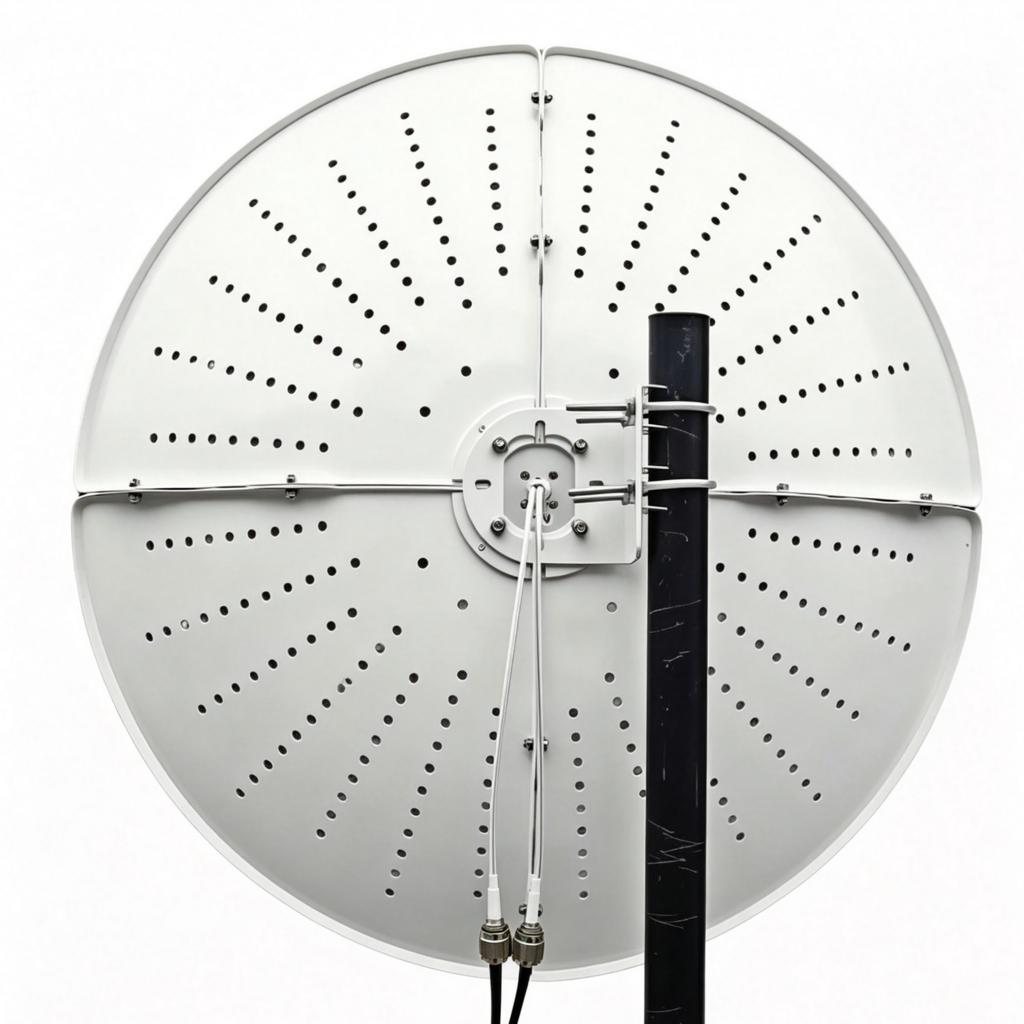

Outdoor 4G 5G Parabolic Antenna for Point-to-Point Wireless Links
Product Information
Key Specifications/ Special Features
Product Advantages
Dual-Band Coverage for Flexible Integration
The antenna operates across 698–960 MHz and 1710–3800 MHz, allowing system designers to consider two frequency ranges within one antenna assembly. This can help simplify equipment planning for compatible wireless communication systems.
Directional Design for Targeted Signal Coverage
With a specified gain of 9 dBi and 22 dBi across the respective bands, the antenna is suitable for applications requiring focused directional coverage. Its stated beamwidth of 16° horizontal and 12° elevation supports targeted antenna alignment.
Aluminum Alloy Construction for Outdoor Installation
The aluminum alloy structure and rated wind velocity of 60 m/s make this model suitable for outdoor deployment where structural durability is important. Connector customization is also available to support different installation and equipment requirements.
Core Applications
- Outdoor wireless communication systems
- Fixed wireless access infrastructure
- Point-to-point wireless links, subject to system compatibility
- Broadband wireless network installations
- Customized RF communication equipment
| Item | Specification |
|---|---|
| Model | TA-PWD7038-9/22S |
| Frequency Range | 698–960 / 1710–3800 MHz |
| Bandwidth | 262 / 2090 MHz |
| Gain | 9 / 22 dBi |
| Beamwidth | H: 16° / E: 12° |
| Front-to-Back Ratio | ≥ 25 dB |
| VSWR | ≤ 2.0 |
| Polarization | Vertical or Horizontal |
| Maximum Power | 100 W |
| Nominal Impedance | 50 Ω |
| Item | Specification |
|---|---|
| Antenna Type | Parabolic Antenna |
| Connector | N Female or Customized |
| Antenna Dimension | 0.6 m |
| Weight | 4 kg |
| Material | Aluminum Alloy |
| Rated Wind Velocity | 60 m/s |
FAQ
Q1: Can this antenna operate across both frequency bands?
Yes. The specified operating ranges are 698–960 MHz and 1710–3800 MHz. Please confirm compatibility with your equipment and target frequencies before ordering.
Q2: Is the antenna suitable for outdoor installation?
The antenna features an aluminum alloy structure and a rated wind velocity of 60 m/s. Please confirm the mounting structure and local installation requirements for your project.
Q3: Can the connector be customized?
Yes. The standard connector is N female, and customized connector options can be discussed according to your equipment interface requirements.
Q4: Can the antenna be supplied for OEM projects?
Connector customization is available. Other OEM requirements, including product labeling and packaging, should be confirmed with the supplier before ordering.
Q5: How should the antenna be aligned during installation?
The antenna has a directional beamwidth of H 16° and E 12°. Accurate alignment toward the intended signal direction is important for installation and system commissioning.
