SPCC 42u server rack with glass door
Product Information
Key Specifications/ Special Features
42u server rack with glass door and use in server room network cabinet
Features:
1. Comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard;
compatible with 19'' international standard, metric system and EISI standard.

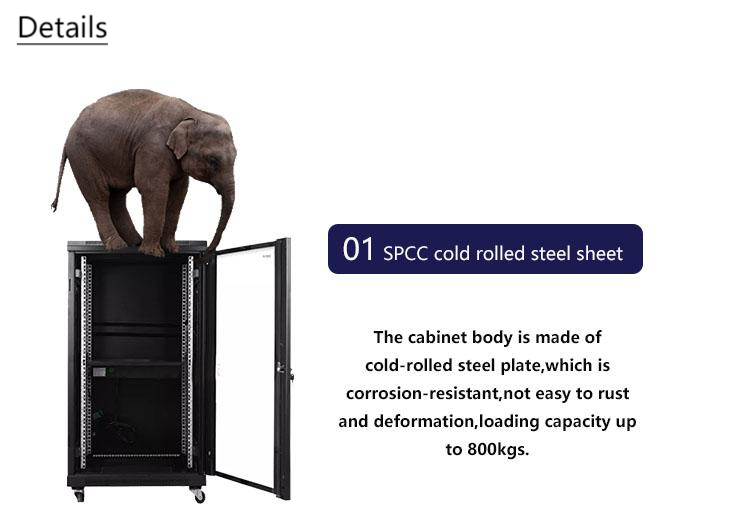

2. Reliable structure, static loading capacity: 500kg
3. Adjustable feet and castors are available, moving conveniently, and fixing reliability.
4. Baying together easy, quickly efficiently and firmly.

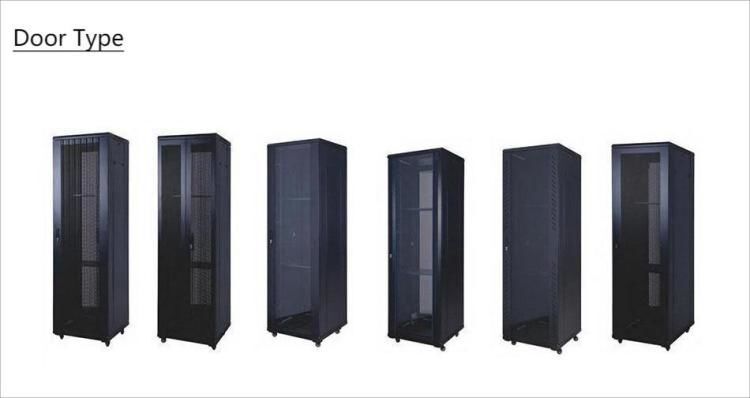

5. International popular tempered glass front door, steel rear door.
6. Optional cable entry on top cover and bottom panel, removable front & rear door and side panel facility, ventilation and rat-proof on the bottom.
7. Varies optional accessories, reliable quality.
8. Optional opening hole and varies specification upon customers' special requirements.
Surface finish:
Degreasing, pickling, phosphating, powder coating.
Material and Thickness:
Mounting profile: 2.0mm
Others: 1.2mm
Color:
RAL9004(black)
RAL7044(gray)
| Brand: | TUXIN | Column spacing: | 465mm (19 inch) |
| No: | TX-PB-6842 | Material: | SPCC cold rolled steel |
| Size: | 600mm*800mm*42U | Function: | Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc. |
| IOS test: | Pass ISO9001:2008 System | Thickness: | Mounting Profile: 2.0mm,others: 1.2/1.5mm |
| Surface treatment: | Degreasing,pickling,phosphating,power coating,etc. | Configuration: | Cage nuts and M6 screws: 40 sets. |
| Standard: | Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PARTI,DIN41494;PART7,GB/T3047.2-92 standard; compatible with ETSI standard. | Device Installation: | It is recommended to install network equipment/server device within 550 mm depth. |
42u server rack with glass door and use in server room network cabinet
Features:
1. Comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard;
compatible with 19'' international standard, metric system and EISI standard.
2. Reliable structure, static loading capacity: 500kg
3. Adjustable feet and castors are available, moving conveniently, and fixing reliability.
4. Baying together easy, quickly efficiently and firmly.
5. International popular tempered glass front door, steel rear door.
6. Optional cable entry on top cover and bottom panel, removable front & rear door and side panel facility, ventilation and rat-proof on the bottom.
7. Varies optional accessories, reliable quality.
8. Optional opening hole and varies specification upon customers' special requirements.
Surface finish:
Degreasing, pickling, phosphating, powder coating.
Material and Thickness:
Mounting profile: 2.0mm
Others: 1.2mm
Color:
RAL9004(black)
RAL7044(gray)
| Brand: | TUXIN | Column spacing: | 465mm (19 inch) |
| No: | TX-PB-6842 | Material: | SPCC cold rolled steel |
| Size: | 600mm*800mm*42U | Function: | Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc. |
| IOS test: | Pass ISO9001:2008 System | Thickness: | Mounting Profile: 2.0mm,others: 1.2/1.5mm |
| Surface treatment: | Degreasing,pickling,phosphating,power coating,etc. | Configuration: | Cage nuts and M6 screws: 40 sets. |
| Standard: | Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PARTI,DIN41494;PART7,GB/T3047.2-92 standard; compatible with ETSI standard. | Device Installation: | It is recommended to install network equipment/server device within 550 mm depth. |
