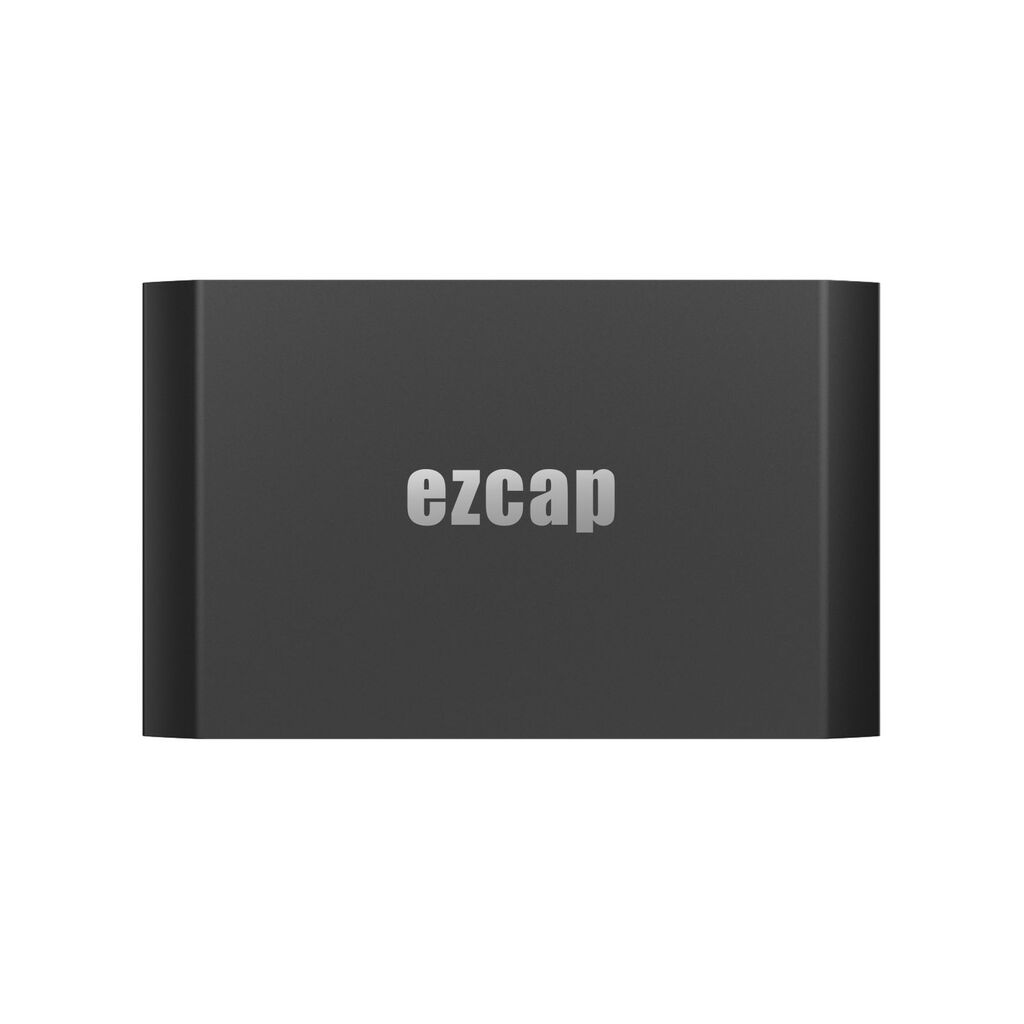

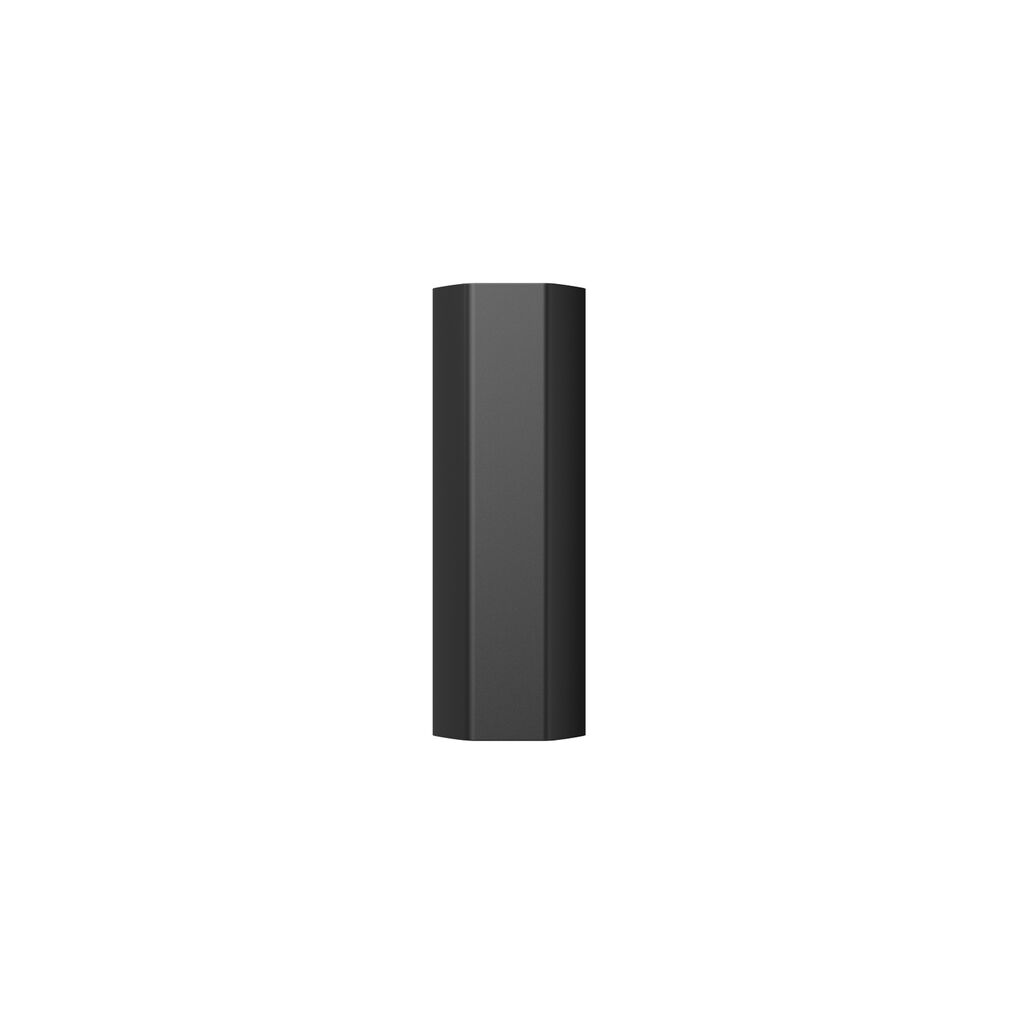

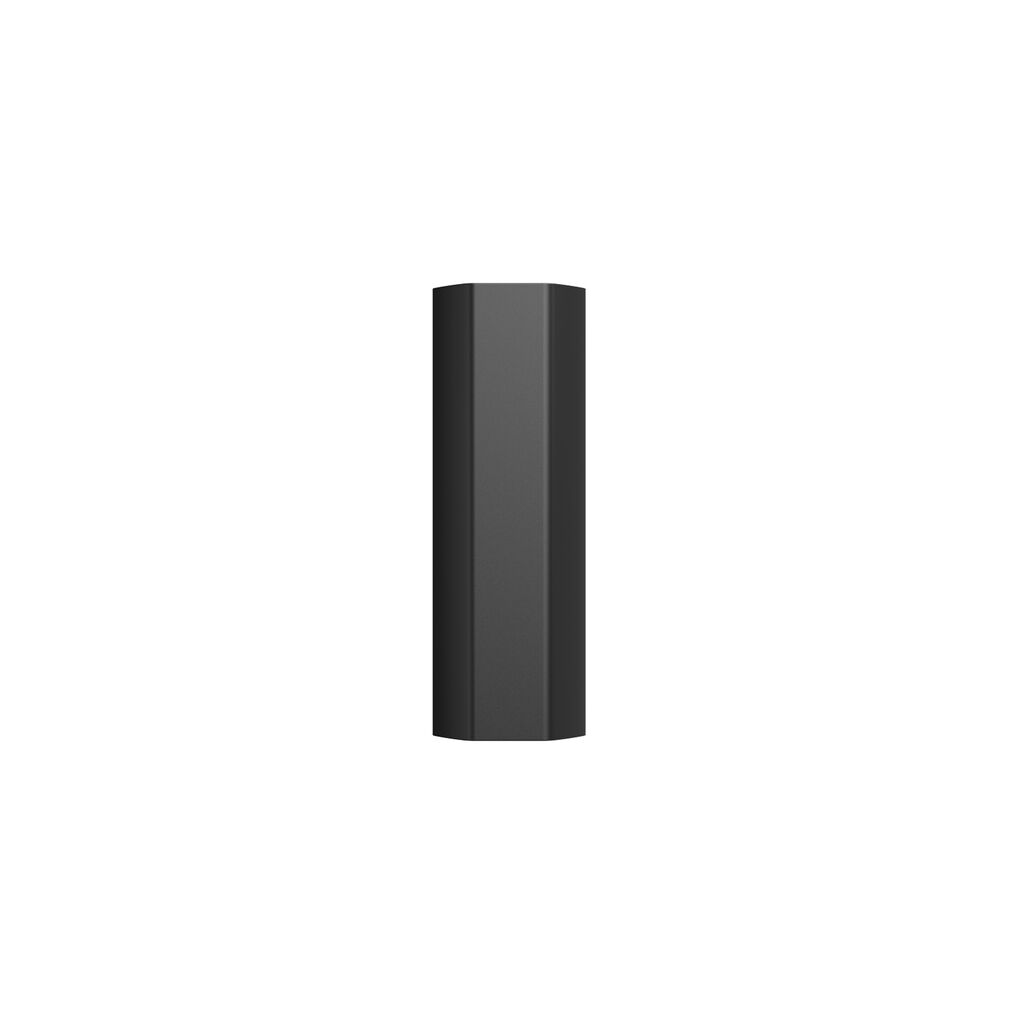

Wholesale Dual HDMI Input Multi-Platform Video Capture Card for game console PC Live Streaming
Product Information
Model Number
ezcap450-W
Brand Name
ezcap
Origin
China
Small Orders
Accepted
Key Specifications/ Special Features
Ezcap450 Live Streaming Capture Card Dual Camera Control Switcher Mode USB 3.0 HD 4k60 1080P Transmission

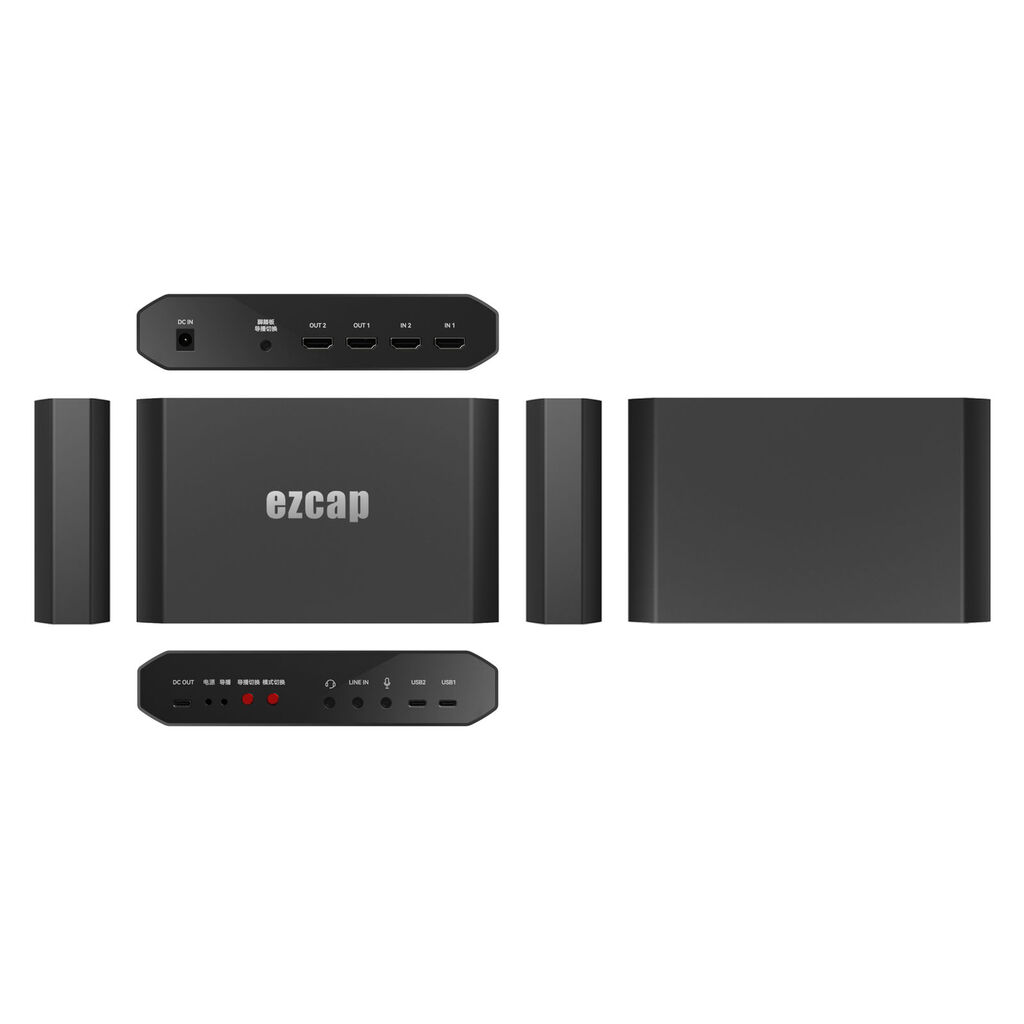

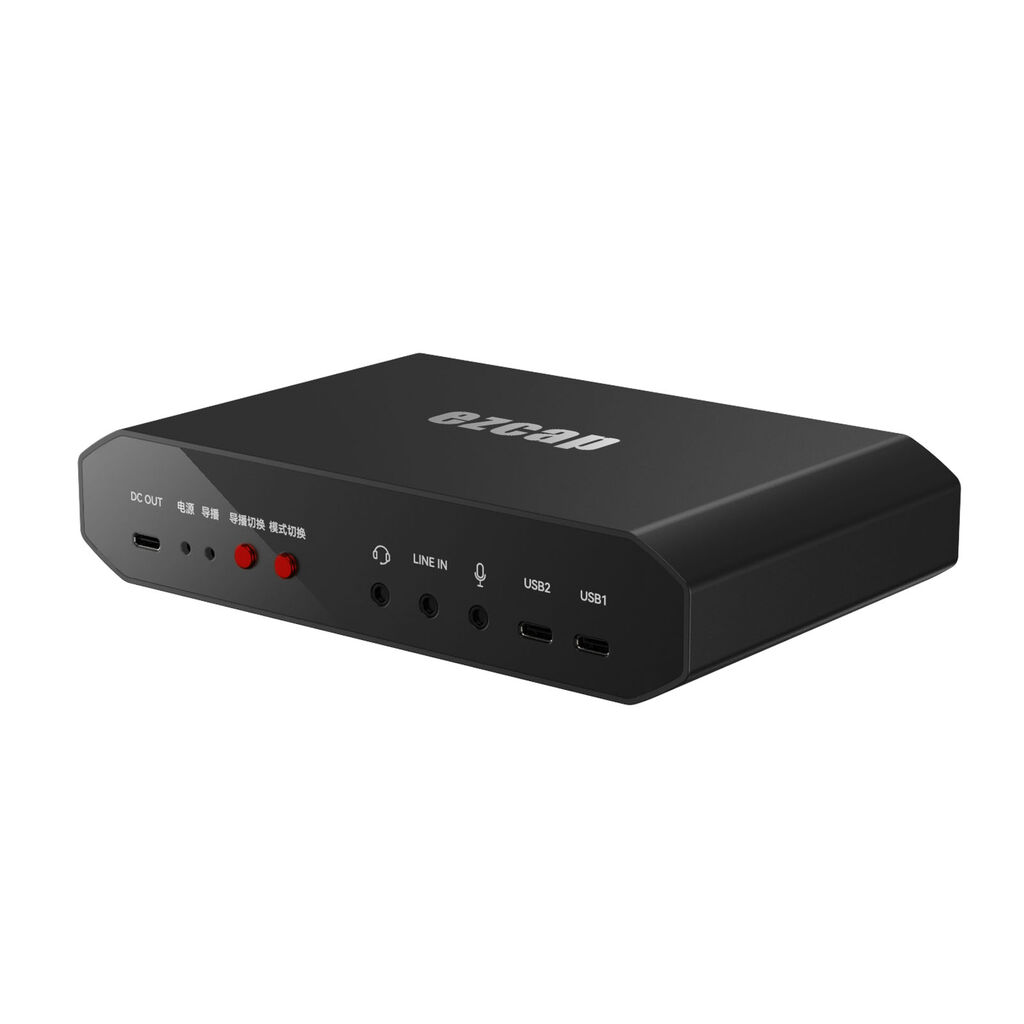

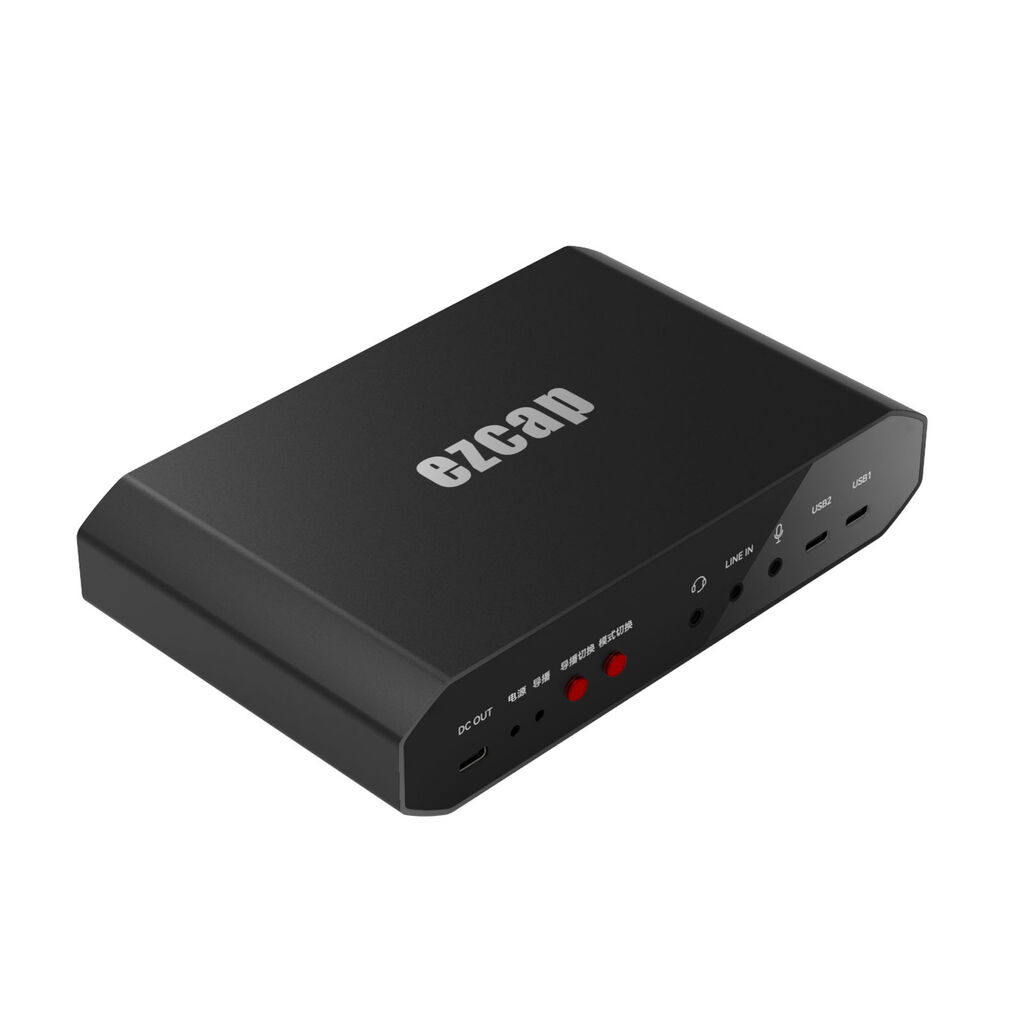

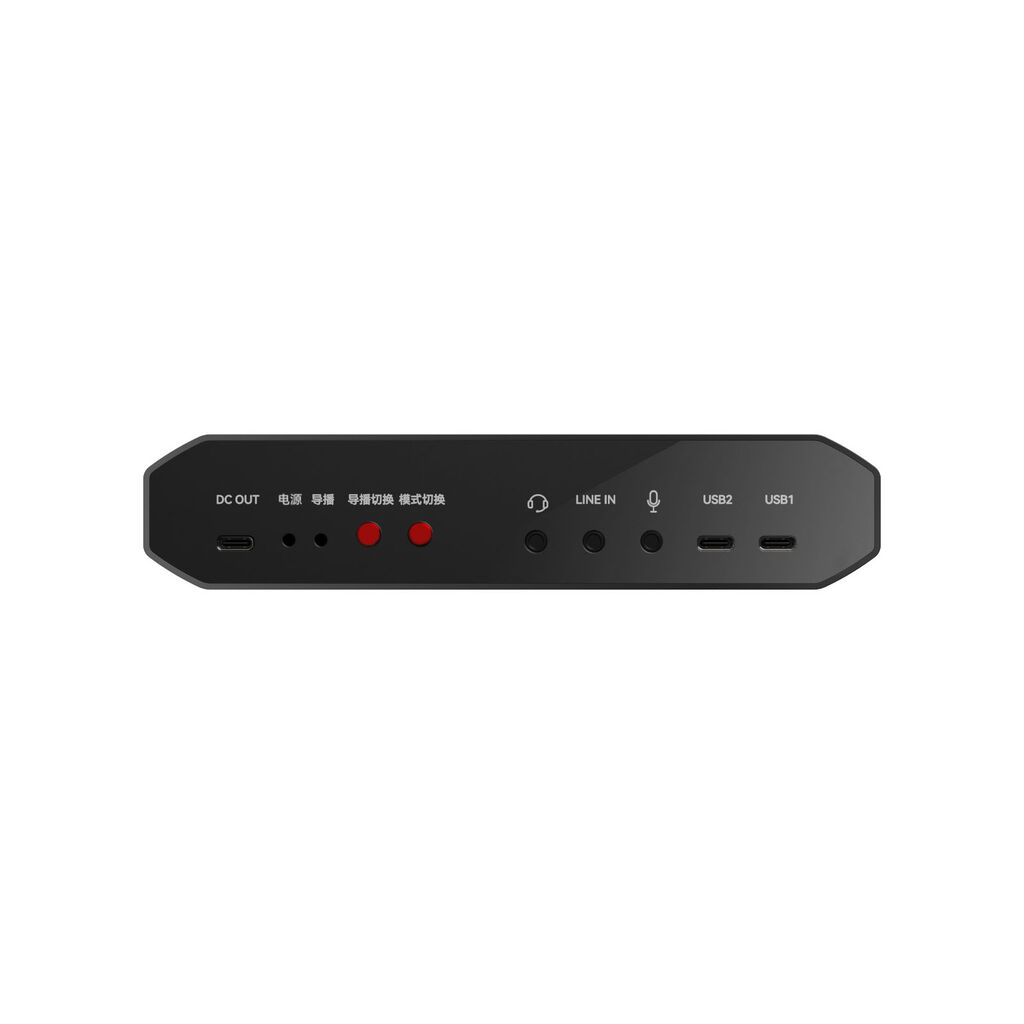

| Features | Dual-camera multi-platform live streaming capture card, featuring both Switcher mode and Transmission mode, enabling live streaming in different modes with dual cameras. In Switcher mode, you can simultaneously live stream to up to four platforms from a single screen. By pressing the source button, you can toggle between camera positions 1 and 2. In Transmission mode, it can achieve single video live streaming on tow platforms for HDMI input 1 and 2, or two platforms in PIP/POP mode. Equipped with a microphone input, an audio line input, and a headset jack for mixing and monitoring. |

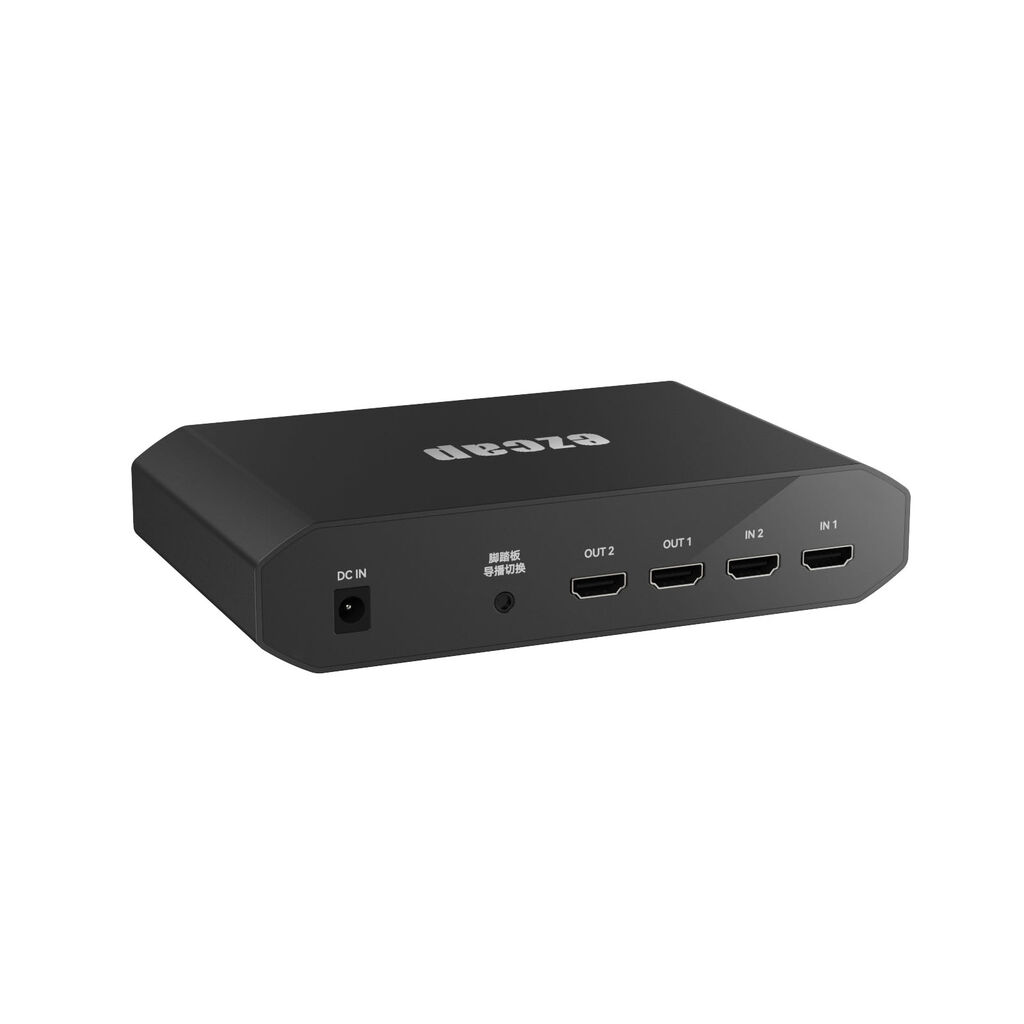

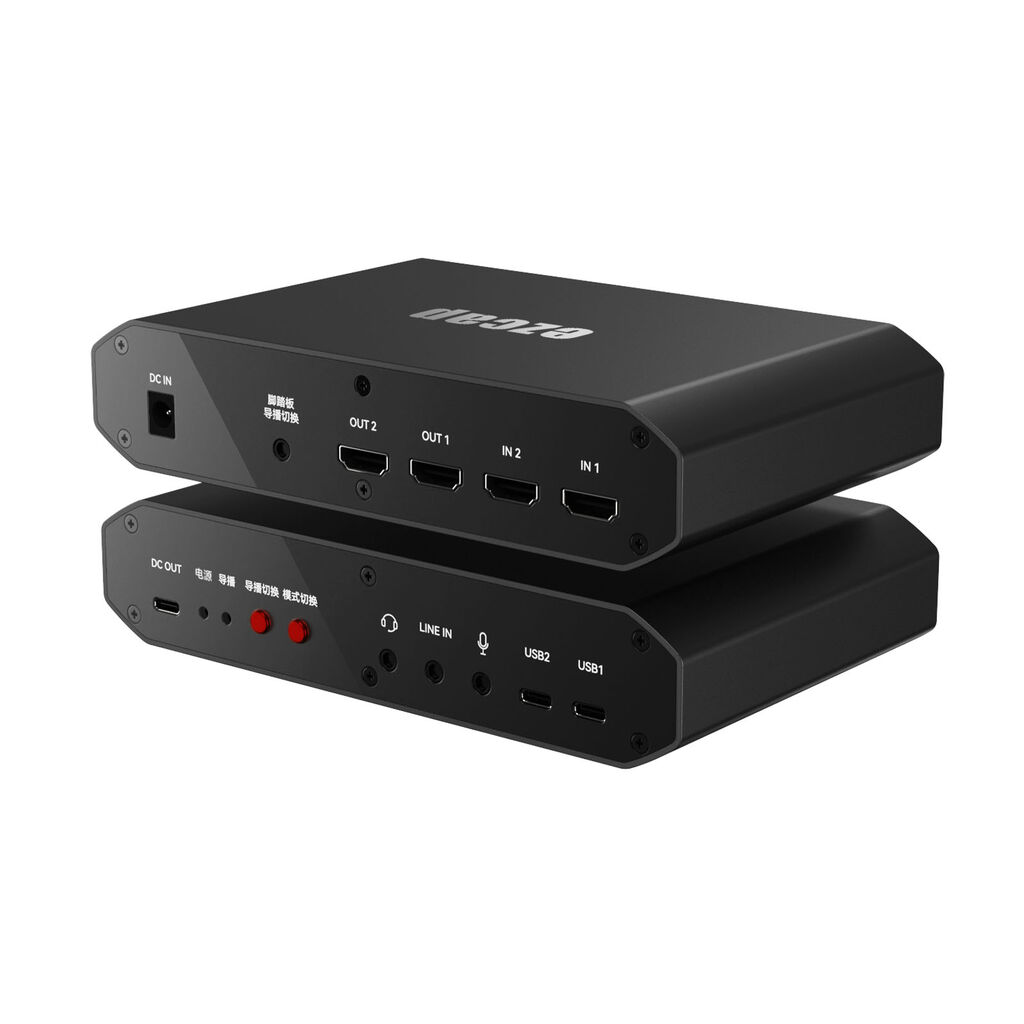

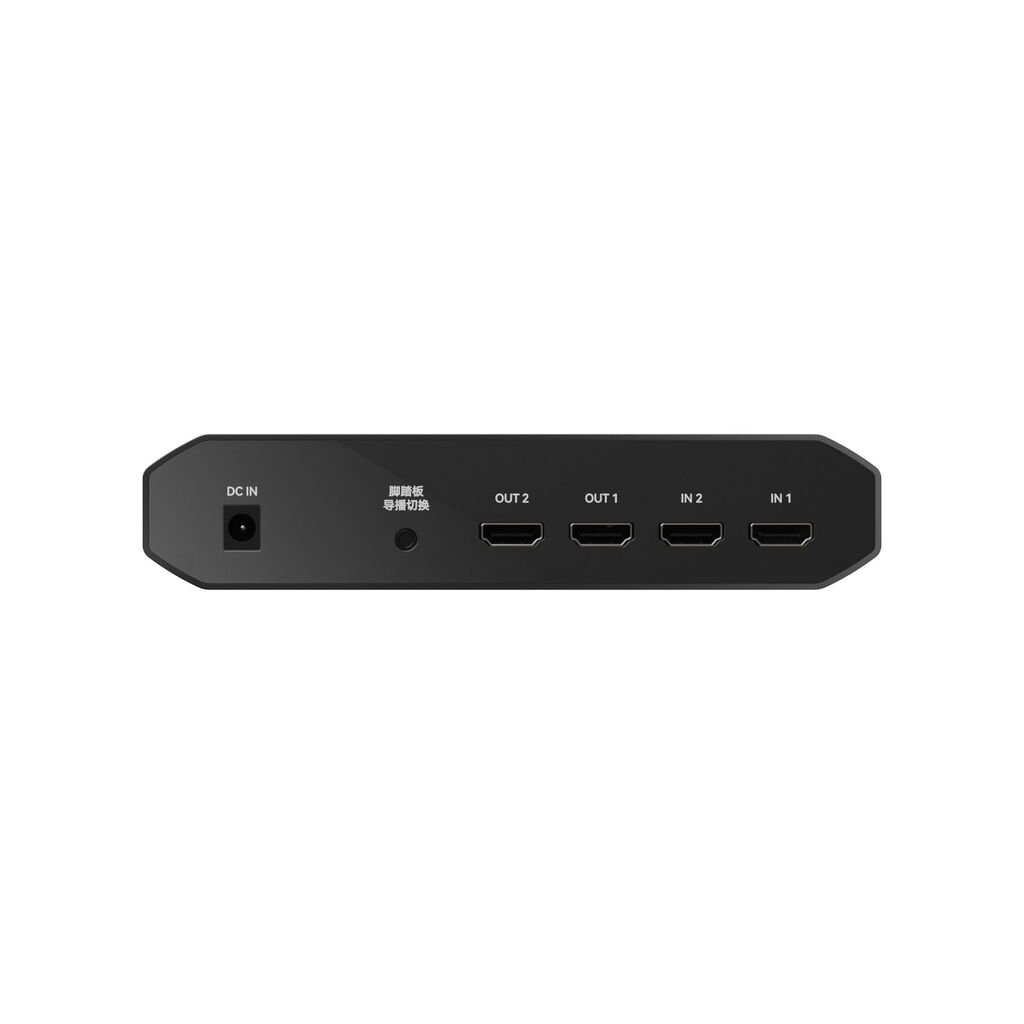

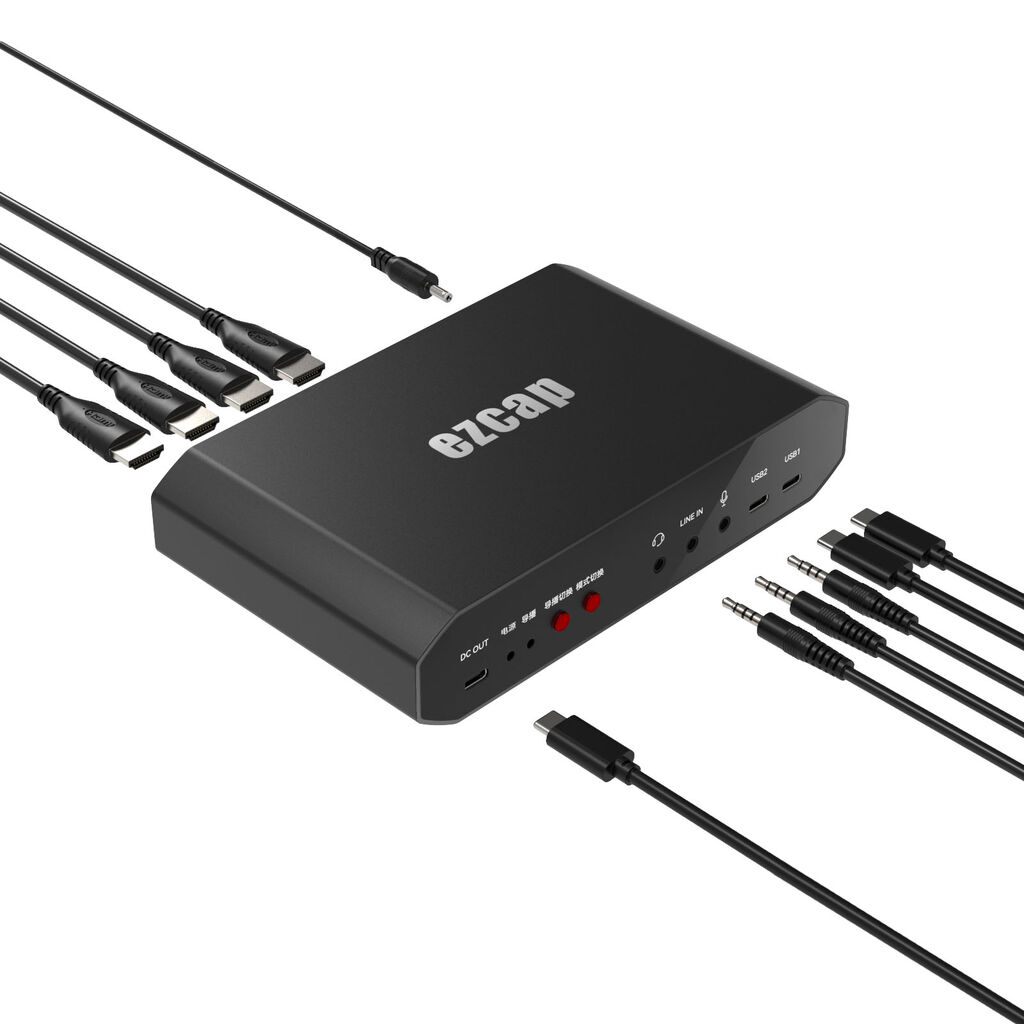

| Specifications | Interface: USB-C 3.2 Gen 2 Video input: HDMI 1.4 x 2 Video input specifications: HDMI 1.4, 2160p30/25/24, 1440p60, 1080p60/50/30/25/24, 720p60/50 Does not support i-signal input. Video output: HDMI 1.4 x 2 Video output specifications: HDMI 1.4, 2160p30 Audio input: 3.5mm 4-pole headset x 1, 3.5mm 3-pole line input x 1 , 3.5mm 3-pole Microphone x 1 Audio output: 3.5mm 4-pole headset x 1 Foot switch: 3.5mm 3-pole connector foot switch x 1 USB output: USB-C x 2, Supports USB 3.2 Gen 2 Max. USB Output: 2160p60/MJPG, 30fps/NV12, 25fps/YUY2 1440p120/MJPG, 60fps/NV12, 50fps/YUY2, 30fps/RGB24 1080p120/MJPG/NV12, 60fps/YUY2/RGB24 720p120/MJPG/NV12/YUY2, 60fps/RGB24 Status Indicator: Green mode indicator x 1, red power indicator x 1 Power supply: DC 12V 2A User interface: Source switch button x 1, Mode switch button x 1 |
| System Requirements | Windows 10/11 x 64 , USB 3.2 Gen 2 port x2. Dual-platform: CPU/Intel Core i7-10XXX or i5-12XXX, Graphics card/NVIDIA RTX 3060/4060, Memory/16GB DDR5 Four platforms: CPU/Intel Core i7-12XXX or i5-14XXX, graphics card/NVIDIA RTX 3060Ti/4060Ti, memory/32GB DDR5 It is recommended to use two or more computers for live streaming on four platforms. |
| Package contents | 450 CamLink Plus x1,12V DC power supply x1, Type-C to USB-A cable x2, Manual x1 |
| Dimensions | 180 ( L) × 110 (W) × 38 (H) mm |
Ezcap450 Live Streaming Capture Card Dual Camera Control Switcher Mode USB 3.0 HD 4k60 1080P Transmission
| Features | Dual-camera multi-platform live streaming capture card, featuring both Switcher mode and Transmission mode, enabling live streaming in different modes with dual cameras. In Switcher mode, you can simultaneously live stream to up to four platforms from a single screen. By pressing the source button, you can toggle between camera positions 1 and 2. In Transmission mode, it can achieve single video live streaming on tow platforms for HDMI input 1 and 2, or two platforms in PIP/POP mode. Equipped with a microphone input, an audio line input, and a headset jack for mixing and monitoring. |
| Specifications | Interface: USB-C 3.2 Gen 2 Video input: HDMI 1.4 x 2 Video input specifications: HDMI 1.4, 2160p30/25/24, 1440p60, 1080p60/50/30/25/24, 720p60/50 Does not support i-signal input. Video output: HDMI 1.4 x 2 Video output specifications: HDMI 1.4, 2160p30 Audio input: 3.5mm 4-pole headset x 1, 3.5mm 3-pole line input x 1 , 3.5mm 3-pole Microphone x 1 Audio output: 3.5mm 4-pole headset x 1 Foot switch: 3.5mm 3-pole connector foot switch x 1 USB output: USB-C x 2, Supports USB 3.2 Gen 2 Max. USB Output: 2160p60/MJPG, 30fps/NV12, 25fps/YUY2 1440p120/MJPG, 60fps/NV12, 50fps/YUY2, 30fps/RGB24 1080p120/MJPG/NV12, 60fps/YUY2/RGB24 720p120/MJPG/NV12/YUY2, 60fps/RGB24 Status Indicator: Green mode indicator x 1, red power indicator x 1 Power supply: DC 12V 2A User interface: Source switch button x 1, Mode switch button x 1 |
| System Requirements | Windows 10/11 x 64 , USB 3.2 Gen 2 port x2. Dual-platform: CPU/Intel Core i7-10XXX or i5-12XXX, Graphics card/NVIDIA RTX 3060/4060, Memory/16GB DDR5 Four platforms: CPU/Intel Core i7-12XXX or i5-14XXX, graphics card/NVIDIA RTX 3060Ti/4060Ti, memory/32GB DDR5 It is recommended to use two or more computers for live streaming on four platforms. |
| Package contents | 450 CamLink Plus x1,12V DC power supply x1, Type-C to USB-A cable x2, Manual x1 |
| Dimensions | 180 ( L) × 110 (W) × 38 (H) mm |
