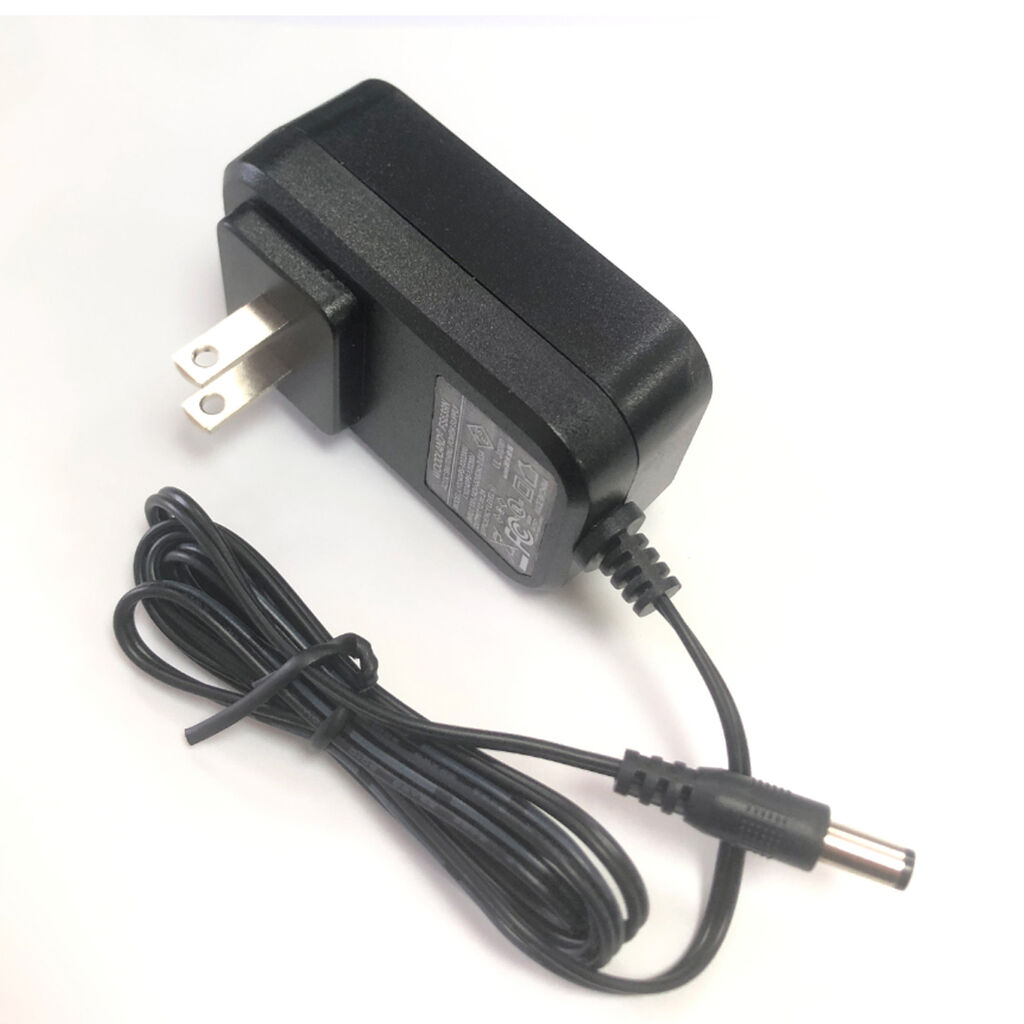

Wholesale OEM ODM 24V 1A 24W CE ROHS UL AC/DC adapters.KRE-2401003-#0041

Model Number KRE-2401003
Brand Name KRECO<BR>BILLY
origin China
Small Orders Accepted
Key Specifications/ Special Features:
Features:
High-efficiency
High-reliability
With fuse,
Light and convenient to plug-in
Low working temperature and low ripple noise
Working environment:
Operating temperature: 0 to 40°C
Storage temperature: -20 to 65°C
Operating humidity: 10 to 95% RH
Storage humidity: 10 to 95% RH
Emission and immunity:
FCC Part15 Class B
En55013: 2001+A1: 2003+A2: 2006
En55020: 2007
EN61000-3-3: 2008
EN61000-3-2: 2006+A2: 2009
AN/NZS CISPR 13:2012
Subpart B: 2014
Safety approvals:
BS En60065/AS/NZS60065
IEC60065/EN60065/UL60065
J60065/GB8900/K60065
Certifications: UL, cUL, CE, CCC, PSE, GS, TUV, SAA, CQC, ETL, CETL, CB, FCC, EMC, RoHS
Input Specifications:
Inpout Voltage: 100 to 240V AC
Input frequency range: 50 and 60Hz
Input current: 150mA (maximum)
No loading power: 0.3W (240V AC)
Inrush current (240V AC): 25A, cold 25°C
Plug type: wall mount
Efficiency: minimum 70 to maximum 90%
Output Specifications:
Power: 24W
Output voltage: 24V DC
Output current: 1000mA
Voltage precision: 5%
Ripple and noise: 100mV
Regulation: Line: ±1%, Load: ±5%
DC cord: 5.5mm outer diameter
Normal wire length: 1.5m
Reliability:
100% full loading, 40°C, 4 hours each part of this series can be sold separately
Leakage current: 0.25mA, maximum at 264V AC
MTBF: meet MIL-HDBK-217F over 50,000 hours, full loading, 25°C burn-in
Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary
Protection:
Over-current protection
Over-voltage protection
Short-circuit protection
Thermal shutdown capability
Over-load protection
Packing:
PE bag and Individual white box
Carton dimensions: 470x350x240mm
Quantity: 100 pieces per carton
Gross weight: 9kg (maximum)
