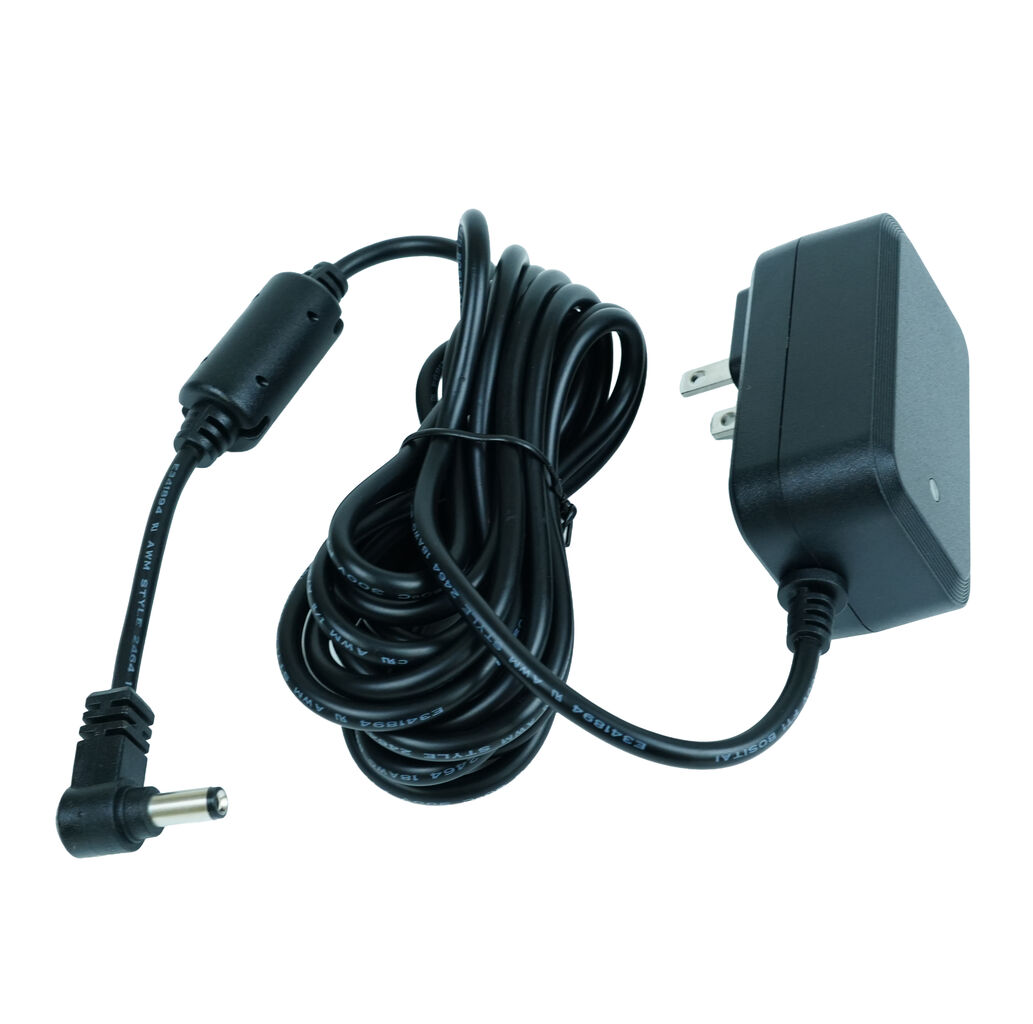

Wholesale OEM ODM 5V 2.4A 12W CE ROHS US AC/DC adapters,KRE024MPS-050240x-5V2.4A

5VDC 2.4A Series External Wall Mount Switching Power Supply (AC/DC Adapter, AC/DC Switching Power Adapter), Universal Input.

Custom designs available

P/N: KRE024MPS-050240x

Model No: KRE024MPS

Input Specifications:

Input voltage: 100 to 240V AC

Input Frequency Range: 50 - 60Hz

Current: 650mA

Plug Type: Wall Mount

Output Specifications: Power: 12W

DC Voltage: 5VDC

Output Current: 2.4AV

Voltage accuracy: 5%

Voltage regulation:

Line: ±1%.

Load: ±5%.

Normal wire length: 1.2m

Features: high efficiency and high reliability with fuse, easy to plug and unplug low operating temperature, low ripple noise

Reliability: 100% full load, 40°C, 4 hours Each component of this series can be sold separately

Leakage current: 0. 25mA, max. 264V AC

MTBF: MIL-HDBK-217F, over 50,000 hours, full load, 25°C

Aging withstand voltage: 3kV, 1 minute, 10mA (max), between primary and secondary

Certifications: UL, cUL, CE, CE, CE, CE, CE, CE, CE UL, cUL, CE, CCC, PSE, GS, TUV, SAA, CQC, ETL, CETL, CB, FCC, EMC, RoHS

Working Environment:

Operating Temperature: 0 to 40°C

Storage Temperature: 0 to 40°C 0 to 40°C

Storage temperature: -20 to 80°C

Storage humidity: 10 to 95 per cent

RHO operating humidity: 10 to 95 per cent

RHP Protection: Thermal shutdown function Short circuit protection Over current protection Over voltage protection
