Compact Ceramic GPS Antenna with IPEX Connector for IoT Devices
Product Information
Key Specifications/ Special Features
This active GPS ceramic antenna integrates a compact ceramic antenna element with a built-in low noise amplifier (LNA), providing a practical solution for GPS signal reception in embedded electronic devices. Designed for the 1575.42 MHz frequency band, it combines a small antenna footprint with signal amplification to support integration into space-constrained equipment.
The antenna features a 25 × 25 mm overall antenna dimension, an IPEX connector and a short coaxial cable for flexible internal installation. With a low noise figure of up to 2 dB and an LNA gain of at least 28 dB, it is suitable for positioning, navigation and tracking applications requiring a compact active GPS antenna solution.
Cable length, cable model and connector options can be customized according to project requirements, making it suitable for OEM and ODM product development.
| Item | Specification |
|---|---|
| Antenna Type | Active GPS Ceramic Antenna |
| Frequency Range | 1575.42 ± 3 MHz |
| Antenna Impedance | 50 Ω |
| Polarization | Circular |
| Axial Ratio | ≤ 5 dB |
| Horizontal Coverage | 360° |
| Antenna Output VSWR | ≤ 1.5 |
| Maximum Antenna Gain | 4 dBi |
| 10 dB Bandwidth | ±5 MHz |
| LNA Gain | ≥ 28 dB |
| LNA Noise Figure | ≤ 2 dB |
| LNA Output VSWR | ≤ 2.0 |
| In-band Flatness | ±1.0 dB |
| Output P1dB Compression | ≥ −10 dBm |
| Out-of-band Rejection | > 35 dBc at 100 MHz offset |
| Working Voltage | 3–5 V |
| Working Current | ≤ 20 mA |

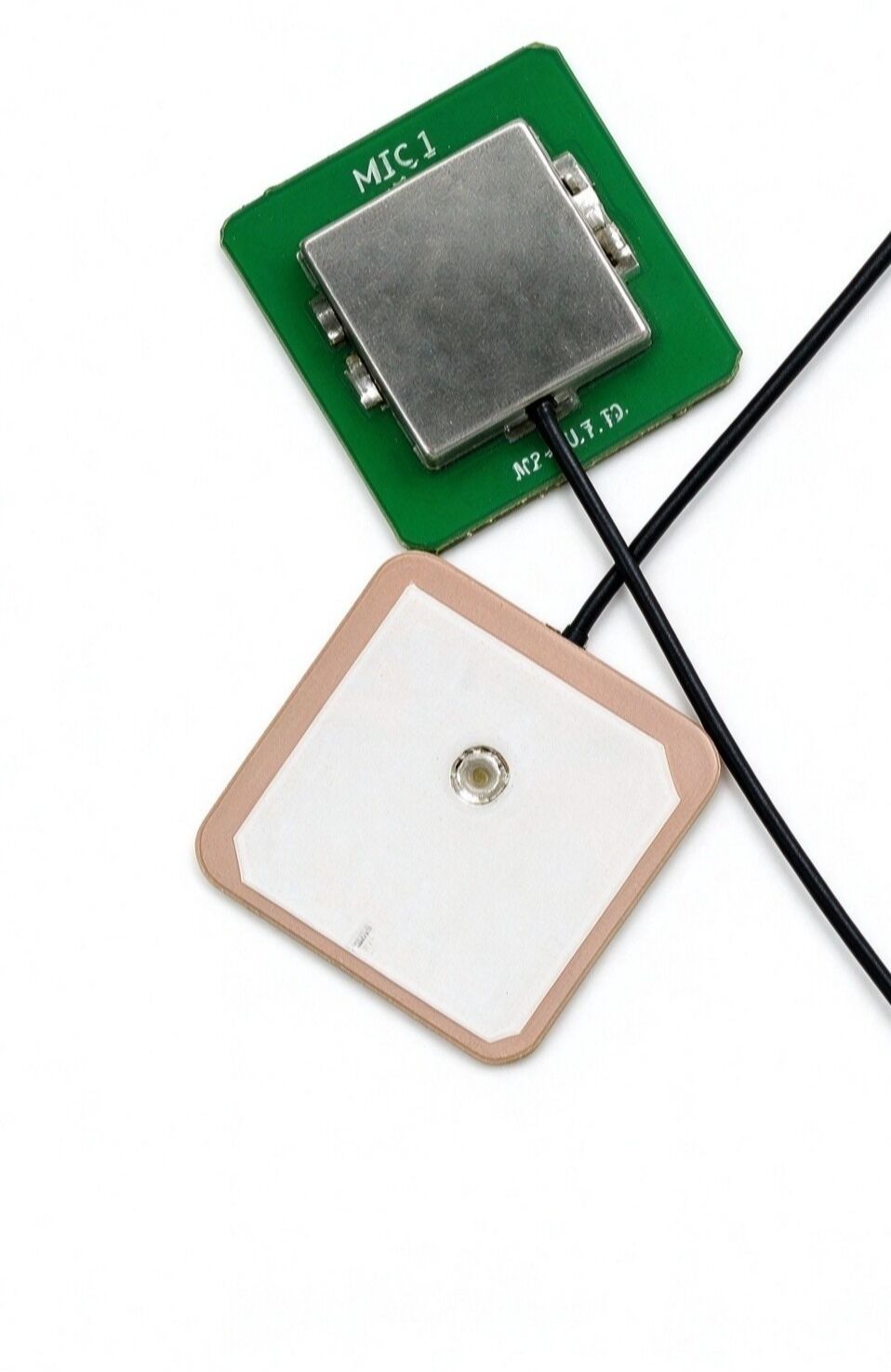

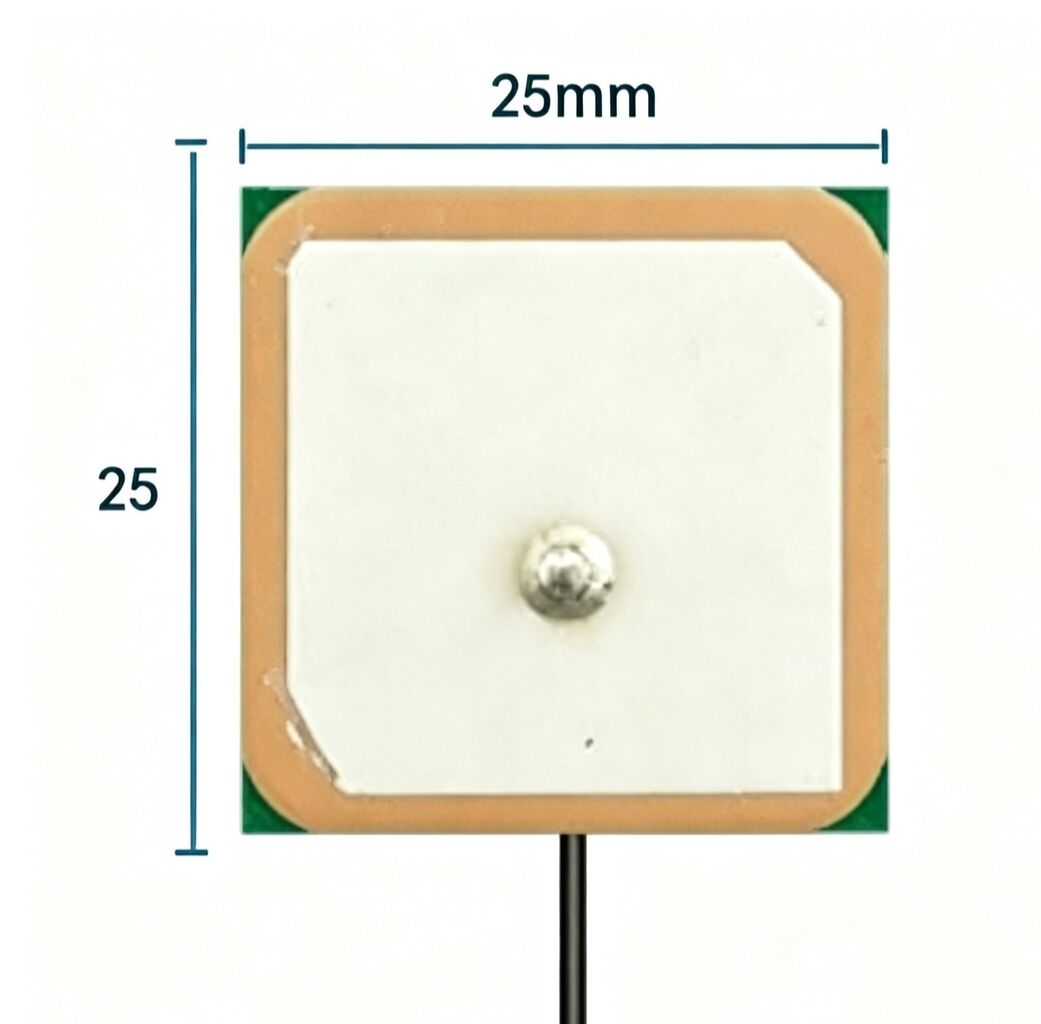

| Overall Antenna Dimension | 25 × 25 × 6.5 mm |

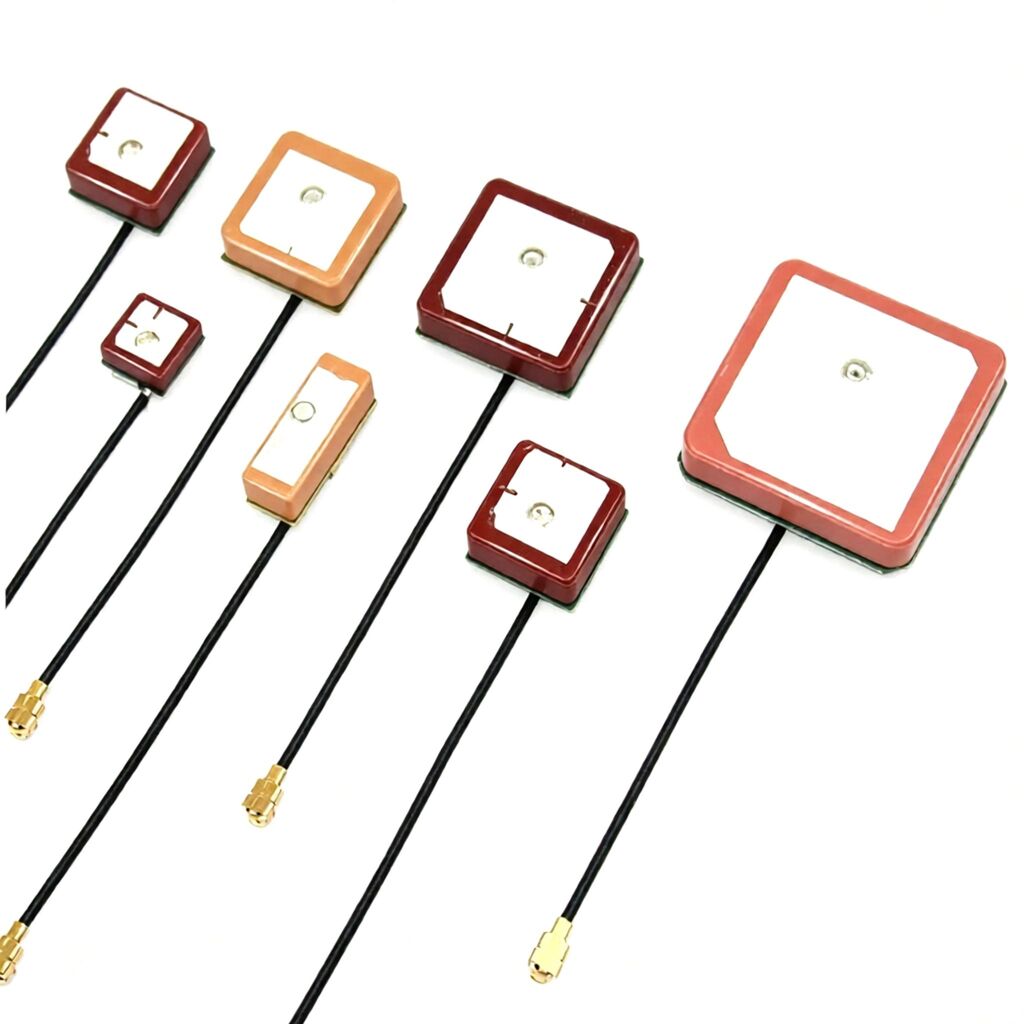

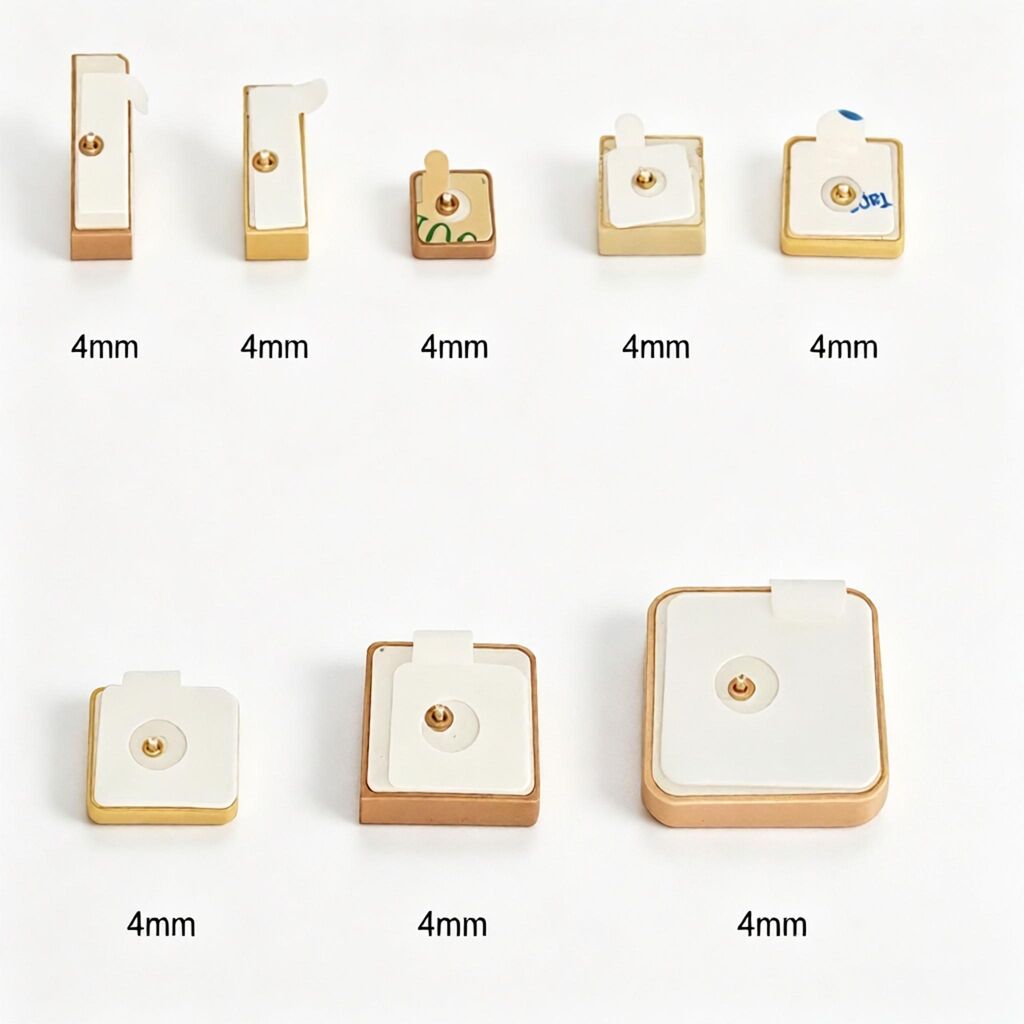

| Ceramic Element Dimension | 25 × 25 × 4 mm |
| Cable Model | RG113 or customized |
| Cable Length | 85 ± 5 mm or customized |
| Connector | IPEX or customized |
| Operating Temperature | −40°C to +65°C |
| Storage Temperature | −50°C to +85°C |
| Humidity | 40–95% |
Product Advantages
Integrated Antenna and LNA Design
The ceramic antenna element and low noise amplifier are integrated into one compact assembly. This design simplifies internal antenna integration and provides signal amplification for GPS reception applications.
Compact Structure for Embedded Installation
With an overall dimension of 25 × 25 × 6.5 mm and a ceramic element measuring 25 × 25 × 4 mm, the antenna is suitable for electronic products with limited internal installation space. The short coaxial cable and IPEX connector support convenient connection to compatible equipment.
Flexible OEM and ODM Customization
Cable length, cable type and connector configuration can be customized to meet different device layouts and integration requirements. This flexibility supports manufacturers developing GPS-enabled electronic products for different applications.
Core Applications
- GPS Navigation Devices: Internal GPS reception for compact navigation equipment.
- Vehicle Tracking Systems: Integration into compatible GPS tracking terminals.
- IoT Positioning Devices: GPS reception for connected devices requiring location information.
- Portable Electronic Equipment: Embedded antenna solutions for compact positioning products.
- GPS Monitoring Terminals: Integration into compatible monitoring and location-based equipment.
- OEM Electronic Devices: Customized antenna assemblies for GPS-enabled product development.
FAQ
Q1: Is this an active GPS antenna?
Yes. The antenna integrates a low noise amplifier (LNA) with a ceramic GPS antenna element and requires a 3–5 V DC supply.
Q2: Can the cable length and connector be customized?
Yes. The standard cable length is 85 ± 5 mm. Cable length, cable model and connector options can be customized according to your device design.
Q3: What should be considered when integrating this antenna into a device?
The host device should provide a compatible 3–5 V power supply and a matching RF connection. The antenna installation position and surrounding materials should also be considered during integration.
Q4: Can you provide OEM or ODM services?
Yes. Custom cable configurations and connector options can be discussed according to project requirements and production needs.
Q5: What applications is this antenna designed for?
It is designed for GPS reception in compatible navigation, tracking, positioning and IoT electronic devices.
We support customized antenna solutions for GPS-enabled electronic devices. Available customization options include cable length, coaxial cable model and connector type. Our team can work with customers to evaluate antenna dimensions, connection requirements and installation conditions for different product designs.
OEM & ODM Support
OEM and ODM requirements are welcome for project evaluation, sample development and bulk production.
This active GPS ceramic antenna integrates a compact ceramic antenna element with a built-in low noise amplifier (LNA), providing a practical solution for GPS signal reception in embedded electronic devices. Designed for the 1575.42 MHz frequency band, it combines a small antenna footprint with signal amplification to support integration into space-constrained equipment.
The antenna features a 25 × 25 mm overall antenna dimension, an IPEX connector and a short coaxial cable for flexible internal installation. With a low noise figure of up to 2 dB and an LNA gain of at least 28 dB, it is suitable for positioning, navigation and tracking applications requiring a compact active GPS antenna solution.
Cable length, cable model and connector options can be customized according to project requirements, making it suitable for OEM and ODM product development.
| Item | Specification |
|---|---|
| Antenna Type | Active GPS Ceramic Antenna |
| Frequency Range | 1575.42 ± 3 MHz |
| Antenna Impedance | 50 Ω |
| Polarization | Circular |
| Axial Ratio | ≤ 5 dB |
| Horizontal Coverage | 360° |
| Antenna Output VSWR | ≤ 1.5 |
| Maximum Antenna Gain | 4 dBi |
| 10 dB Bandwidth | ±5 MHz |
| LNA Gain | ≥ 28 dB |
| LNA Noise Figure | ≤ 2 dB |
| LNA Output VSWR | ≤ 2.0 |
| In-band Flatness | ±1.0 dB |
| Output P1dB Compression | ≥ −10 dBm |
| Out-of-band Rejection | > 35 dBc at 100 MHz offset |
| Working Voltage | 3–5 V |
| Working Current | ≤ 20 mA |
| Overall Antenna Dimension | 25 × 25 × 6.5 mm |
| Ceramic Element Dimension | 25 × 25 × 4 mm |
| Cable Model | RG113 or customized |
| Cable Length | 85 ± 5 mm or customized |
| Connector | IPEX or customized |
| Operating Temperature | −40°C to +65°C |
| Storage Temperature | −50°C to +85°C |
| Humidity | 40–95% |
Product Advantages
Integrated Antenna and LNA Design
The ceramic antenna element and low noise amplifier are integrated into one compact assembly. This design simplifies internal antenna integration and provides signal amplification for GPS reception applications.
Compact Structure for Embedded Installation
With an overall dimension of 25 × 25 × 6.5 mm and a ceramic element measuring 25 × 25 × 4 mm, the antenna is suitable for electronic products with limited internal installation space. The short coaxial cable and IPEX connector support convenient connection to compatible equipment.
Flexible OEM and ODM Customization
Cable length, cable type and connector configuration can be customized to meet different device layouts and integration requirements. This flexibility supports manufacturers developing GPS-enabled electronic products for different applications.
Core Applications
- GPS Navigation Devices: Internal GPS reception for compact navigation equipment.
- Vehicle Tracking Systems: Integration into compatible GPS tracking terminals.
- IoT Positioning Devices: GPS reception for connected devices requiring location information.
- Portable Electronic Equipment: Embedded antenna solutions for compact positioning products.
- GPS Monitoring Terminals: Integration into compatible monitoring and location-based equipment.
- OEM Electronic Devices: Customized antenna assemblies for GPS-enabled product development.
FAQ
Q1: Is this an active GPS antenna?
Yes. The antenna integrates a low noise amplifier (LNA) with a ceramic GPS antenna element and requires a 3–5 V DC supply.
Q2: Can the cable length and connector be customized?
Yes. The standard cable length is 85 ± 5 mm. Cable length, cable model and connector options can be customized according to your device design.
Q3: What should be considered when integrating this antenna into a device?
The host device should provide a compatible 3–5 V power supply and a matching RF connection. The antenna installation position and surrounding materials should also be considered during integration.
Q4: Can you provide OEM or ODM services?
Yes. Custom cable configurations and connector options can be discussed according to project requirements and production needs.
Q5: What applications is this antenna designed for?
It is designed for GPS reception in compatible navigation, tracking, positioning and IoT electronic devices.
We support customized antenna solutions for GPS-enabled electronic devices. Available customization options include cable length, coaxial cable model and connector type. Our team can work with customers to evaluate antenna dimensions, connection requirements and installation conditions for different product designs.
OEM & ODM Support
OEM and ODM requirements are welcome for project evaluation, sample development and bulk production.
