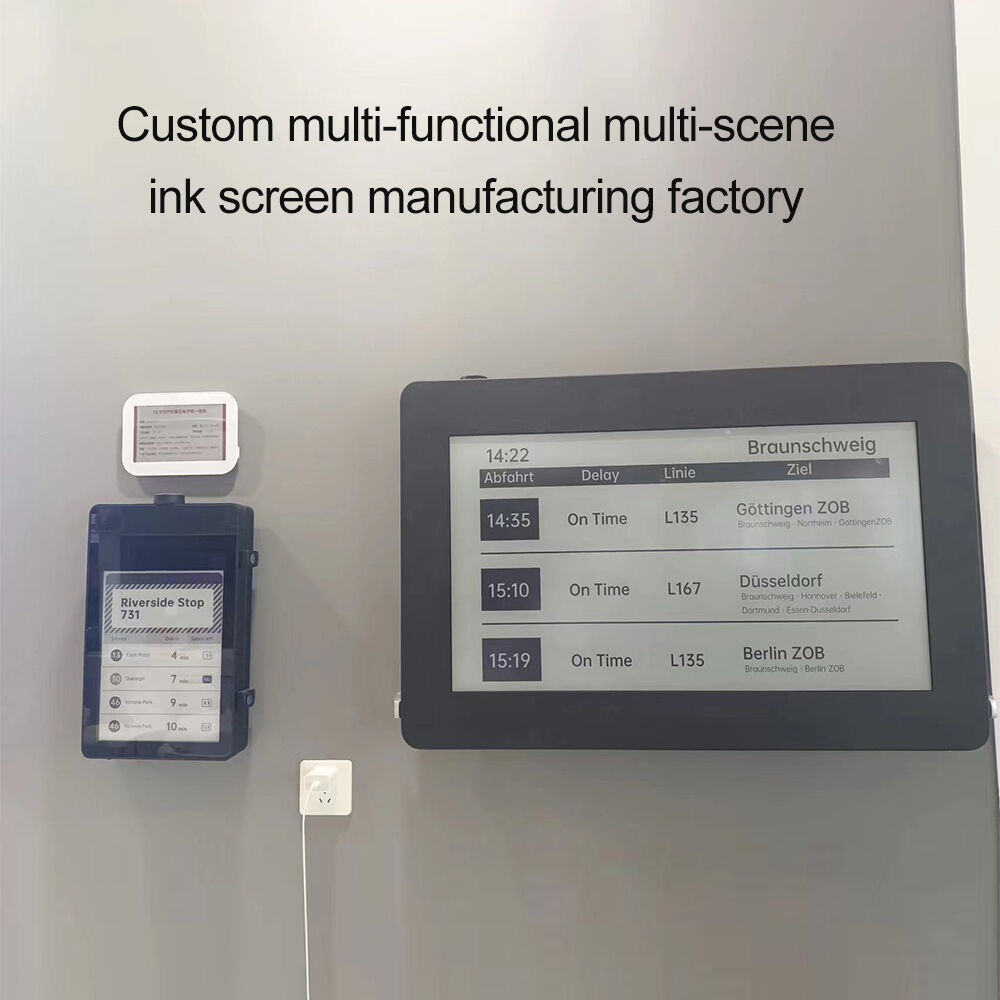

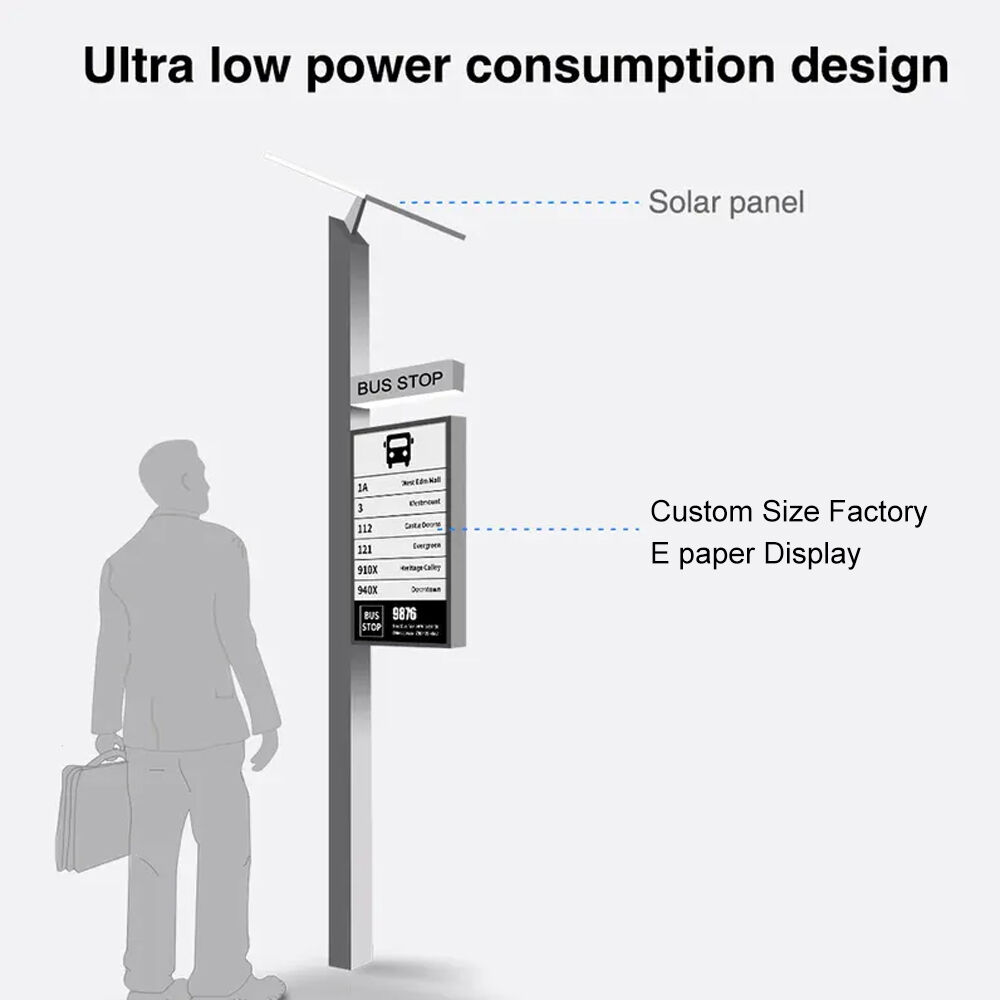

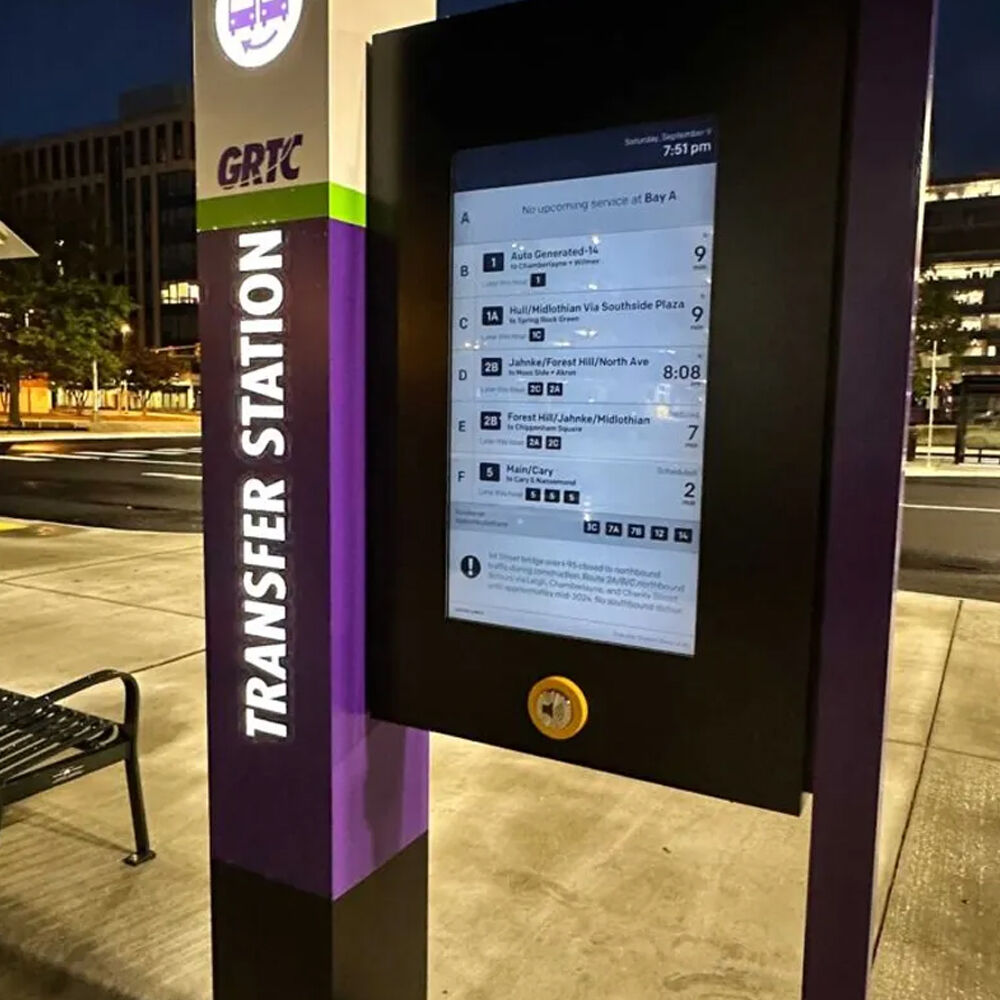

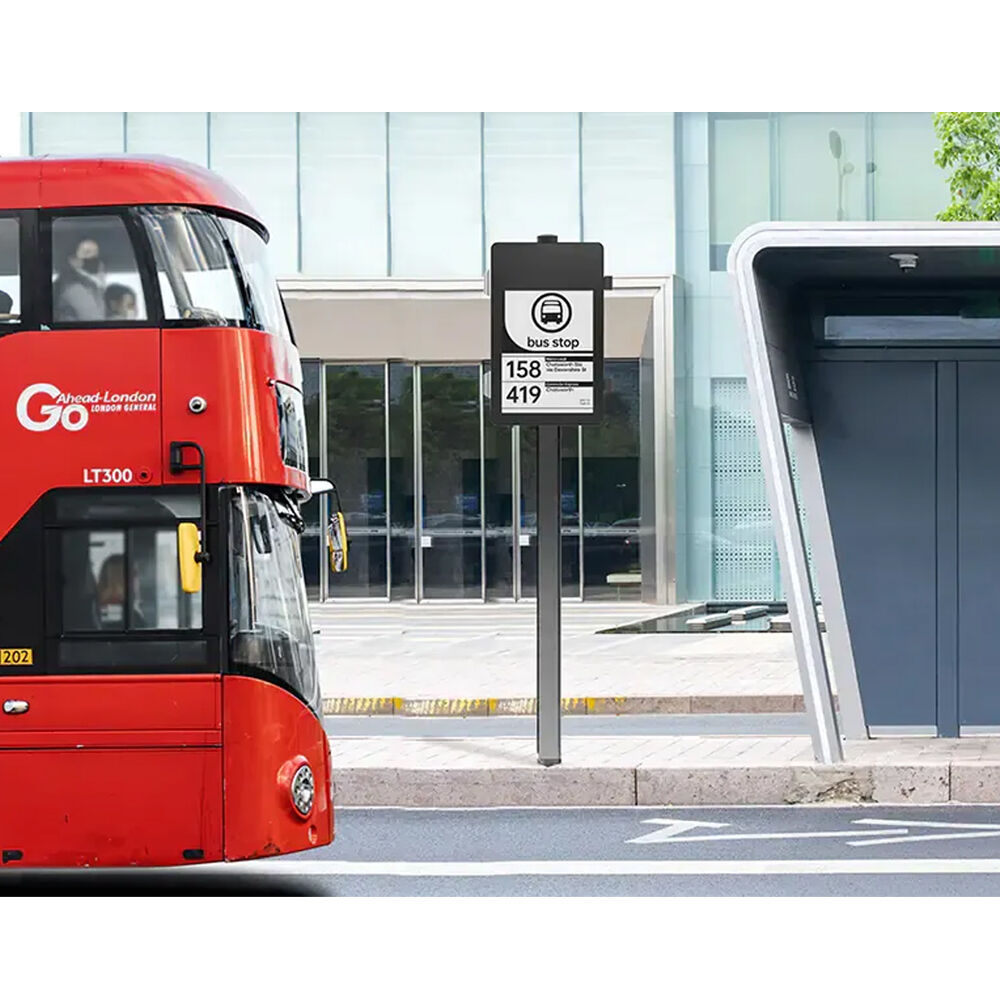

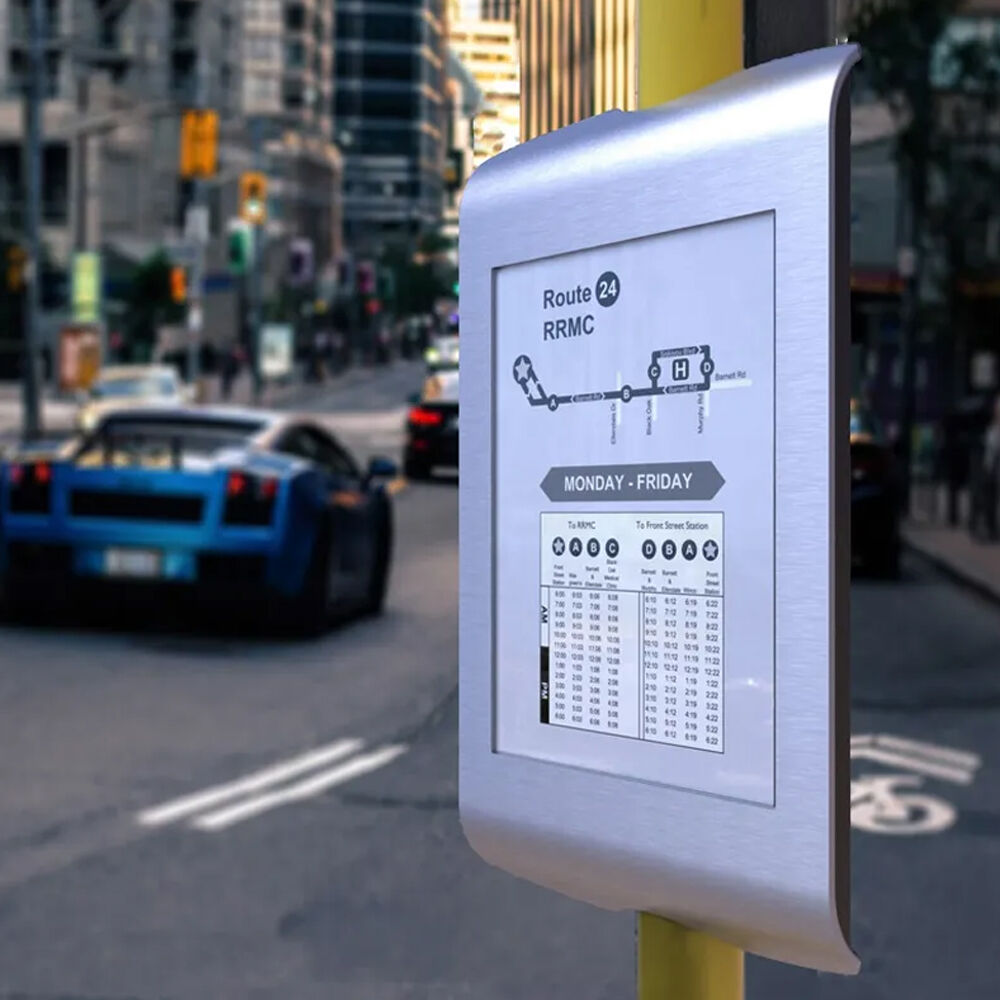

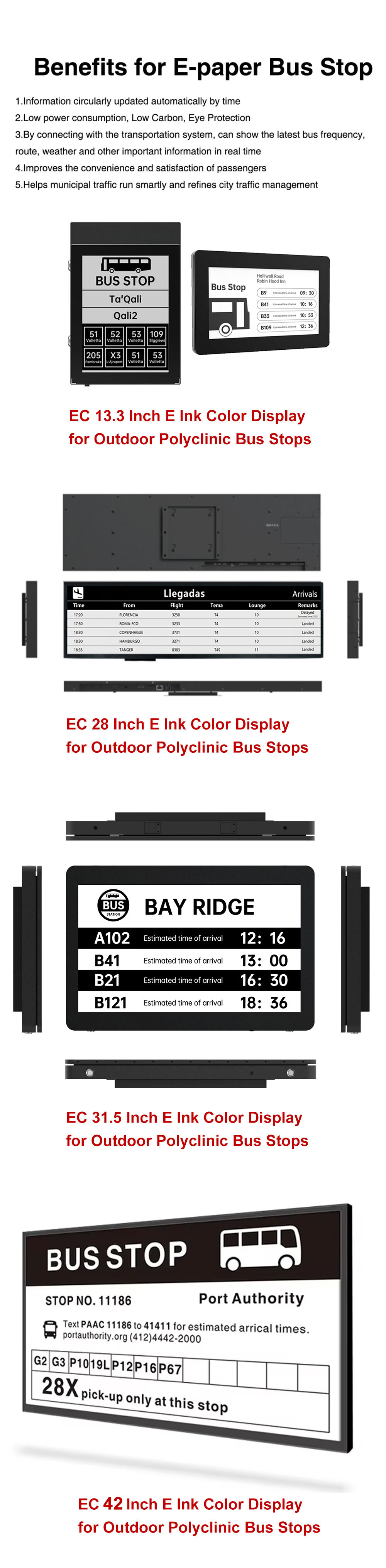

Custom Oem High Quality Ec 42 Inch Digital Signage Solar Powered Bus Stop Display At Bus Shelter Station Epaper E-Ink Technology
Product Information
Key Specifications/ Special Features
Product Specifications
| EC 42 inch Products Specifications | ||
|---|---|---|
| PART NUMBER | DMPH420EC1 | |
| Module parameters | Display Size(diagonal) | 42 Inch |
| Display Screen Type | Black and white E Ink screen Screen | |
| Resolution | 2880x2160 | |
| Display Viewing Area(H*V)(mm) | 642.6x856.8mm | |
| Resolution | 2880x2160 | |
| Aspect Ratio | 16 : 9 | |
| Grayscale | 16 levels of grayscale | |
| System | Whole machine system | Android 7.1 |
| PORT PARAMETERS | USB2.0 | 1HOST, 1 OTG |
| HDMI-OUT | 1 (for internal debugging) | |
| RJ45 | 1 (10M/100M adaptive) | |
| TF | Reserved (maximum expansion of 128GB) | |
| KEY(4-key button) | POWER,UP,DOWN,RESET | |
| Power | Power Supply | 5V Type-C interface |
| Refresh Power | ≤6.1W | |
| Standby Power | ≤0.01W | |
| Built-in Battery | Lithium battery | |
| SOFTWARE PARAMETERS | Image Update Time | 2s |
| Image Update Method | USB or WiFi | |
| Language | Synchronizes with mobile phone language | |
| MOTHERBOARD PARAMETERS | Update Time | ≤15s |
| Update Method | Via USB fash disk, Cloud platform & Android demo App | |
| Dimensions & Weight | WiFi Band | 2.4G |
| Bluetooth | 4.0 (currently does not support Bluetooth image updates) | |
| System | Android 7.1 | |
| CPU | 4-core ARM Cortex A7 | |
| DDR | 1G | |
| EMMC | 8G | |
| Temperature &Humidity | Operating Temperature | 0℃ to 50℃ |
| Storage Temperature: | -25℃ to 70℃ | |
| Operating Humidity | 20% to 90% | |
| SPECIFICATIONS | Weight | Approximately 11.5kg |
| Dimensions | 896.2x682x35.5mm | |
Company Profile
Manufacturing Technique
Exhibition
Certifications
Package & payment
Why Choose Us
FAQ
1： Are you the factory？
Yes we are the original factory have technology team and production line.
2: Do you support OEM and ODM?
Yes, we support OEM and ODM production.
3. Do you support sample？
Yes we support sample for testing the quality.
5.How to get samples?
We are honored to provide you with samples. It is expected that new customers will pay for samples and courier fees.
