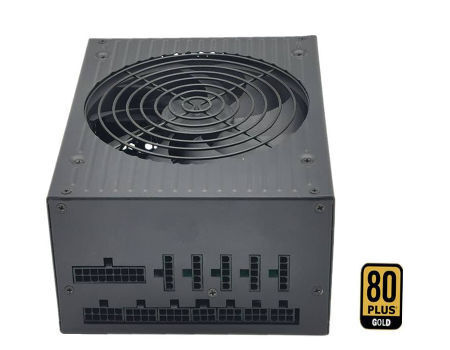

FX-1000W ATX power supply gold certification efficiency

specifications

                  AC Input                               115-230V   8.5-4A   50-60Hz

DC Output +3.3V +5V +12V -12V +5Vsb

Maximum                   22A 22A 83.3A 0.3A 2A

Combined                         145W               1000W 3.6W 10W

Total Output                     1000W

Model: FX-1000W

Type: ATX 12V 2.3 & SSI EPS 12V 2.92

Modular: YES

Dimension: 150(L) x 140(W) x 86(H)

MTBF:           ＞100,000 Hours

Input Voltage: 115-230 VAC

Input Current: 8.5A-4A

Input Frequency Range: 50Hz-60Hz

PFC:            Active PFC

Power Good Signal: 100-500ms

Protection :        OCP / OVP / UVP / SCP / OPP

Certifications: 80 plus gold

Output Capacity: 1000W

Operation Temperature: 0-40°C

Fan:           140 mm black Fan

Connector:

1 x MB 24(20+4) Pin

1 x 8(4+4) Pin EPS 12V

2 x (6+2) Pin PCI-E

4x SATA

4 x Molex

Net Weight: 1.75Kgs

Packing: PE bag & 10pcs/bulk package, brown or white box, retailed color box

VALUED PSU

FX-1000W is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40°C environments.

Efficient, silent, and durable, FX is the best answer for those looking for the best value in PSUs.

ADVANCED CIRCUITRY

FX's LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs,

with an extremely tight 3% voltage regulation to deliver a stabler operation.

OPTIMIZED THERMAL FAN SPEED CONTROL

Using an exclusive 120 mm silent fan, the advanced frame increase the concentration of air flow and its fan

curvature has been fine-tuned to reduce vibration at any loads.

FX-1000W

• 100% Modular – Improves airflow and reduces clutter

• 80 PLUS® Gold certified -Reduce your electricity bill

• A server-class LLC design with a synchronous rectification based on a DC-DC topology

•Best in class protections makes PSU highly resistant to damage: OVP, UVP OPP, SCP, OCP, and input Surge & Inrush Protection

•Intelligent fan speed control, best heat dissipation and mute processing, low noise, stable temperature control performance

•High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance

•ATX 12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
